Appendix B - iDynamo Adapters

iDynamo| MagneSafe Secure Card Reader Authenticator | Technical Reference Manual

Page 19

B.4 iPod Touch 3rd and 4th Generation Adapter Clip (21041053)

The iPod Touch 3rd and 4th Generation adapter is a clip added to the iPhone 3G/3GS adapter, oriented
such that the appropriate iPod Touch generation name is visible (see Figure 4-5).

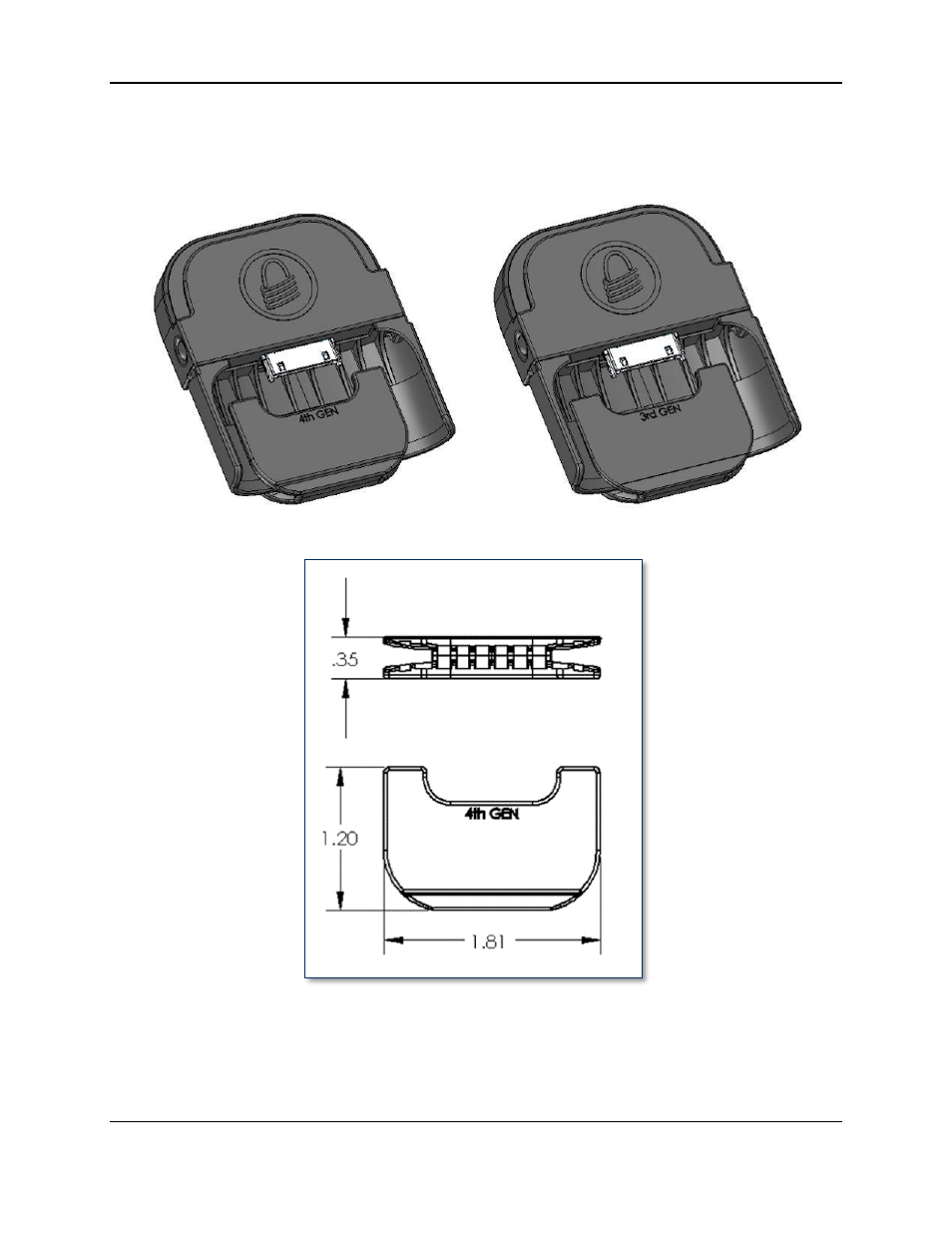

Figure 4-5 – iDynamo with iPhone 3/3GS Sleeve and iPod Touch Clip (3rd and 4th Gen Configurations)

Figure 4-6 - iPod Touch Adapter Clip Dimensions (in inches)
