Appendix B - iDynamo Adapters

iDynamo| MagneSafe Secure Card Reader Authenticator | Technical Reference Manual


Page 20

B.5 iPad 2/3 Adapter Sleeve (21041054)

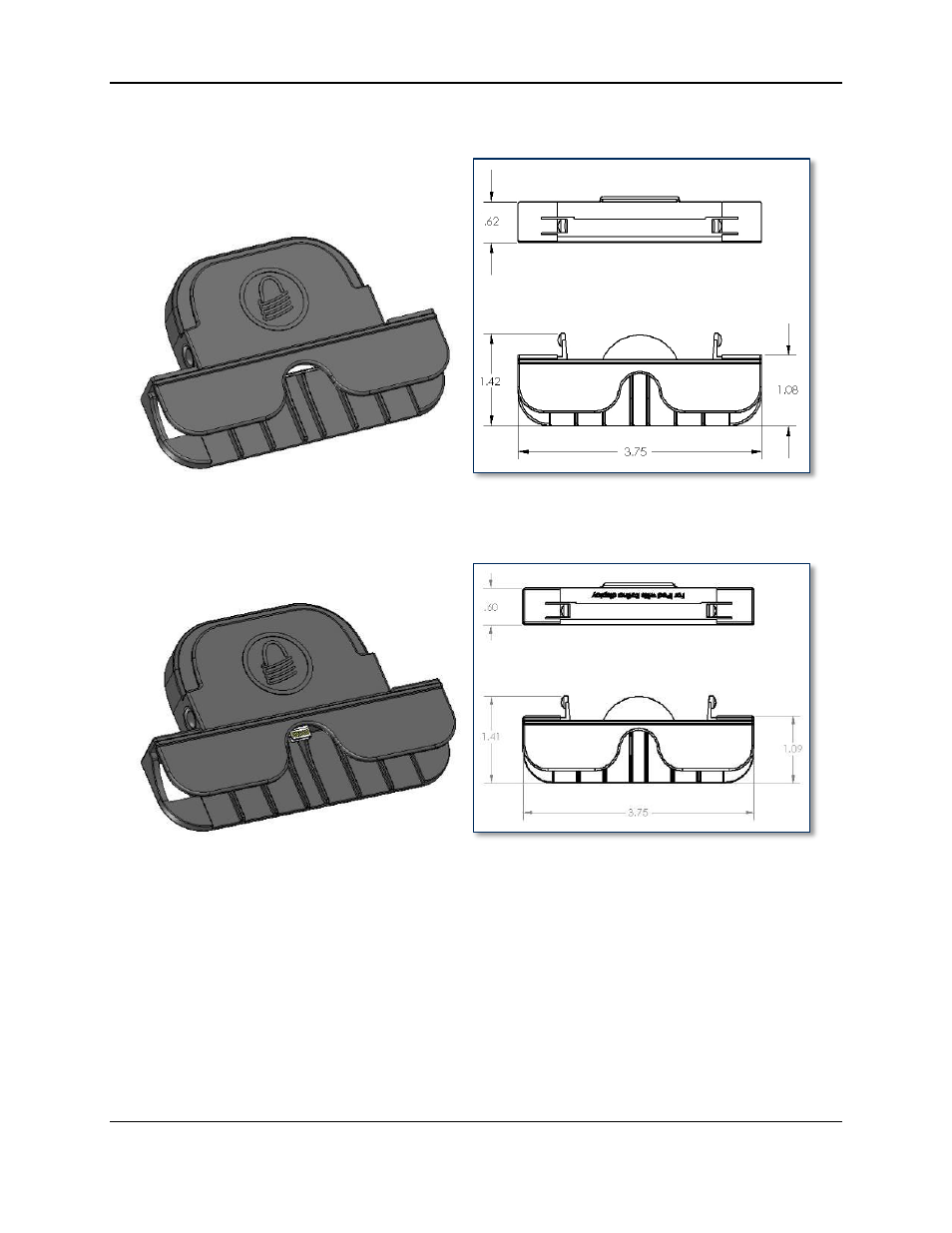

Figure 4-7 – iDynamo with iPad 2/3 Sleeve, Sleeve Dimensions (in inches)

B.6 iPad With Retina Display Adapter Sleeve (21041086)

Figure 4-8 – iDynamo 5 with iPad With Retina Display Sleeve, Sleeve Dimensions (in inches)
