Appendix B - iDynamo Adapters

iDynamo| MagneSafe Secure Card Reader Authenticator | Technical Reference Manual


Page 18

B.2 iPad Adapter Sleeve (21041051)

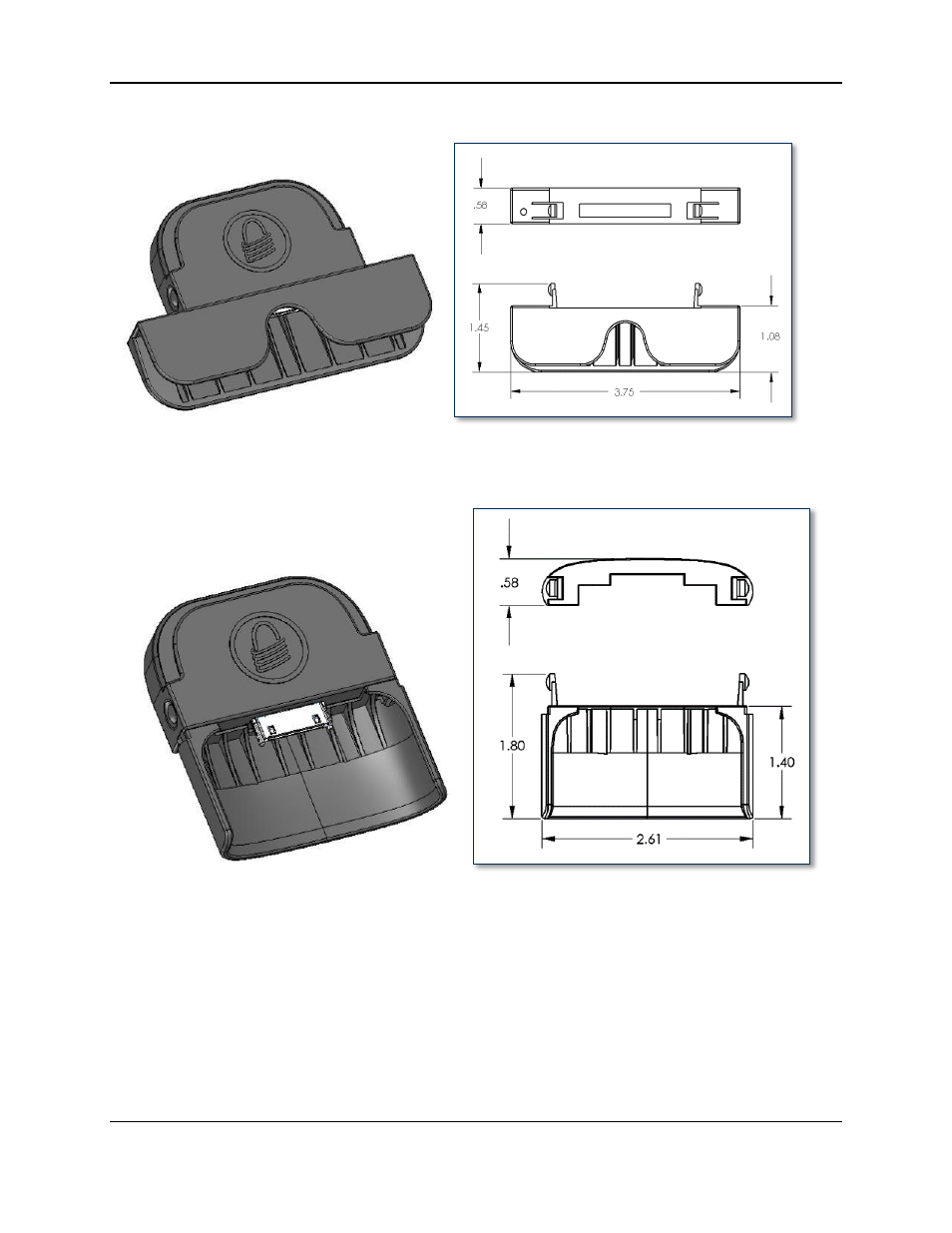

Figure 4-3 – iDynamo with iPad Sleeve, Sleeve Dimensions (in inches)

B.3 iPhone 3G/3GS Adapter Sleeve (21041052)

Figure 4-4 – iDynamo with iPhone 3/3GS Sleeve, Sleeve Dimensions (in inches)
