InSpec 9000-2005 Encoded Card Tester

OVERVIEW

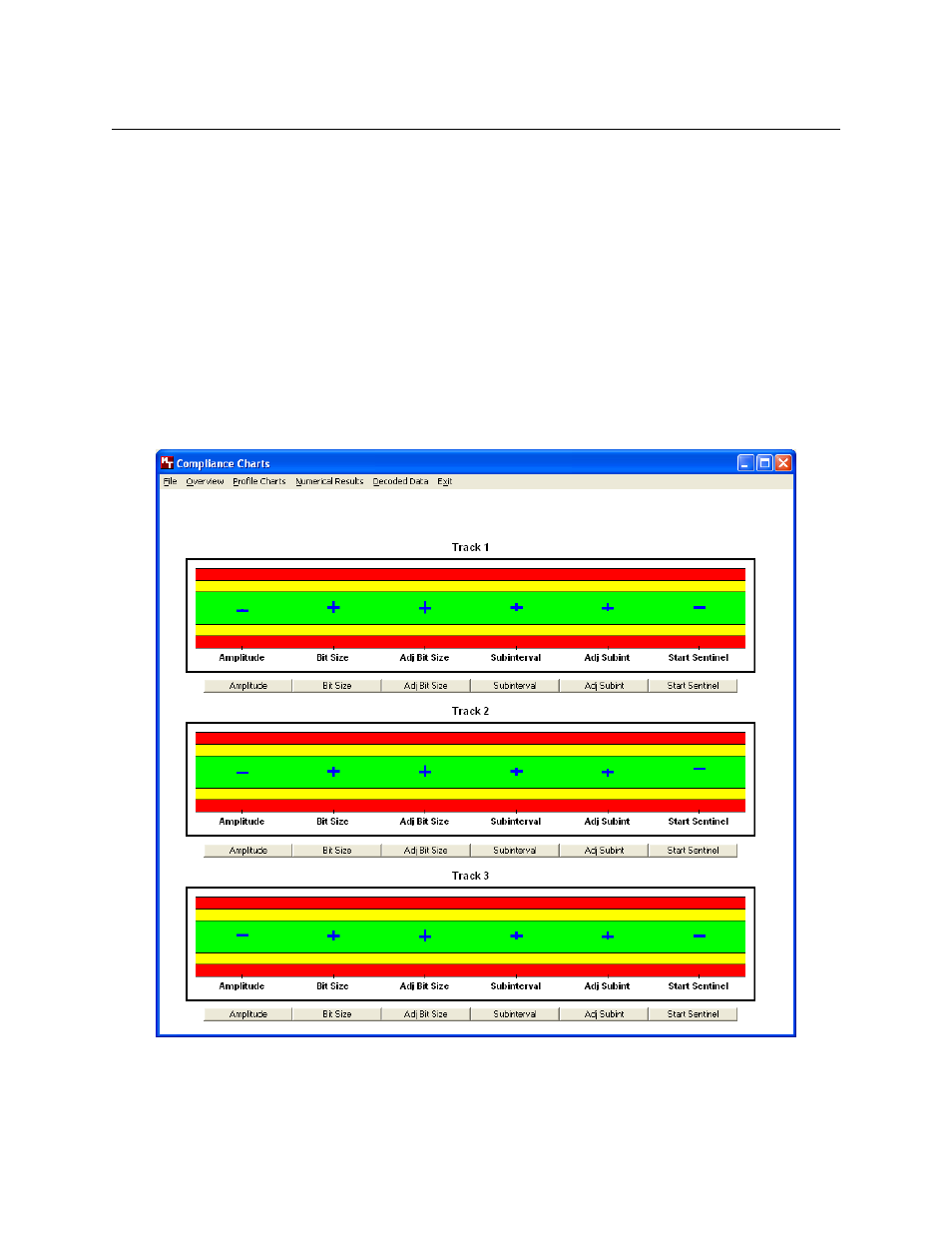

The Overview Chart Figure 4-1 is displayed after the card is read. The green region represents
the new card limits. The yellow region represents the used card limits. The red region represents
exceeding all limits. All of the other compliance charts can be accessed from this screen. If one
of the three tracks is not encoded on a card, no chart will be displayed for that track.

Note

Only the green region, new card limits, represents proportional data. Data in the
yellow or red regions will always be shown at the same location on the chart, no
matter how close or far the data is from the limit. See the numerical results or
profile charts for more detailed results.

Figure 4-1. Overview Chart
