Page 6 DCRE485 0600
For the connection by twisted cable, connect the appliances by means of RJ connector blocks, supplied by the
manufacturer, following these reference tables:

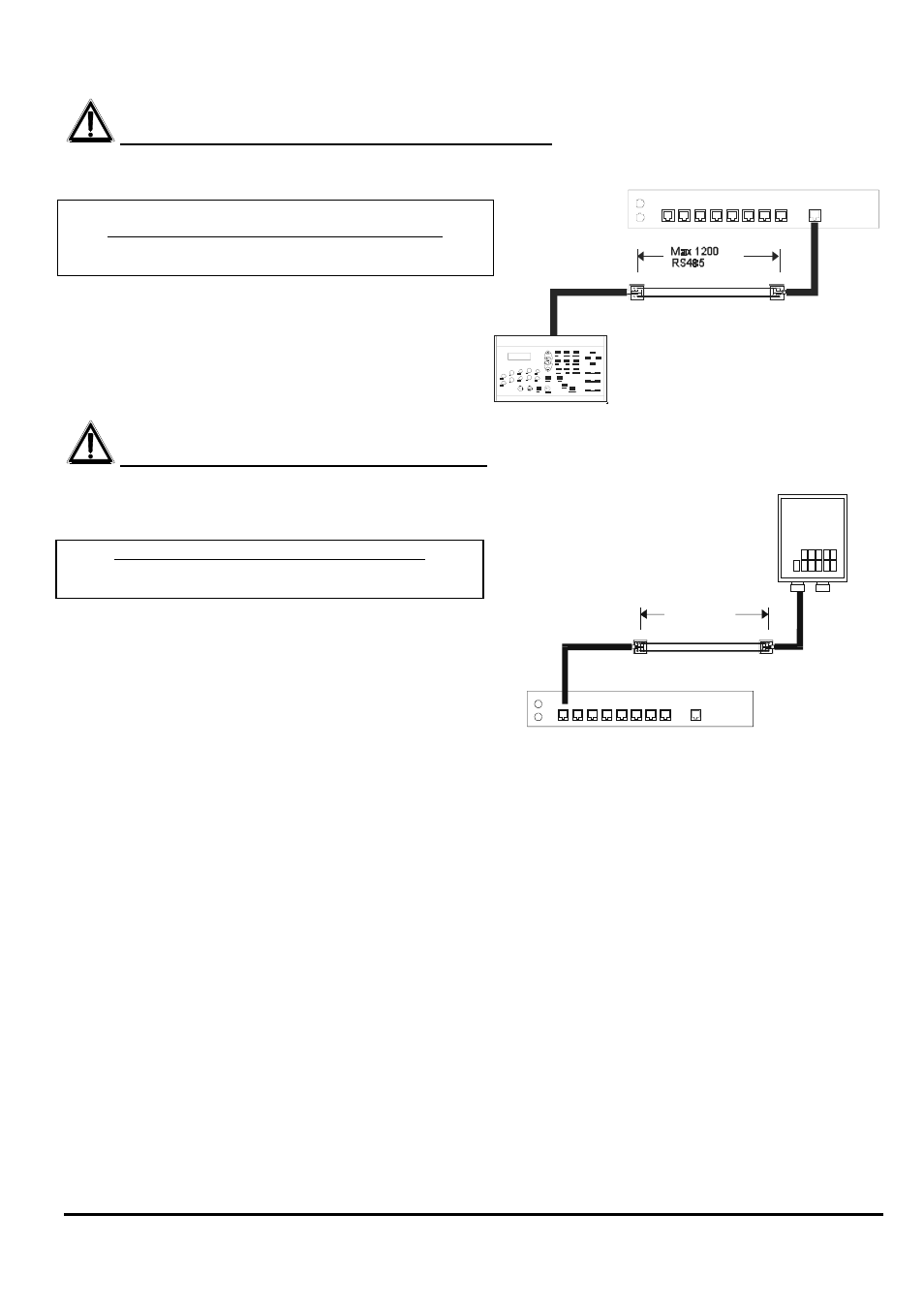

Connection of DCS3 keyboard - DCRE485 distributor
RS485 connection: max distance 1200 m
DCS3 DCRE485
RS485A
White ------------- Blue
RS485A
RS485B
Yellow ------------ Black
RS485B
Connection of DCRE485 distributor - receiver
RS485 connection: max 1200 m
DCRE485 Receivers
RS485A
White------------------------Rx485A
RS485B Yellow ----------------------Rx485B
For the receivers connection to the terminal board refer to the relevant user manuals.
Max 1200
485
RS
DCS3
DCRE485
DCRE485
DTMRX1
