Videotec VIPNX - Manual (Page 7)

EN - English - I
nstruc
tions manual
5

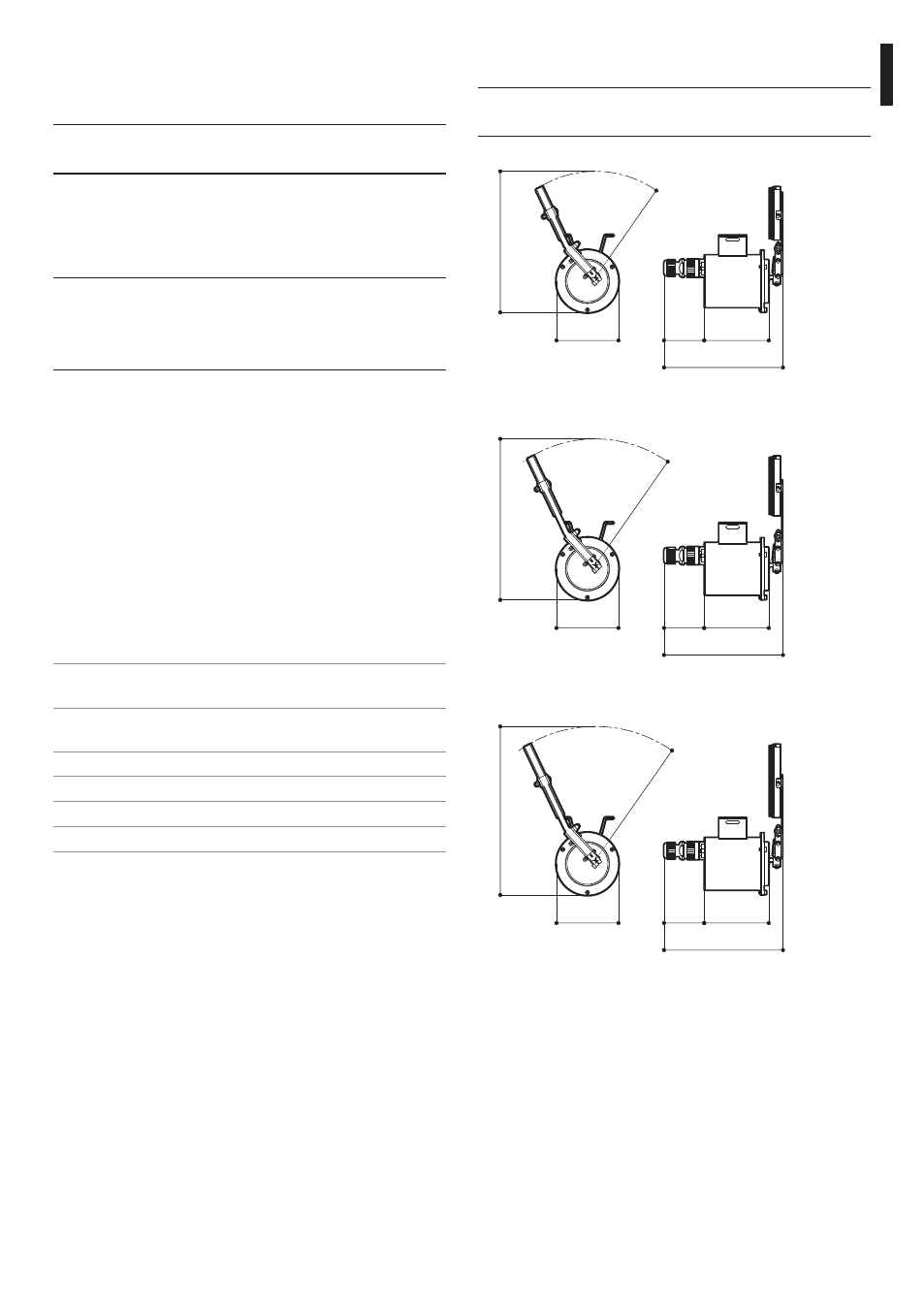

10 Technical drawings
j The values are in millimeters.
65 104
191
100
226
R170
65 104
191
100
258
R202
65 104
191
100
270
R214
Fig. 13 VIPNX
Fig. 14 VIPNXJ
Fig. 15 VIPNXL
7 Instructions for normal
operation
h Do not use the wiper when the outside
temperature is below 0°C or in case of ice.
8 Disposal of waste
materials
n This symbol mark and recycle system
are applied only to EU countries and not
applied to the countries in the other area of
the world.
Your product is designed and manufactured with
high quality materials and components which can be
recycled and reused.
This symbol means that electrical and electronic
equipment, at their end-of-life, should be disposed of
separately from your household waste.
Please dispose of this equipment at your local
Community waste collection or Recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.
9 Technical data
Wiperblade and enclosure constructed from AISI 316
stainless steel
Dimensions (ØxL): 100x169mm (3.9x6.6in), not
comprehensive of blade
Connector 3+1 pins
IN 230Vac, consumption 7W max
IN 24Vac, consumption 7W max
Unit weight: 1.7kg / 3.7lb
IP66/67
