EN - English - I

nstruc

tions manual

4

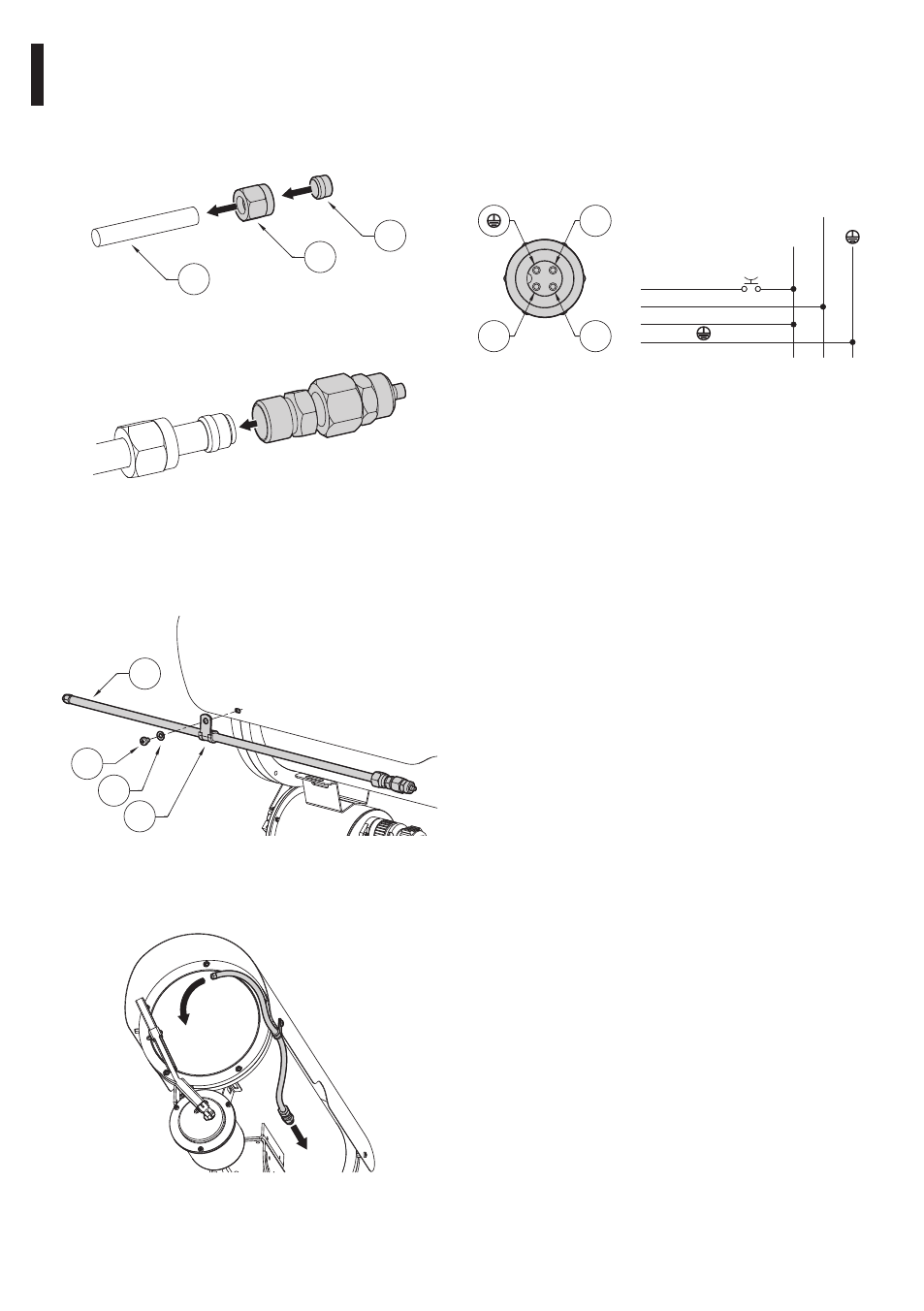

6.1.5 Wiring

Make sure the power supply voltage used is the
same as that shown on the plate on the back of the
appliance.
Make the electrical connections on the female 3+PE
connector as shown in the electrical diagram.

PHASE

NEUTRAL

SWITCH

PERM (01)

COM (02)

SW (03)

EARTH

01

02

03

Fig. 12

Power the wiper by connecting the phase to terminal
03 (SW) on the connector, neutral to terminal 02
(COM) on the connector and earth to the EARTH
terminal.
Use an external button to connect the phase to
terminal 01 (PERM) on the connector.
Keeping the external button pressed will cause
continuous operation (permanent) of the wiper.
Releasing the button will take the wiper blade back to
the rest position on the left of the housing window.
If a receiver is used, connect terminal 03 on the
connector to output SW on the receiver, 01 to PERM
and 02 to COM.
Connect the tube of the water supply system to the
spray nozzle of the wiper blade and fix it using the
plastic hose clamp supply for this purpose.

6.1.4 Installing the optional nozzle kit
(only for NXL housing)

Undo the nut (01) from the coupling, insert it into
the pipe (02) and insert the end of the pipe on the
nosecap (03).

02

01

03

Fig. 08

Lock the nut to the coupling.

Fig. 09

Remove one of the 2 sunshield fastener screws (01)
located on the front of the housing. Slide the tube
(02) inside the clip (03) and use the screw (01) and
washer (02) to fasten in place.

01

04

03

02

Fig. 10

To adjust the jet direct the nozzle towards the glass of
the housing.

Fig. 11
