8-13: Assembly drawings and Parts lists
CMX-20

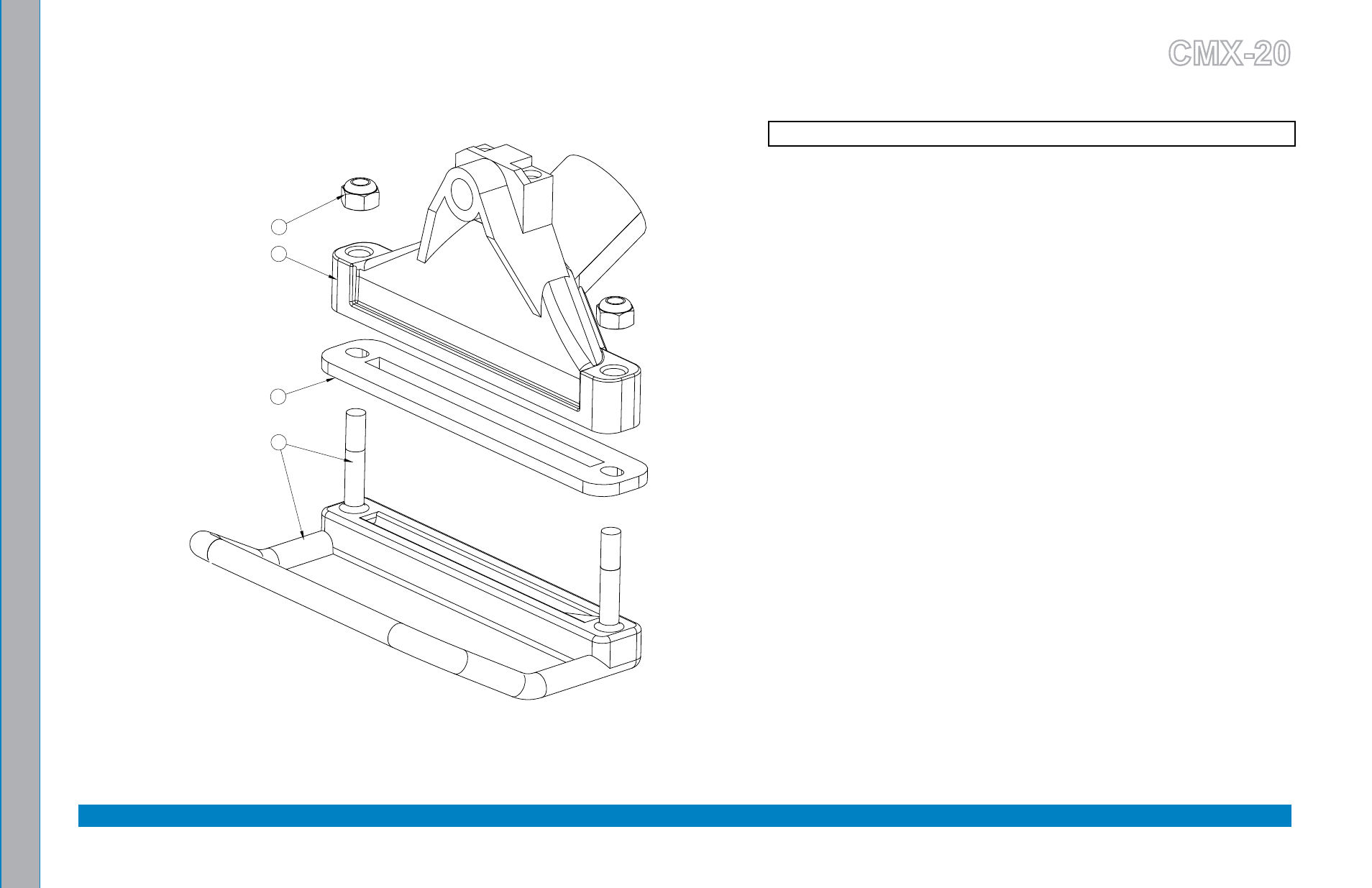

Vacuum Shoe and Skid Assembly
figure 8-9.
6386
4
1
2
3
1
000-064-011
Shoe, 4” Vac head - Weldment
1
2
000-057-048
gasket, Vacuum head
1
3
000-107-245
Skid
1
4
000-094-058
Nut, #10-32UNf - Nylock
2
Vacuum Shoe and Skid Assembly Parts List
Item
Part Number
Description
qty
