Assembly drawings and Parts lists: 8-8
CMX-20
4
5
2
5
1
3
2
1
6
4
6

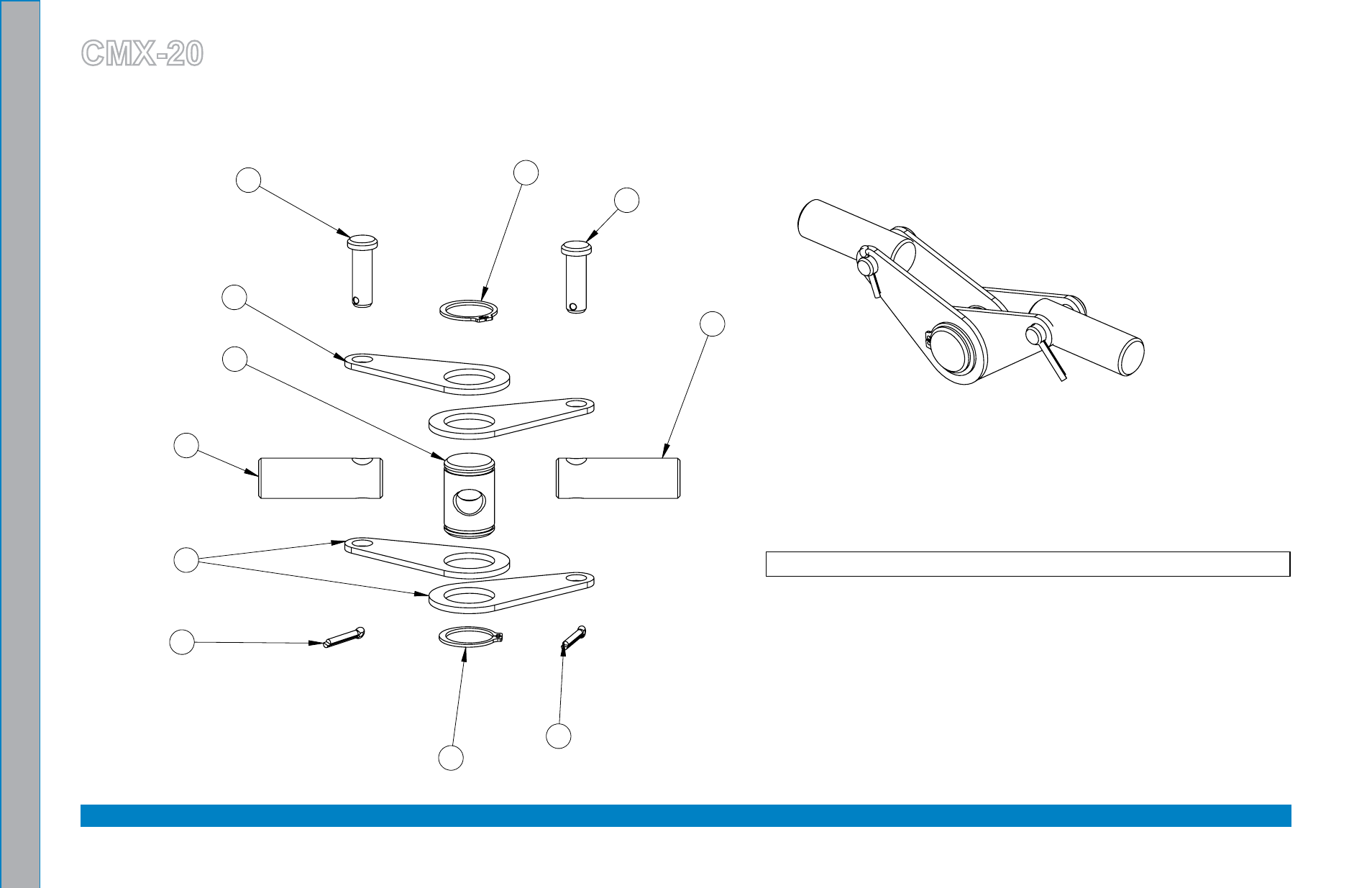

Handle Locking Linkage Assembly figure 8-5.
6390 Rev. A
Handle Locking Linkage Assembly Parts List
Item Part Number Description qty
1 000-107-097 link 4
2 000-107-256 Plunger 2
3 000-094-030-07 Nut, Adjusting, linkage - handle locking 1
4 000-139-006 Ring, 5/8 Snap 2
5 000-103-012 Pin, 1/4 X 7/8” - Clevis 2
6 000-103-013 Pin, Cotter 2
