8-3: Assembly drawings and Parts lists
CMX-20

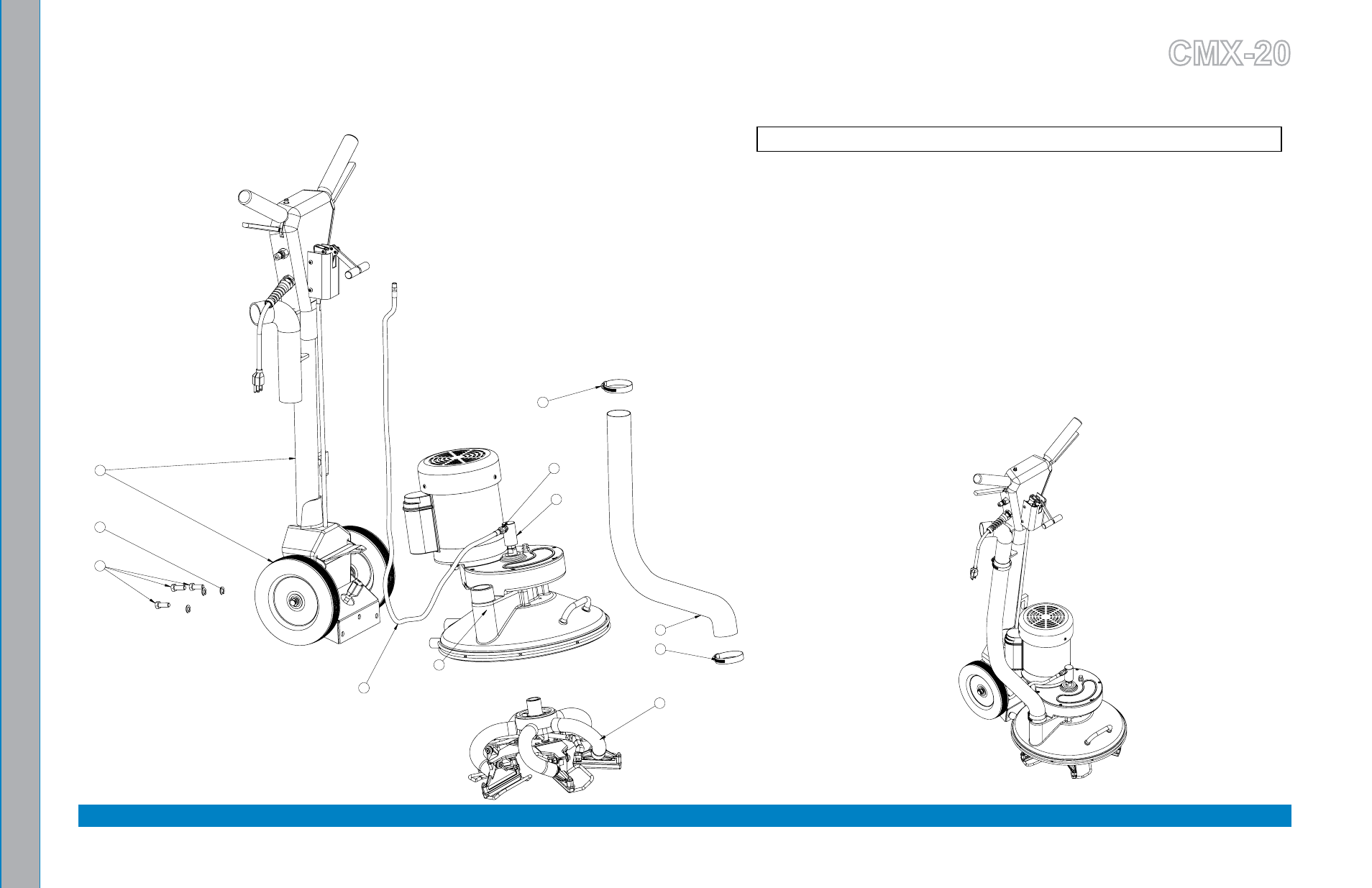

final Assembly figure 8-1.
6393 Rev. C final Assembly Parts List
Item Part Number Description qty
1 604-053-002 Assembly, Vacuum head 1
2 -- Assembly, Upper and lower handle 1
3 -- Assembly, base and drive Train 1
4 000-174-057 Washer, 3/8” lock 3
5 000-143-096 Screw, 3/8”-16UNC X 1.00” lg. hex head 3
6 000-068-176 hose, 3/16” X 47” w/ Inserts 1
7 000-068-040 hose, 2” Vacuum - base To Manifold 1
8 000-033-010 Clamp, #32 hose 2
9 000-052-294 Union, Rotary 1
10 000-052-001 fitting, Swivel (2M2-2 UfS) 1
8
3
6
1
8
7
4
2
5
9
10
120 V Version Shown here
