U.S. Products CMX-20 ROTARY EXTRACTOR - Manual (Page 39)

8-9: Assembly drawings and Parts lists
CMX-20

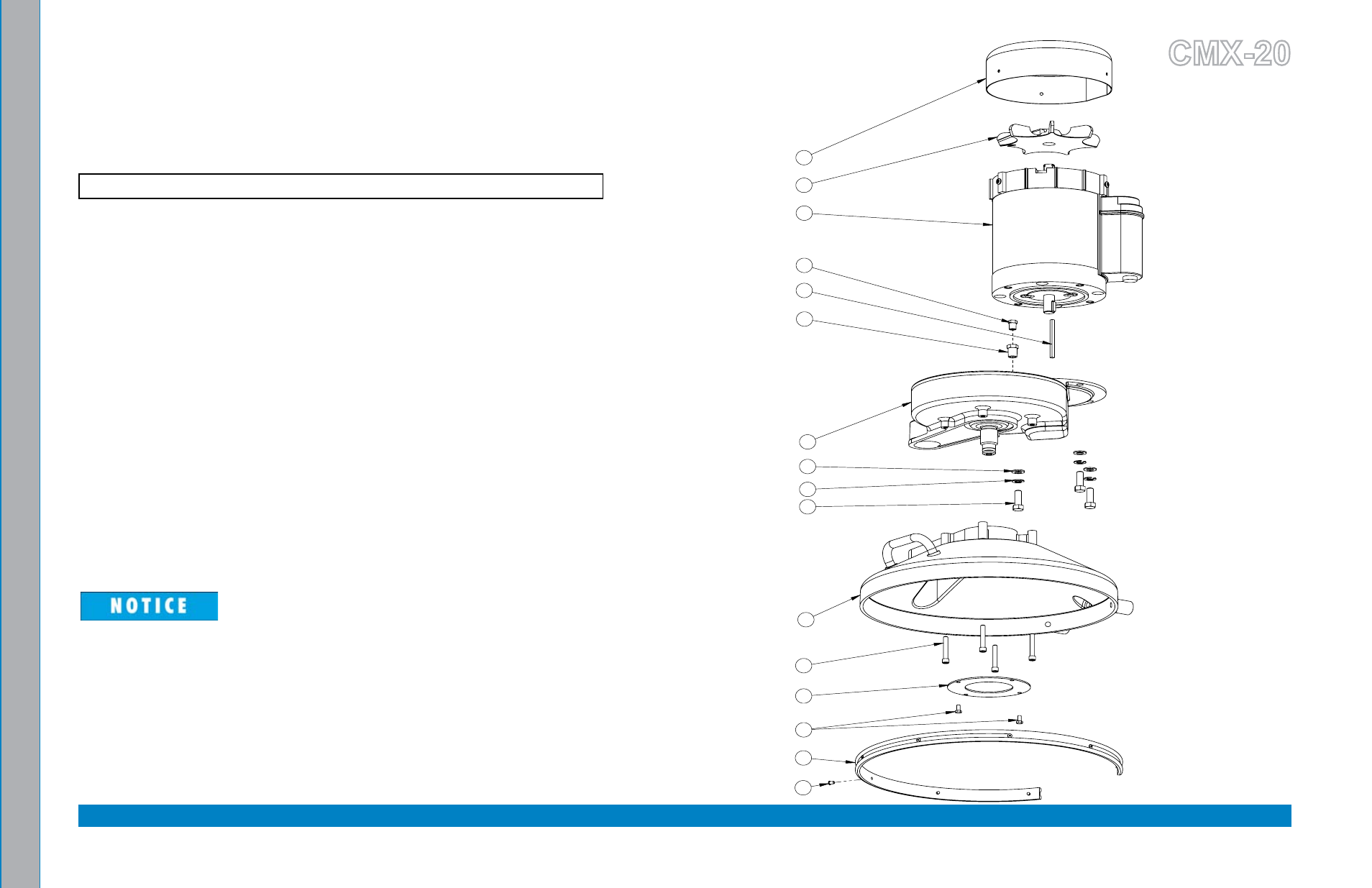

Base and Drive Train Assembly figure 8-6.
6392 Rev. C
Base and Drive Train Assembly Parts List
Item Part Number Description qty
1 000-105-008 Plate, Seal 1
2 000-059-001 gear box - Complete 1
3 000-006-009 base w/ handle - Weldment 1
4 000-091-015 Motor, 1/2 hP TEfC-h/S (120 V Version) 1
000-091-016 Motor, 1/2 hP TEfC-22 (230 V Version) 1
5 000-052-059 bushing, 1/4” MPT X 1/8” fPT 1
6 000-106-001 Plug, 1/8” NPT* 1
7 000-174-057 Washer, 3/8” lock 3
8 000-174-055 Washer, flr Tech latch Pivot 3
9 000-143-096 Screw, 3/8”-16UNC X 1.00” lg. hex head 3
10 000-143-075 Screw, 1/4”-20UNC X 1.50” lg. Socket head 4
11 000-143-166 Screw, #10-24UNC X 3/8” lg. hex head 2
12 000-131-014 gasket, Roto Shroud 1
13 000-040-003 Rivet, 1/8” X 5/16” 8
14 000-050-002 fan, Motor 1
15 000-077-012 Key, 3/16” X 2.5” lg. Class 2 fit 1
16 000-041-122 Cover, 1/2 hP TEfC Motor 1
* Prior to operating the machine, replace the shipping plug (P/N 000-106-001)
with the vented plug (P/N 000-106-014). See page 3-1 in this manual for more
information.
13
12
11
1
10
3
9
7
8
2
15
4
14
16
5
6
