7-1: Electrical diagrams

CMX-20

7- Electrical diagrams

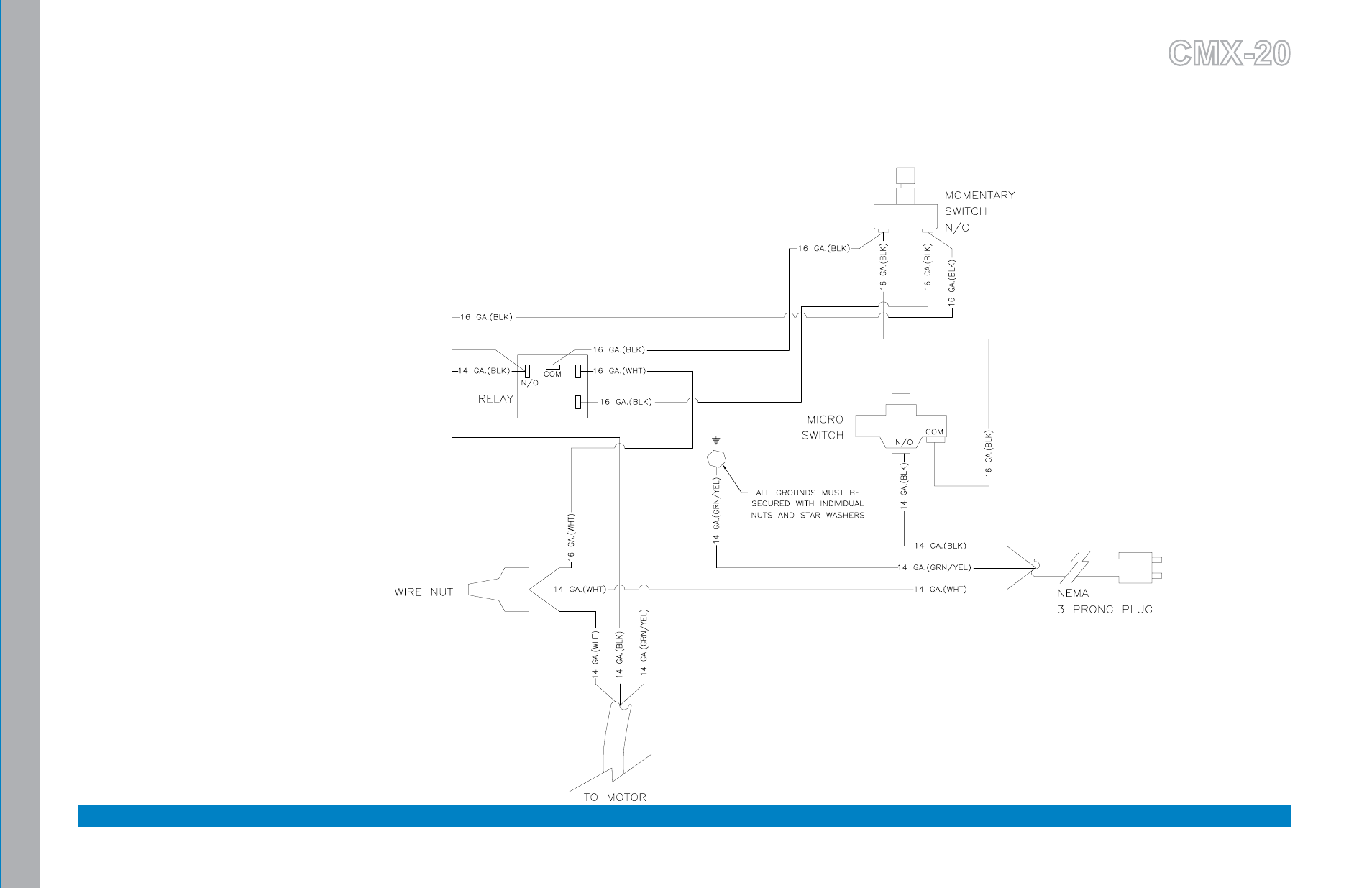

Wiring Diagram - 120 V, 60 Hz

figure 7-1.
6037
