Chapter 4 Device Information
The web user interface window is divided into two
frames, the main menu (at left) and the display
screen (on the right). The main menu has several
options and selecting each of these options opens
a submenu with more selections.
NOTE: The menu items shown are based upon
the configured connection(s) and user account
privileges. For example, if NAT and Firewall are
enabled, the main menu will display the NAT and
Security submenus. If either is disabled, their
corresponding menu(s) will also be disabled.
Device Info is the first selection on the main menu
so it will be discussed first. Subsequent chapters
will introduce the other main menu options in
sequence.

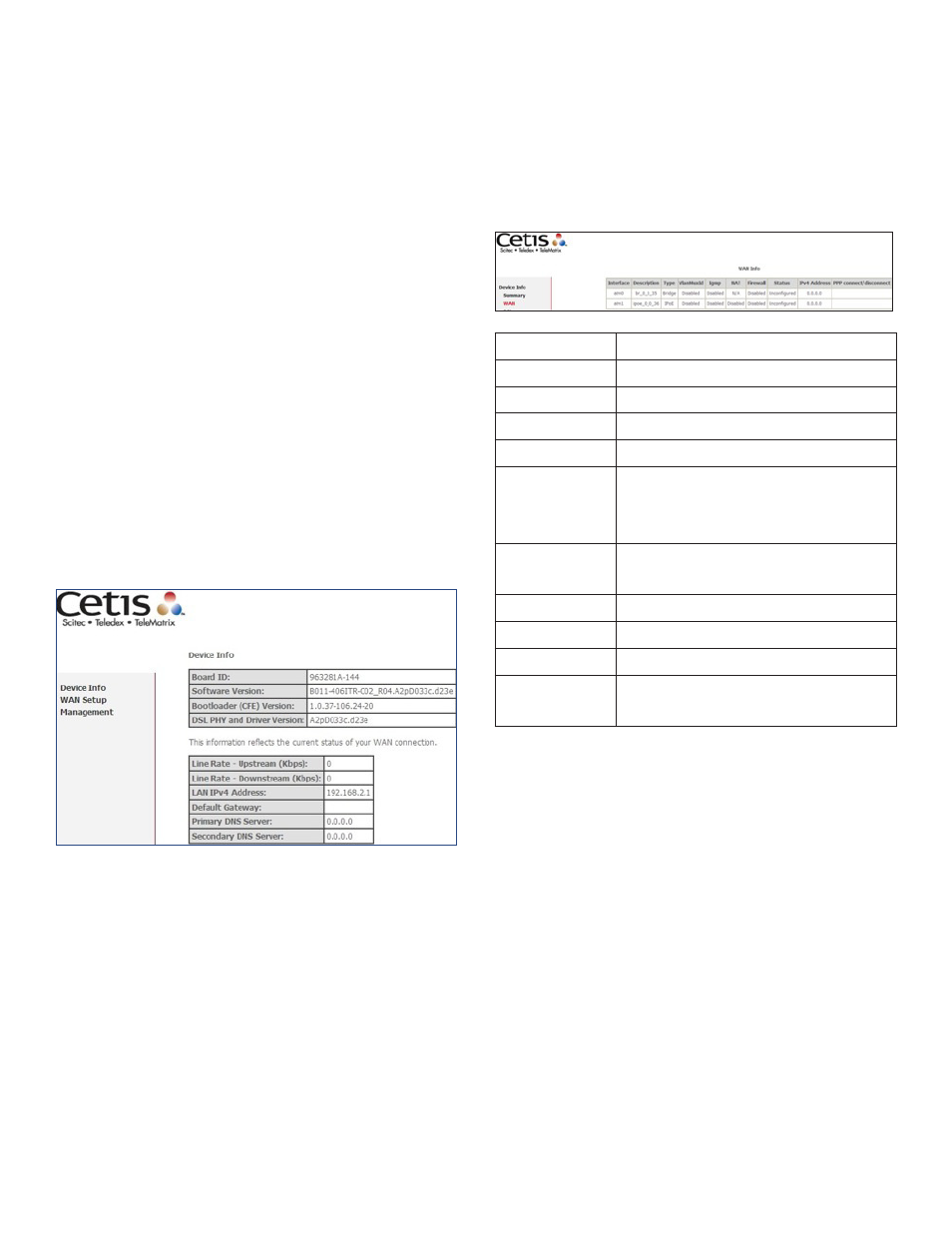

The Device Info Summary screen displays at
startup.
This screen shows hardware, software, IP
settings, and other related information.
4.1 WAN
Select WAN from the Device Info submenu to
display the configured PVC(s).
Heading Description
Interface Name of the interface for WAN
Description Name of the WAN connection
Type Shows the connection type
VlanMuxId Shows 802.1Q VLAN ID
IGMP Shows Internet Group
Management Protocol (IGMP)
status
NAT Shows Network Address
Translation (NAT) status
Firewall Shows the status of firewall
Status Lists the status of DSL link
IPv4 Address Shows WAN IPv4 address
PPP Connect/
Disconnect
Shows the PPP connection
status
4.2 Statistics
NOTE: These screens are updated automatically
every 15 seconds. Click
Reset Statistics to
perform a manual update.
