8 www.teledex.com Y SERIES EXP100 USER GUIDE
3.3 Login Procedure
Perform the following steps to login to the web
user interface.
NOTE: The default settings can be found in
3.1 Default Settings.
STEP 1:
Start the Internet browser and enter
the DHCP awarded IP address in the
Web address field. For example, if
the default IP address is 192.168.2.1,
type http://192.168.2.1.
NOTE: For local administration (i.e., LAN
access), the PC running the browser must be
attached to the Ethernet, and not necessarily to
the device. For remote access (i.e., WAN), use
the IP address shown on the Chapter 4 Device
Information screen and login with remote
username and password.

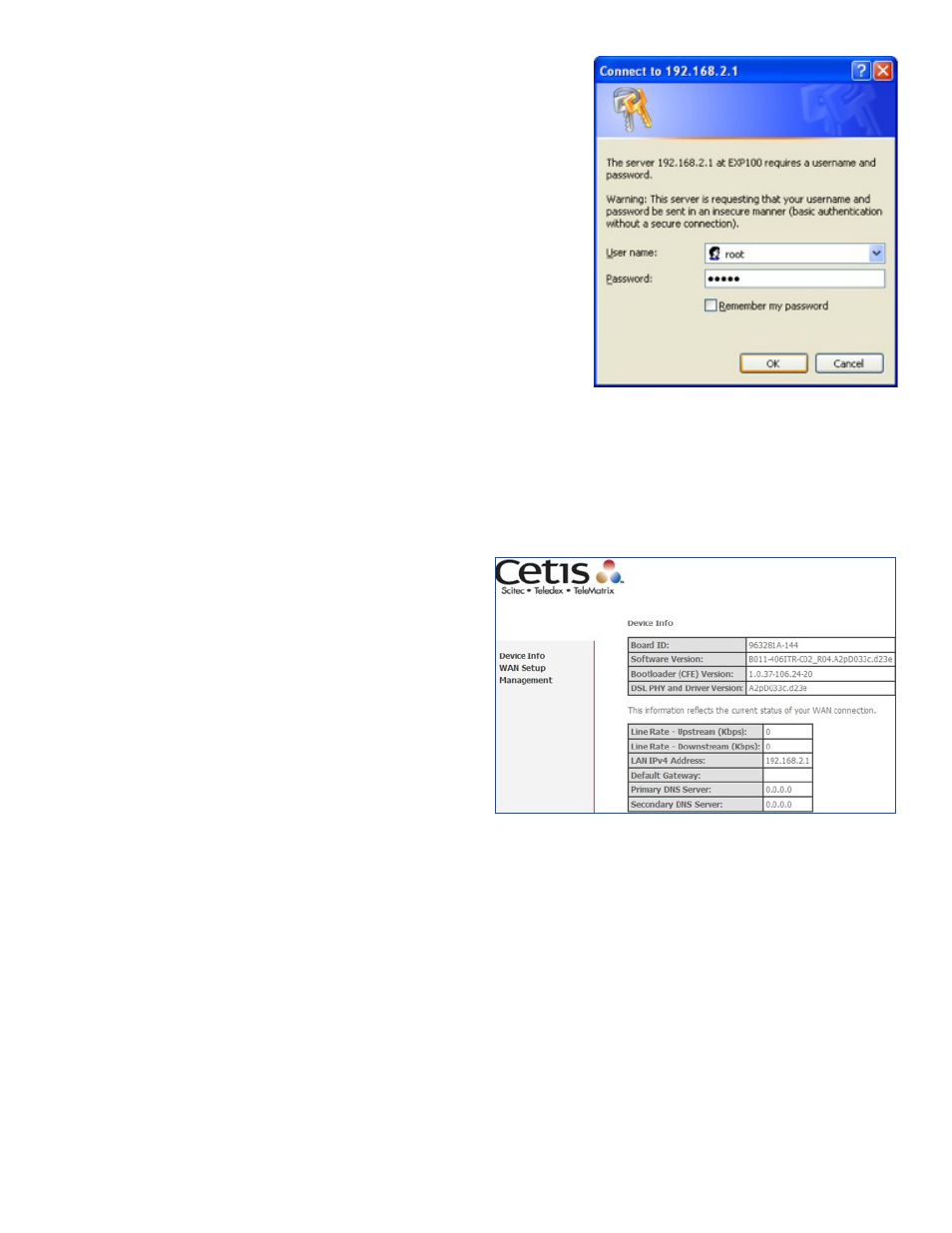

STEP 2: A dialog box will appear, such as
the one below. Enter the default
username and password, as defined
in section 3.1 Default Settings.
Click OK to continue.
NOTE: The login password can be changed later
(see 6.5 Passwords).
STEP 3:
After successfully logging in for the
first time, you will reach this screen.
