MegaRUM PCI Motherboard User’s Guide
32
Step 10 Connect I/O,
Continued

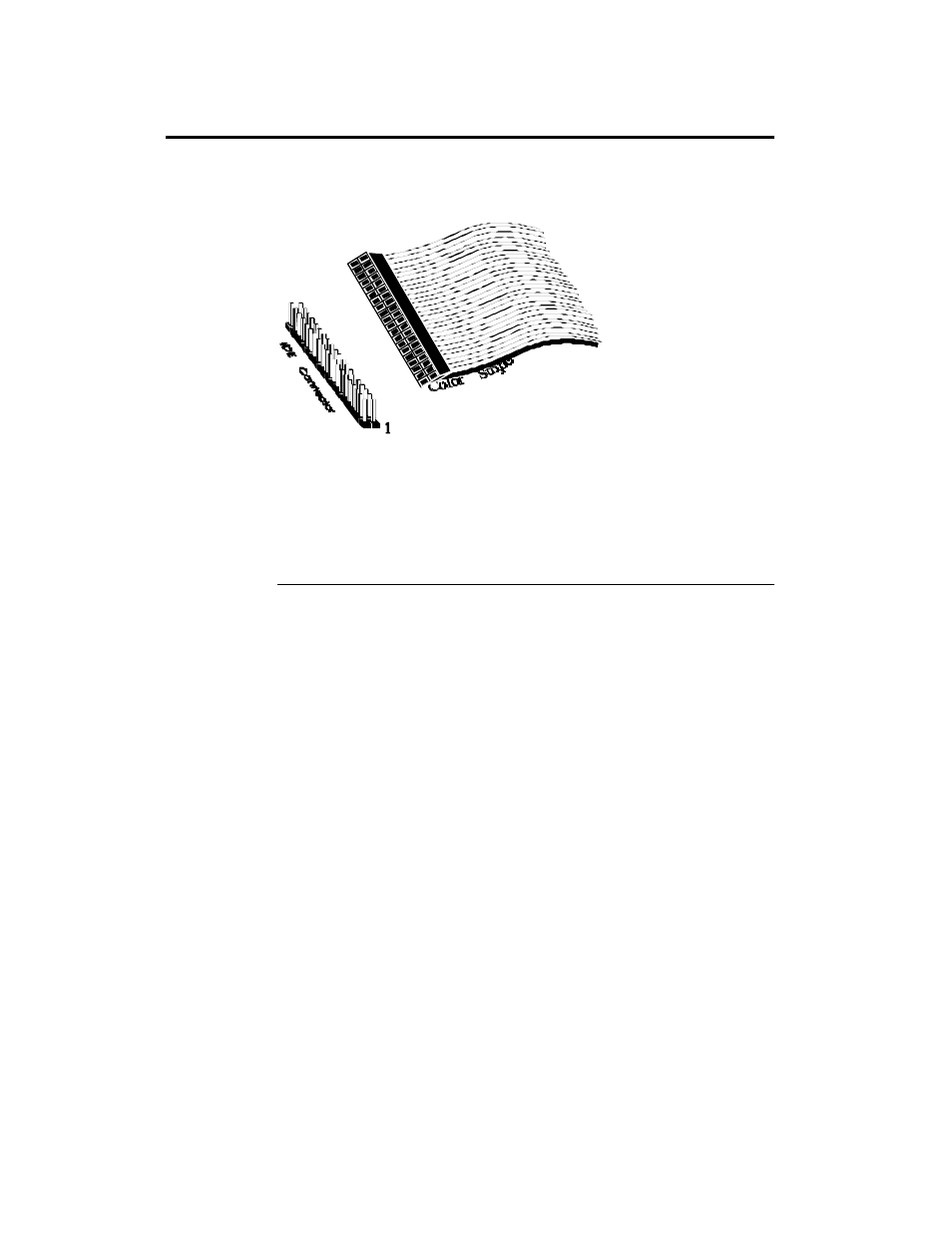

Attach IDE Cable to J10 J10 is the primary IDE (Integrated Drive Electronics) hard disk drive
connector. Both the primary master and the primary slave IDE drives must be
connected by cable to J10, as shown below.
J10 is a 40-pin dual-inline berg that connects an IDE drive to the primary
onboard IDE connector. This motherboard supports IDE Modes 0, 1, 2, 3, and
4, IDE prefetch, LBA (Logical Block Address) mode, high capacity drives (over
528 MB), 32-bit data transfer, and fast IDE transfer. These IDE features are
configured in Peripheral Setup in the WINBIOS Setup utility.
Disable the onboard IDE interface in Peripheral Setup to use an ISA ESDI, RLL,
MFM, or SCSI hard disk drive controller.
Cont’d
