MegaRUM PCI Motherboard User’s Guide 26
Step 9 Attach Cables, Continued

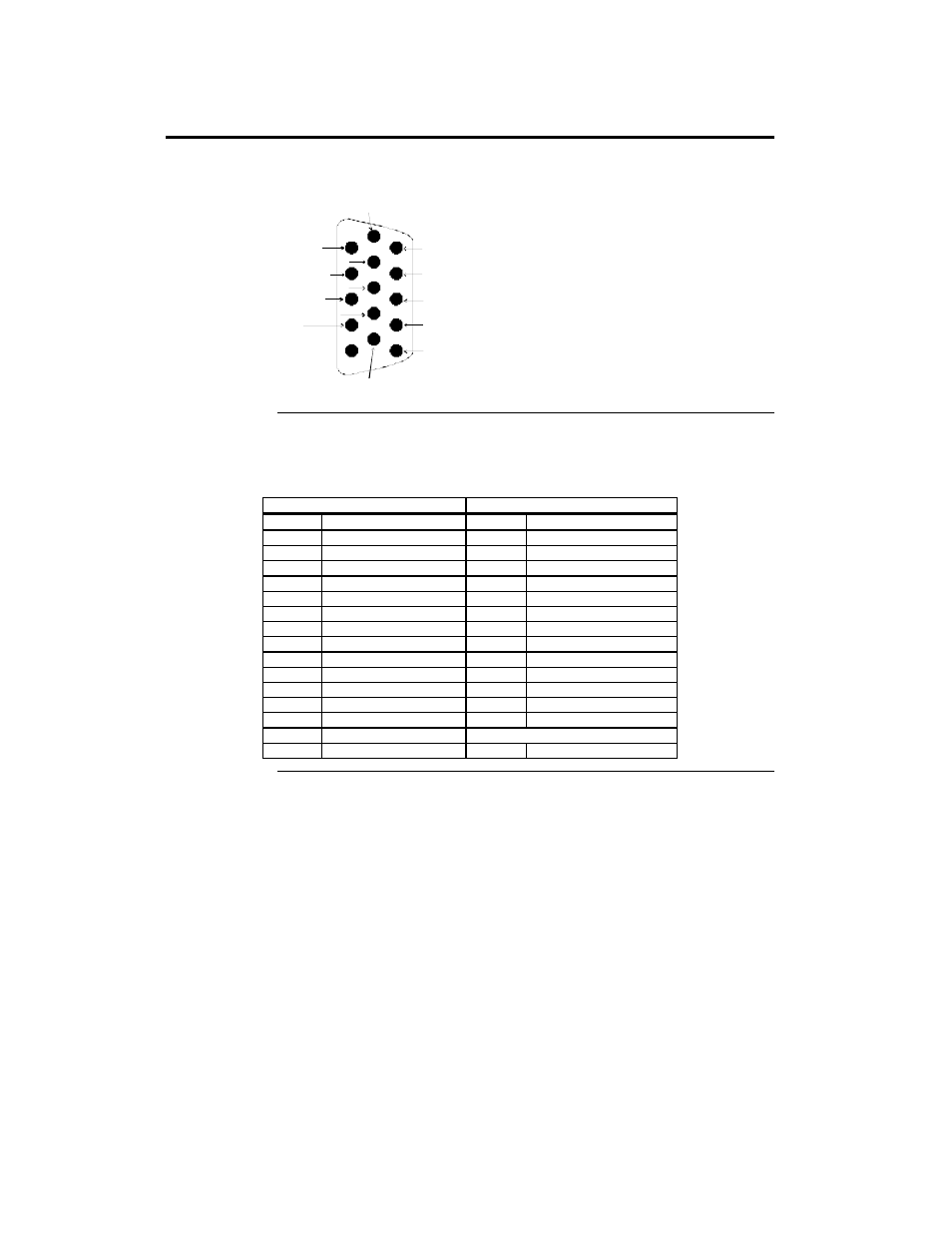

Standard VGA Connector The pinout for the standard female DB15 VGA connector is shown
below:
P in 1 R ed
P in 2 G r een
P in 3 B lu e
P in 4
P in 5 G r ou nd
P in 1 0 G r ou nd
P in 6 G ro un d
P in 7 G ro und
P in 8 G ro un d
P in 9 F us e
P in 11
P in 1 2 M O N ID 1
P in 1 3 H S Y N C
P in 1 4 V S Y N C
P in 15 M O N ID 2
Stan dar d VGA Female Con nector
J16 VGA Connector and Standard VGA The connections on the VGA cable that has a standard
DB15 female VGA connector and a 14-pin berg connector at the other end are
shown below:
J16 Standard VGA Connector
Pin Signal Pin Signal
1 Red 1 Red
2 Green 2 Green
3 Blue 3 Blue
4 VSYNC 14 VSYNC
5 HSYNC 13 HSYNC
6 MONID1 12 MONID1
7 MONID2 15 MONID2
8 Ground 6 Ground
9 Ground 7 Ground
10 Ground 8 Ground
11 Fuse 9 Fuse
12 Ground 5 Ground
13 Ground 10 Ground
14 Pin is Cut N/A
N/A N/A 4, 11 Unused
