Getting to know your appliance

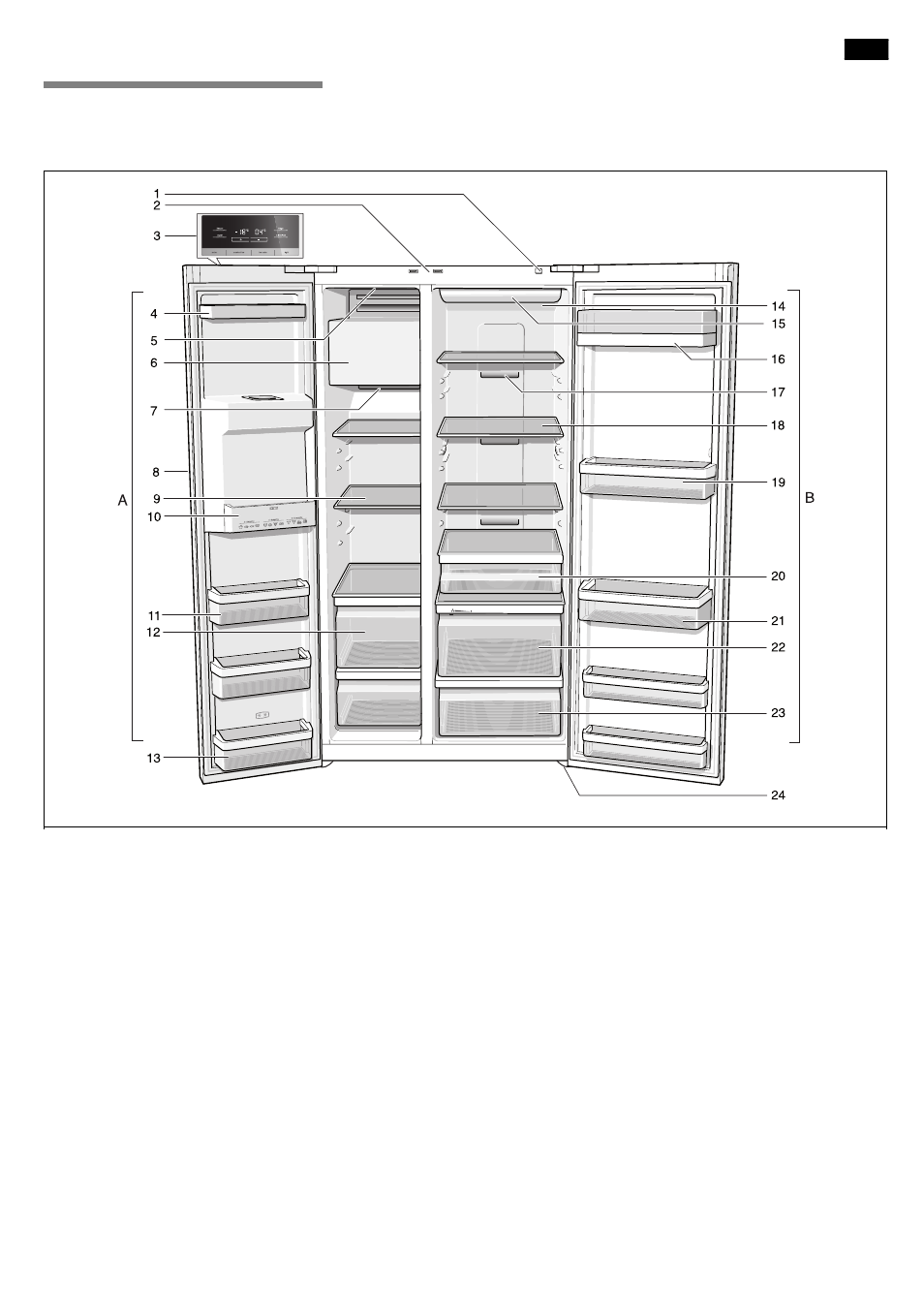

These operating instructions refer to several models. The diagrams may differ.
A Freezer compartment
can be selected from -14 °C
to -24 °C
B Refrigerator compartment
can be selected from +2 °C to +8 °C
1 On/Off button
2 Light switch for refrigerator
and freezer compartments
3 Control and display panel
4 Door storage compartment
5 On/Off switch ice maker
6 Ice maker/Ice cube container
7 Air outlet openings
8 Ice and water dispenser
9 Glass shelves in freezer
compartment
10 FrozenĆfood calendar
11 Door storage compartment
12 Freezer drawer
13 Door storage compartment
(2Ćstar compartment)
for shortĆterm storage of food
and ice cream.
14 Particle filter/Water filter
15 Light, refrigerator compartment
16 Butter and cheese compartment
17 Air outlet openings
18 Glass shelves in refrigerator
compartment
19 Door storage compartment
20 Delicatessen drawer
21 Door storage compartment
for large bottles
22 Vegetable compartment
with humidity filter
23 Vegetable container
24 HeightĆadjustable feet
