14 | Quick Start Guide

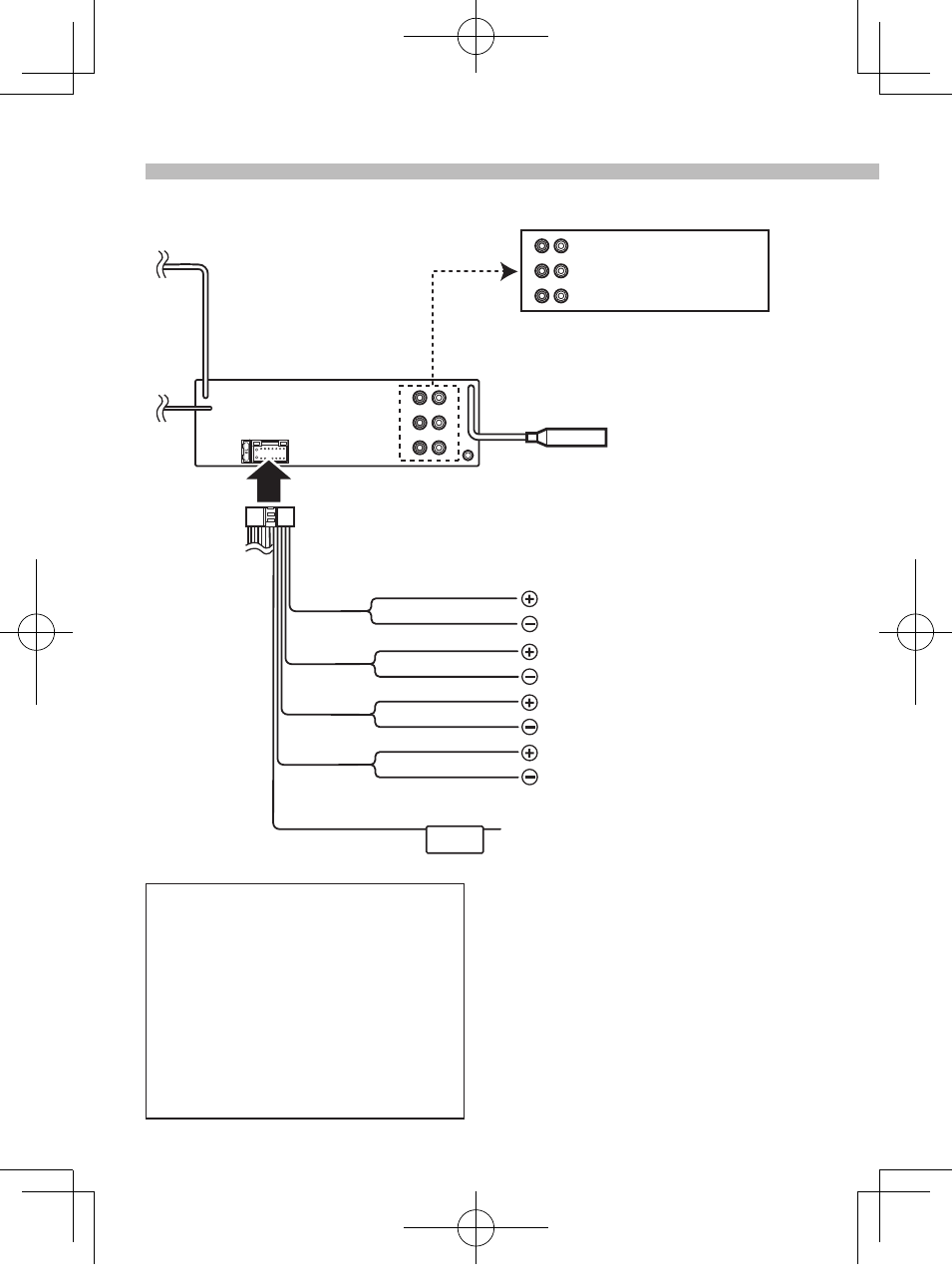

3 way speaker system setup
White/Black
Gray/Black
Green/Black
Purple/Black
White
Gray
Green
Purple
To MID Range left speaker
To MID Range right speaker
To right Tweeter
To left Tweeter
Wiring harness
(Accessory1)
Mid Range output
Woofer output
Tweeter output
¤
Select a crossover mode according to
how the speakers are connected. Refer
to <2-Way/3-Way Crossover Setting>
(page 15).
If you select a wrong mode:
• The speakers can break.
• The output sound level may be
extremely low.
Connect the speaker wires
⁄ For how to connect speaker wires
to terminals other than speaker
terminals and Preout terminals, see
(page 12).
Blue/White
(Power control wire)
When using the optional power amplifier,
connect this wire to its power control
terminal.
⁄ If no connections are made, do not
let the wire come out from the tab.
