10 | Quick Start Guide

WARNING

If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit,
that in turn may start a fire. Always connect
those wires to the power source running
through the fuse box.

• Mounting and wiring this product

requires skills and experience. For safety’s
sake, leave the mounting and wiring work
to professionals.

• Make sure to ground the unit to a

negative 12V DC power supply.

• Do not install the unit in a spot exposed

to direct sunlight or excessive heat or
humidity. Also avoid places with too
much dust or the possibility of water
splashing.

• Do not use your own screws. Use only

the supplied screws. Using wrong screws,
could damage the unit.

• If the power is not turned ON (“Protect”

is displayed), the speaker wire may have
a short-circuit or touched the chassis of
the vehicle and the protection function
may have been activated. Therefore, the
speaker wire should be checked.

• If your car’s ignition key switch does

not have an ACC position, connect the
ignition wires to a power source that can
be turned on and off with the ignition
key. If you connect the ignition wires to
a constant-voltage power source, as with
battery wires, the battery may die.

• If the console has a lid, make sure to

install the unit so that the faceplate will
not hit the lid when it is closed or opened.

• If the fuse blows, first make sure the wires

are not touching other parts to cause a
short circuit, and then replace the old fuse
with one with a new the same rating.

• Insulate unconnected wires with vinyl

Before Installation

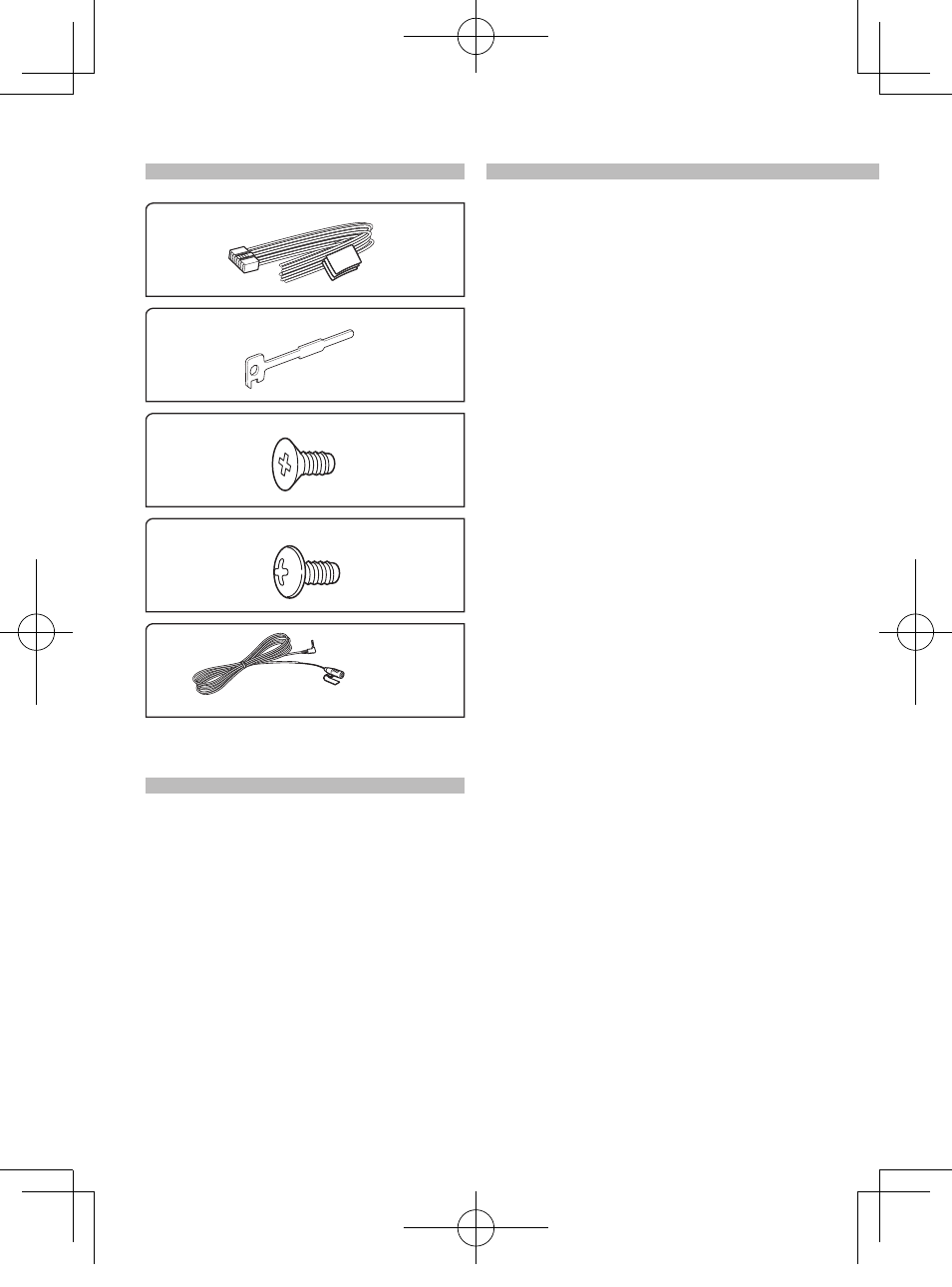

Accessories

Installation Procedure

.....1

.....2

.....4

.....1 (3m)

1. To prevent a short circuit, remove the key

from the ignition and disconnect the -
battery.

2. Make the proper input and output wire

connections for each unit.

3. Connect the speaker wires of the wiring

harness.

4. Connect the wiring harness wires in the

following order: ground, battery, ignition.

5. Connect the wiring harness connector to

the unit.

6. Install the unit in your car.
7. Reconnect the - battery.
8. Press the reset button.
