6
SUPER SUPER SUPER SUPER SUPER TECHNICS 350 SA TECHNICS 350 SA TECHNICS 350 SA TECHNICS 350 SA TECHNICS 350 SA
POS. A
POS. B
B
а
а
A

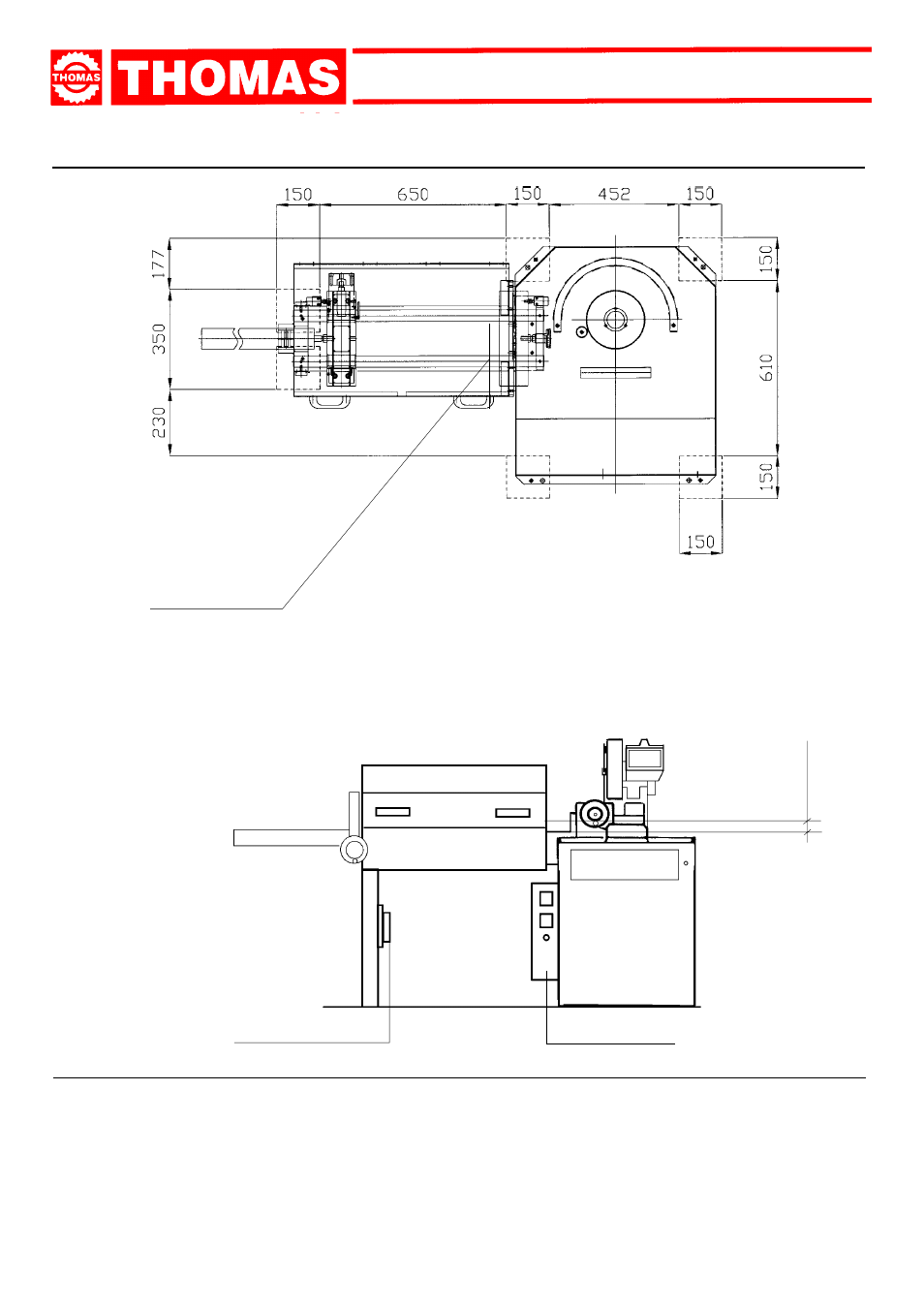

- Position the machine on a firm cement floor, maintaining, at the rear, a minimum distance of 1000 mm from the wall; anchor it to the
ground as shown in the diagram, using screws and expansion plugs or tie rods sunk in cement, ensuring that it is sitting level.
- Adjust with a calibrated bar the level between the machine vice bed and the input roller by means of the screws located on the
supporting leg of the feeding system. The feeding system level should be 0.1- 0.2mm higher than the machine vice bed.
4.4 - Anchoring the machine
4.5 - Feeding system alignment
- The feeding system can be mounted to the machine base in two different positions:
POSITION A : allows mitre cutting 45° right and left. This is the position recommended to cut solid and shapes material up to 60
mm diameter.
POSITION B : allows rectangle cutting up to 160x90mm. (max.)
ATTENTION: make sure that the material supporting rollers are correctly aligned to the machine working table level.
ELECTRIC BOX PNEUMATIC VALVE
0,1-0,2 mm
а
