Dake Model Super Technics 350SA User Manual

Page 29

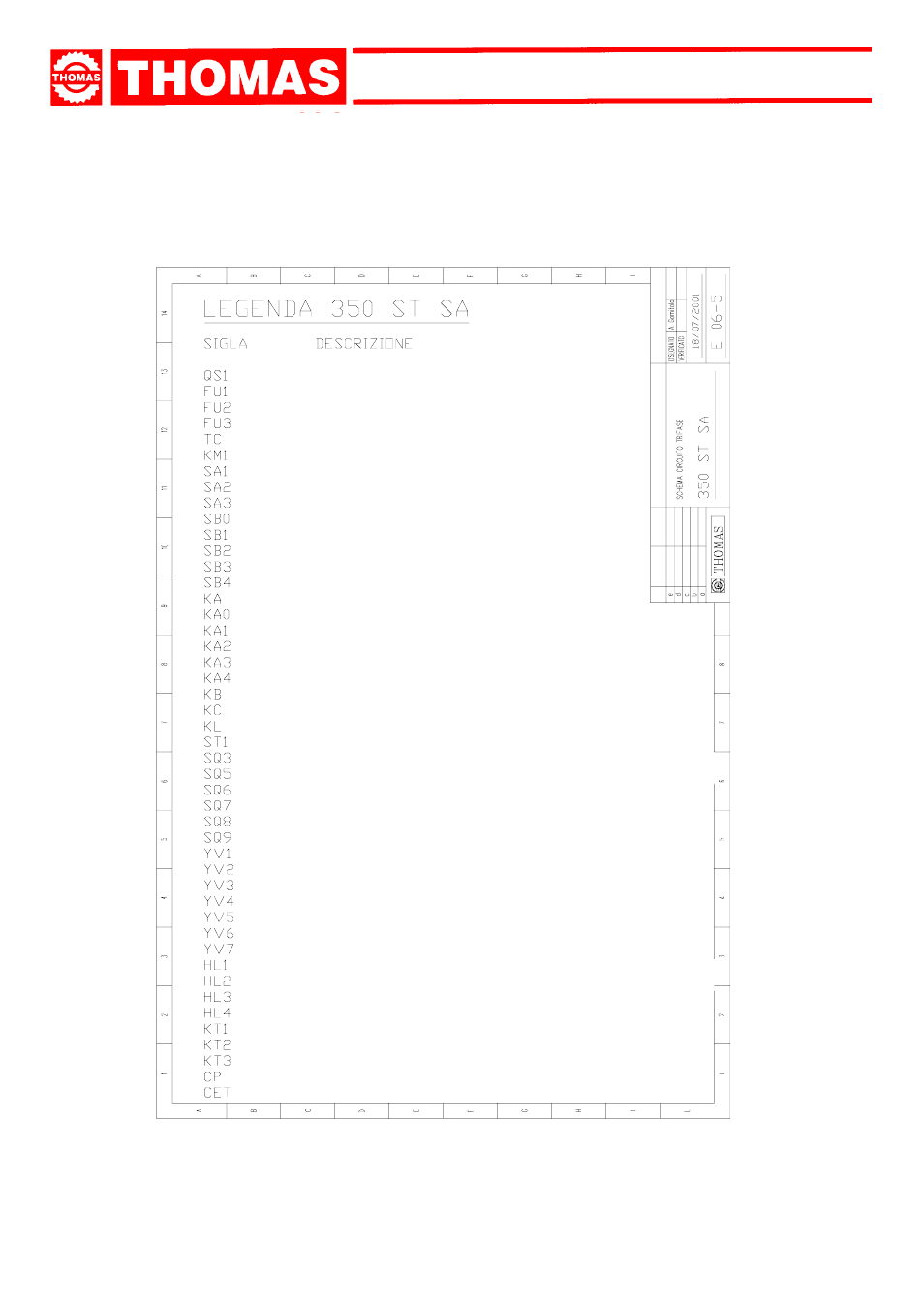

SUPER

SUPER TECHNICS 350 SA

TECHNICS 350 SA

Main switch
Fuse holder
Fuse holder
Fuse holder
Transformer
Remote switch
Blade speed selector
Cutting head up-down selector
Automatic/Semi-automatic selector
Emergency push-button
Emergency push-button
Line push-button
Start cycle push-button
Feeding line push-button
Aux. Relay
Aux. Relay
Aux. Relay
Aux. Relay
Aux. Relay
Aux. Relay
Aux. Relay
Aux. Relay
Aux. Relay
Thermal protection
Micro-switch (low pos.)
Micro-switch (top pos.)
Micro-switch (back feed)
Micro-switch (material end)
Micro-switch (front feed)
Micro-switch (metal protection)
Electro-valve (head down)
Electro-valve (head up)
Electro-valve (vice lock)
Electro-valve (vice open)
Electro-valve (stop valve)
Electro-valve (feeding vice)
Electro-valve (feeding system)
Pilot light
Pilot light
Pilot light
Pilot light
Timer (feed vice opening gap)
Timer (feed vice departure gap)
Timer (feed vice return gap)
Piece-counter
Repeater
