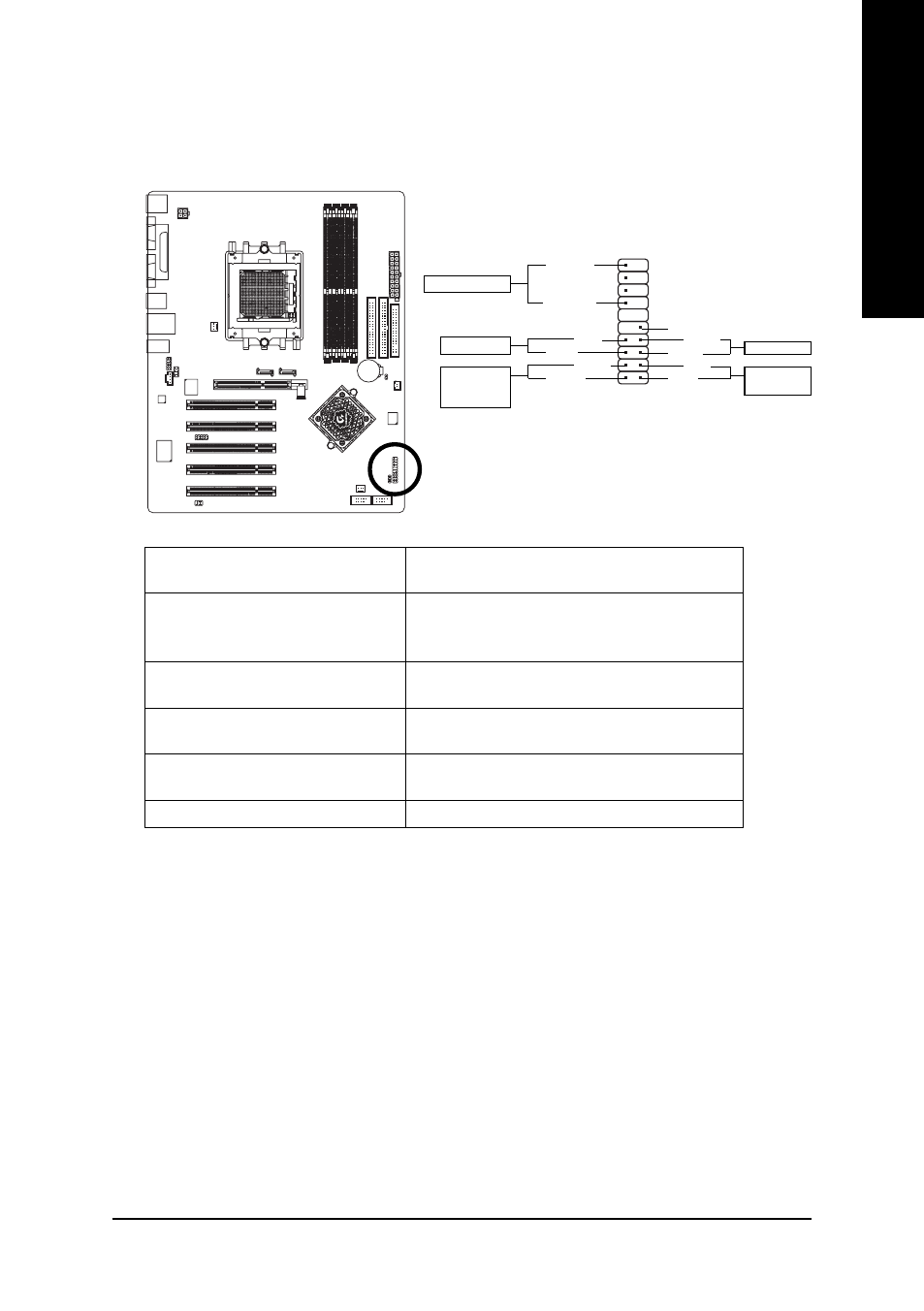

10) F_PANEL (Front Panel Jumper)

Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis front
panel to the F_PANEL connector according to the pin assignment below.

HD-

HD+

RES+

RES-

SPEAK-

MSG-

MSG+

PW-

PW+

SPEAK+

Message LED/

Power/

Sleep LED

Power Switch

Speaker Connector

IDE Hard Disk

Active LED

Reset Switch

HD (IDE Hard Disk Active LED)

Pin 1: LED anode(+)

(Blue)

Pin 2: LED cathode(-)

SPEAK (Speaker Connector)

Pin 1: Power

(Amber)

Pin 2- Pin 3: NC
Pin 4: Data(-)

RES (Reset Switch)

Open: Normal

(Green)

Close: Reset Hardware System

PW (Power Switch)

Open: Normal

(Red)

Close: Power On/Off

MSG(Message LED/Power/Sleep LED)

Pin 1: LED anode(+)

(Yellow)

Pin 2: LED cathode(-)

NC (Purple)
