Page 22
GA-K8NSC-939 Motherboard
- 22 -
English

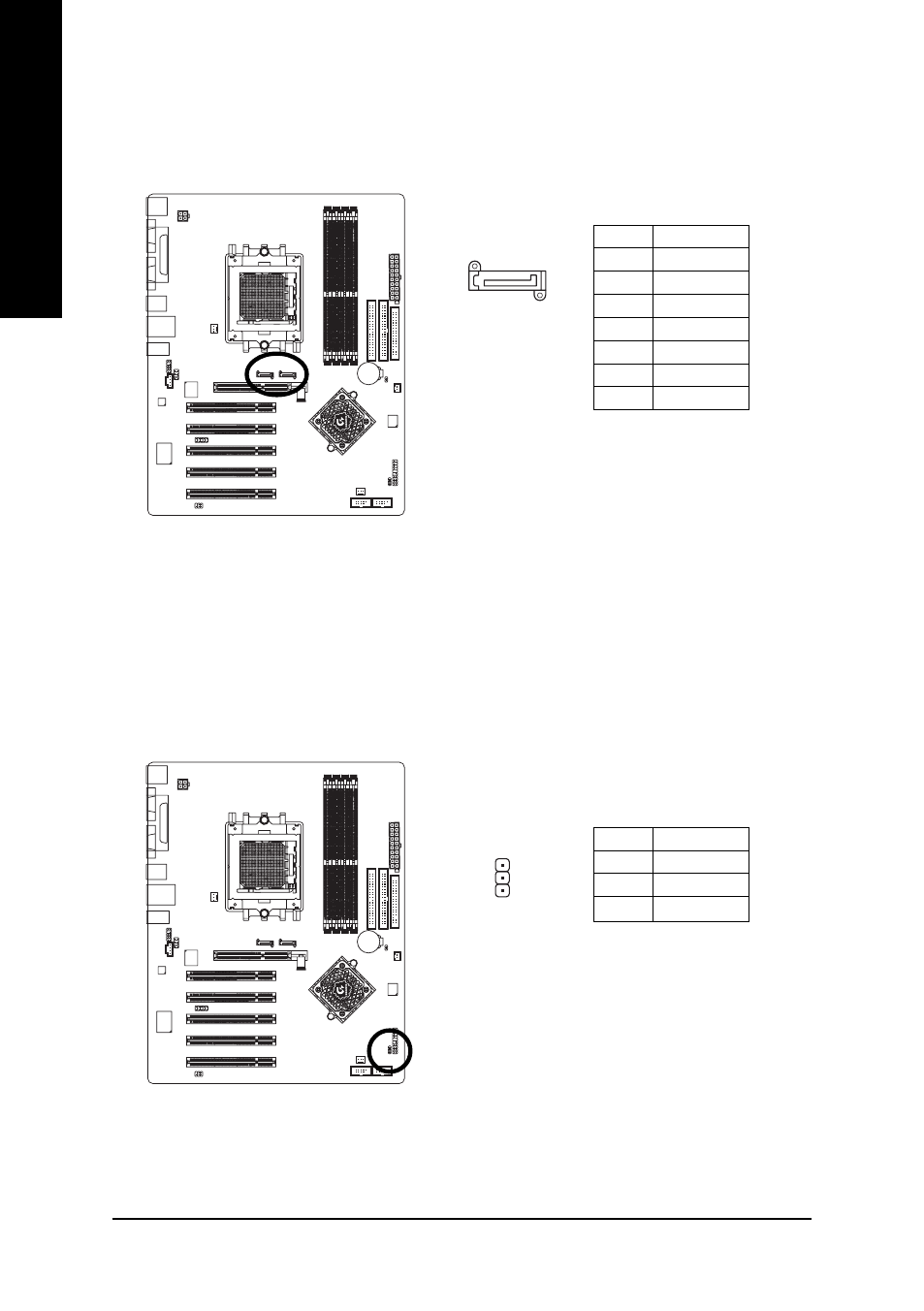

9) PWR_LED
PWR_LED is connected with the system power indicator to indicate whether the system is on/off.
It will blink when the system enters suspend mode.
Pin No.
Definition
1
MPD+
2
MPD-
3
MPD-
1
8) SATA0_SB / SATA1_SB (Serial ATA Connector)
Serial ATA can provide up to 150MB/s transfer rate. Please refer to the BIOS setting for the Serial
ATA and install the proper driver in order to work properly.
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
1
7
