Hydraulic Fan System Controller : HFS - 2
Temperature Sensor Information - Cont:
S t S t U Hi t
P = 64 I = 0
Setting the P term to 64 and the I term to 0, calibrates the controllers output to start giving current ( at the I Min
setting % ) at the ‘set point’ temperature and to be at 100% output current ( I max setting % ) at the ‘Overtemp’
temperature. This relationship is linear and ( depending on whether positive or negative logic is applied ) at 100%
controller output, the fan will be going at the fastest speed possible.

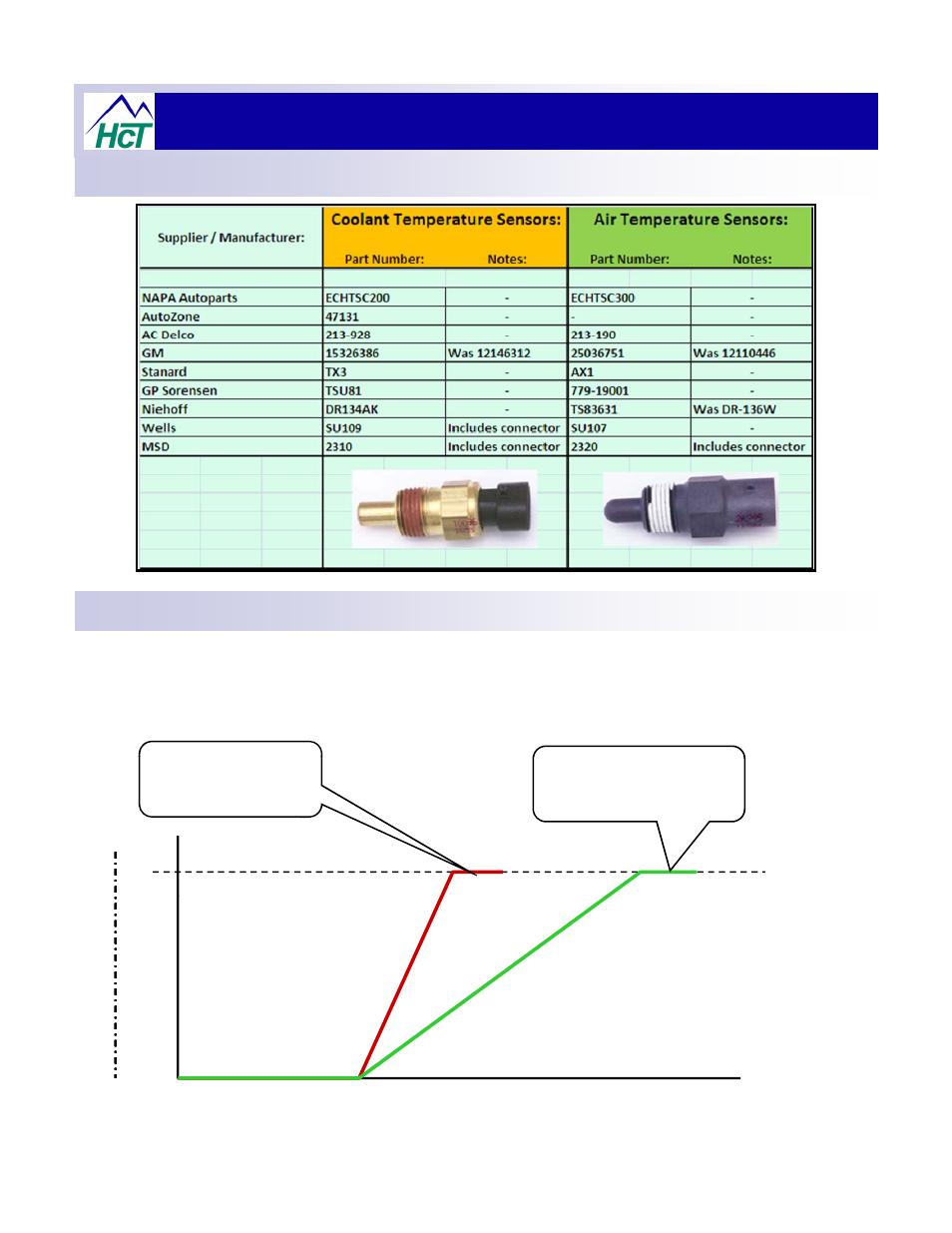

System Set-Up Hints:
Fan
Full
S d
100%
P = 64, I = 0
Set point = 20°C
Overtemp = 30°C
Fan will go from zero to max
over 10°C.
P = 64, I = 0
Set point = 20°C
Overtemp = 50°C
Fan will go from zero to max over
30°C.
Speed
Fan
zero
Speed
