Rev. 0040807014 1614 Page 2-7
Operating and Installation Instructions
CONA
®
-control
4.3 Indications on the CONA
®
-control system
The LEDs on the "central status indication" light up continuously to indicate the existence of
a fault. As soon as the steam trap functions correctly again, the LEDs blink to show that the
faults are no longer present. By pressing the Reset button, you can reset a stored fault.
* If the "central status indication" is used, the fault is stored and the "Trap Inspect" LED
blinks.

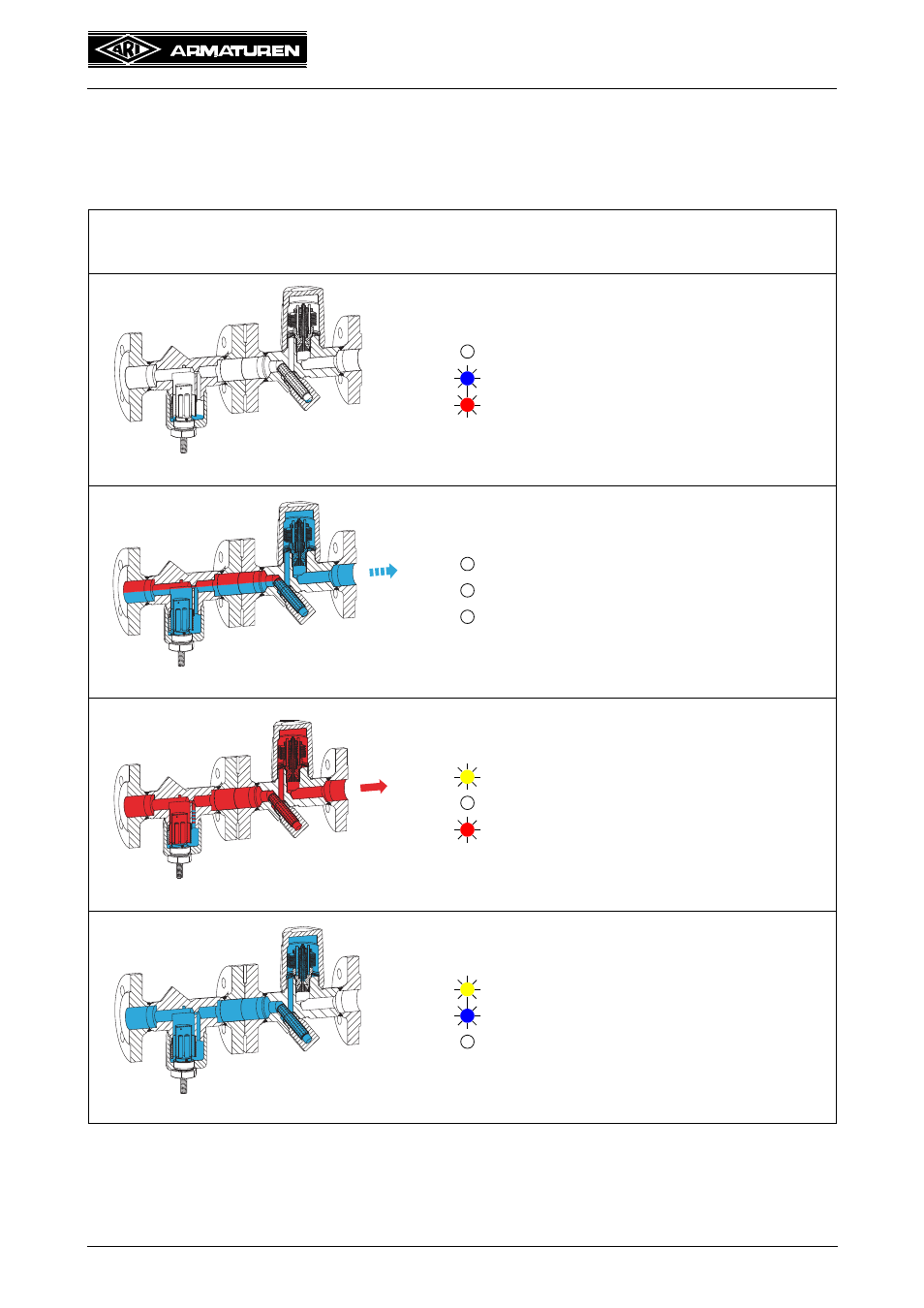

Sectional view of
test chamber and steam trap
LED on measuring
amplifier -
indication via bus
Operating status
Fig. 1
Trap Inspect *
Blockage
Steam
Leakage
Plant / steam trap
not in operation
Sensor surrounded by
cold
air / steam and
temperature is below
specified value
Fig. 2
Trap Inspect *
Blockage
Steam
Leakage
Steam trap is working
correctly
Sensor surrounded by
hot condensate
Fig. 3
Trap Inspect *
Blockage
Steam
Leakage
Steam leakage
Sensor surrounded by
steam and temperature is
above specified value
Fig. 4
Trap Inspect *
Blockage
Steam
Leakage
Blocked steam trap
Sensor surrounded by
cold condensate and / or
condensate temperature
is below
specified value
