2 - led connections – HighPoint RocketRAID 2320 User Manual
Page 12
2 - LED Connections

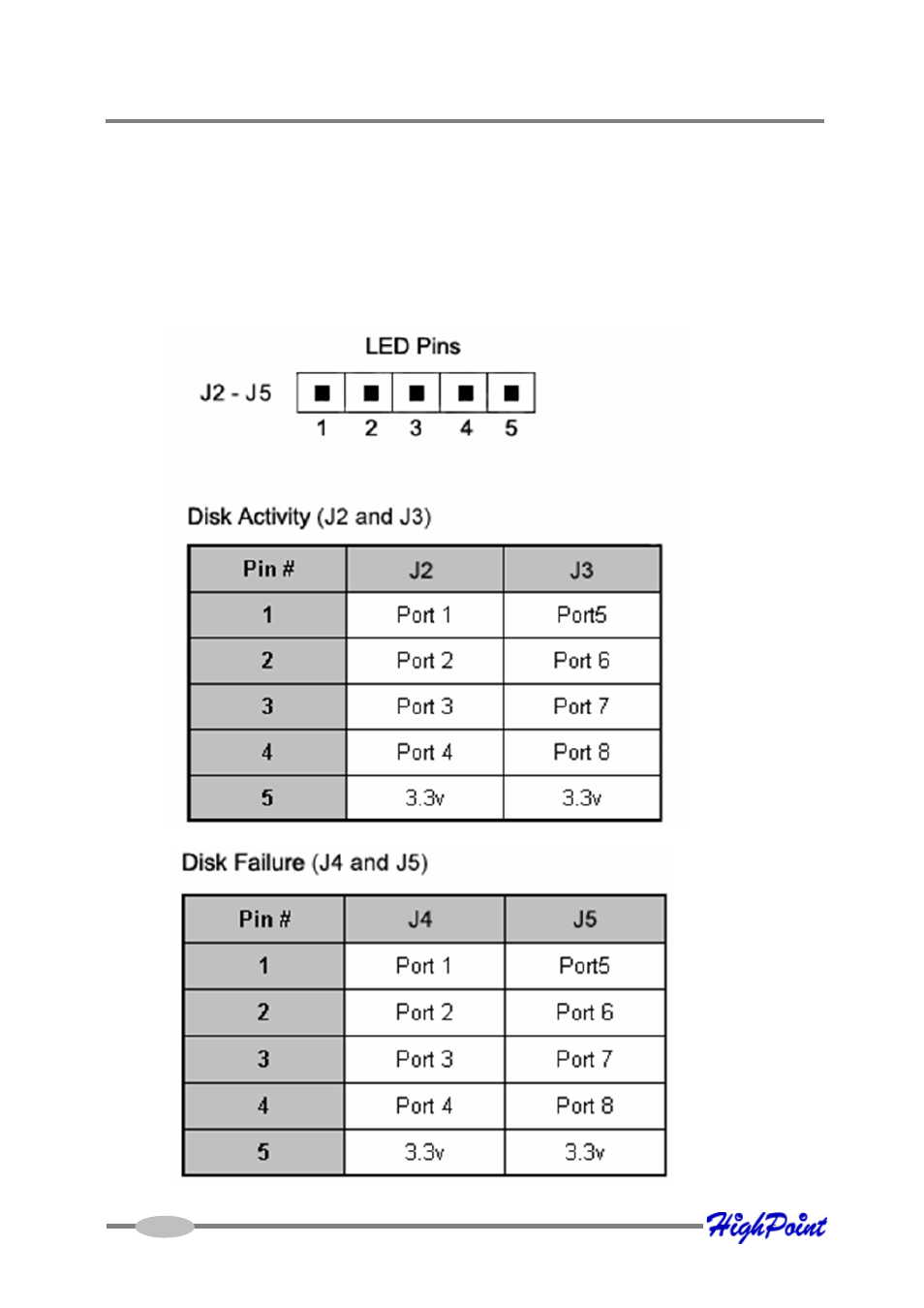

The RocketRAID 2320 has 4 LED jumpers – J2, J3, J4 and J5. The following diagrams
describe the connector pin definitions for the Disk Activity jumpers (J2, J3), and Disk
Failure connections (J4, J5). The “Ports” refer to the RocketRAID 2320’s eight SATAII
channels.
RocketRAID 2320 Hardware Description/Installation
2-2
