Hardware – Description and Installation

Hardware - Description and Installation

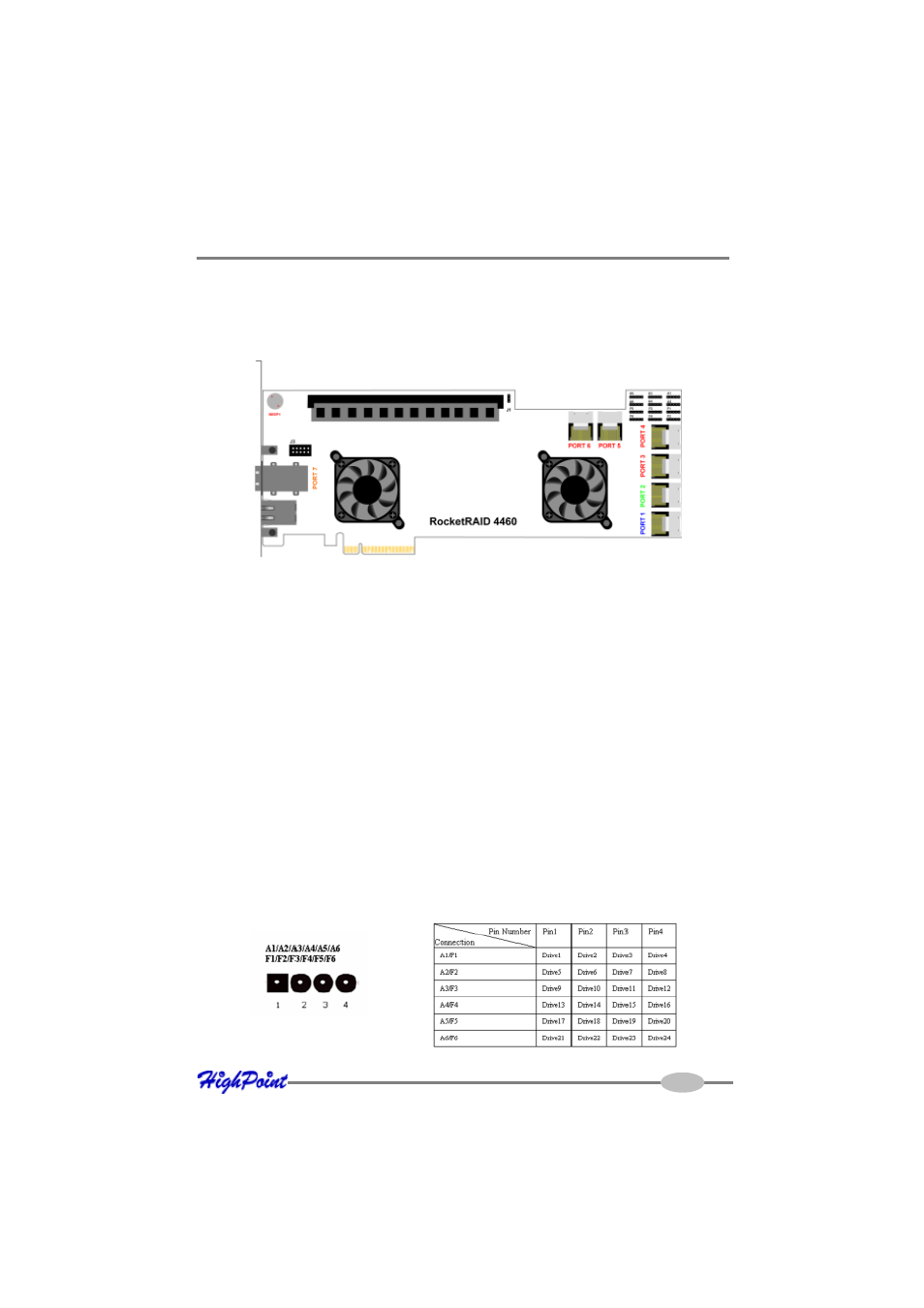

1-RocketRAID Adapter layout

11

Port1 to Port6

These represent RocketRAID 4460’s 6 Internal Mini-SAS ports. Each port can direct

connect up to 4 hard drives.

Port7

This represents RocketRAID 4460’s additional External Mini-SAS port. With the

automatic port selection funtion, Port7 can be used when Port1 has no disks attached

during power up,this port can direct connect up to 4 hard drives.

Note : Only Port1(/Port7) and Port2 support SAS expander.

U12

The connector represents one DDR2-533 DIMM socket that allows for upgrading up

to 4GB of memory. By default,it supports 1GB of ECC DDR533 SDRAM memory.

A1-A6, F1-F6

A1-A6 are Disk Activity LED’s; F1-F6 are Disk Faliture LED’s.
