Page 10
10
BEEP1-Speaker
Alarm (speaker): the speaker emits and audible alarm in the case of Drive/array failure.
J1
This jumper supports SAF-TE interface (I2C).

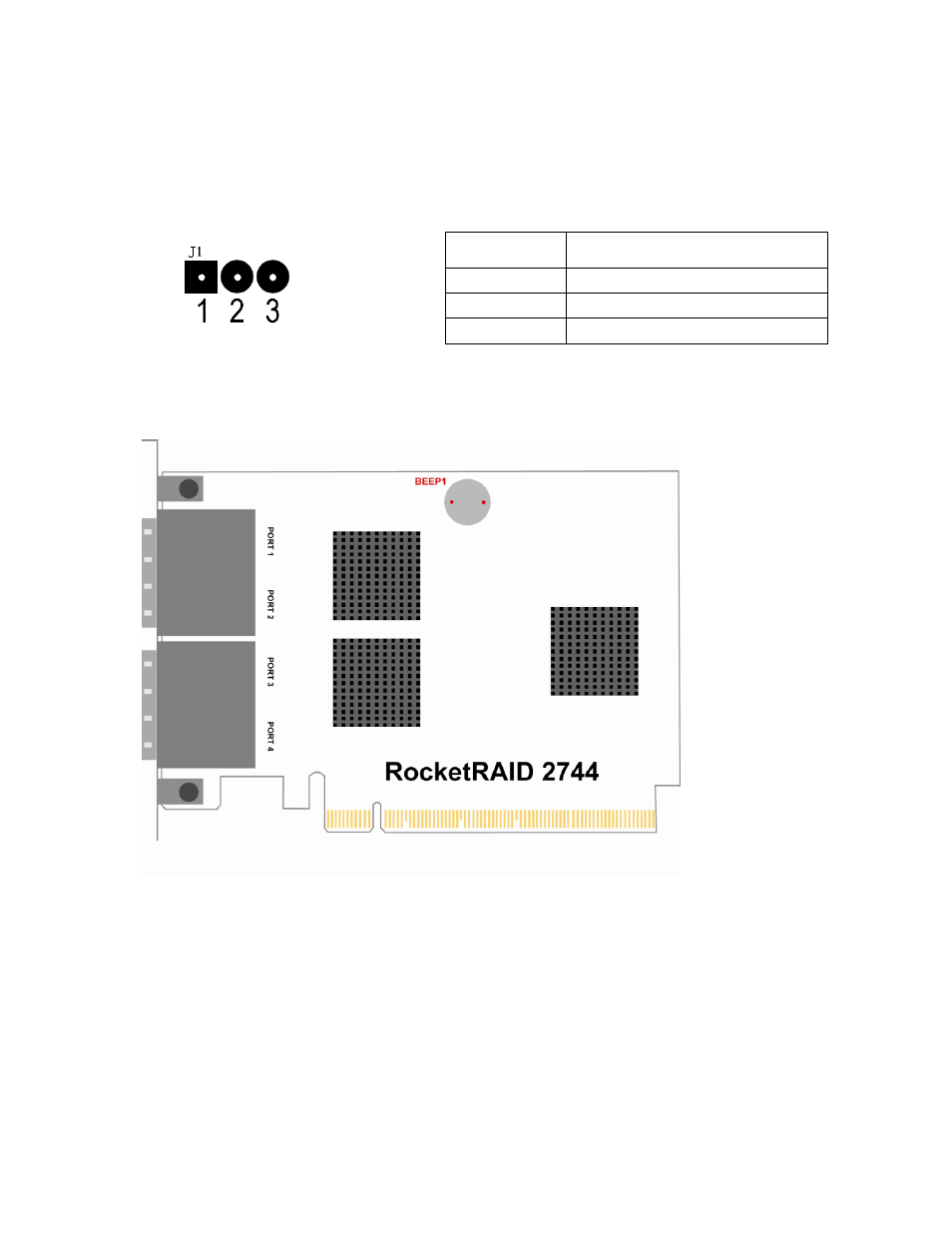

RocketRAID 2744 Host Adapter layout
Port1-Port4
These represent the RocketRAID 2744’s 4 external Mini-SAS ports. Each port can direct
connect up to 4 SATA/SAS hard disks.
BEEP1-Speaker
Alarm (speaker): the speaker emits and audible alarm in the case of Drive/array failure.
Pin Number
PIN description
Pin1
SCL
Pin2
GND
Pin3
SDA
