Hardware – Description and Installation
11
BEEP1-Speaker
Alarm (speaker): the speaker emits and audible alarm in the case of
Drive/array failure.
J1
This jumper supports the SAF-TE interface (I2C).
2 - Installing the RocketRAID 2782 Host Adapter
Note: Make sure the system is powered-off before installing the RocketRAID
2782
host adapter.
1. Open the system chassis and locate an unused PCI-Express x16.
2. Remove the PCI slot/bracket cover.
3. Gently insert the RocketRAID2782 card into the PCI-Express slot, and
secure the bracket to the system chassis (illustration shows RocketRAID
2782).

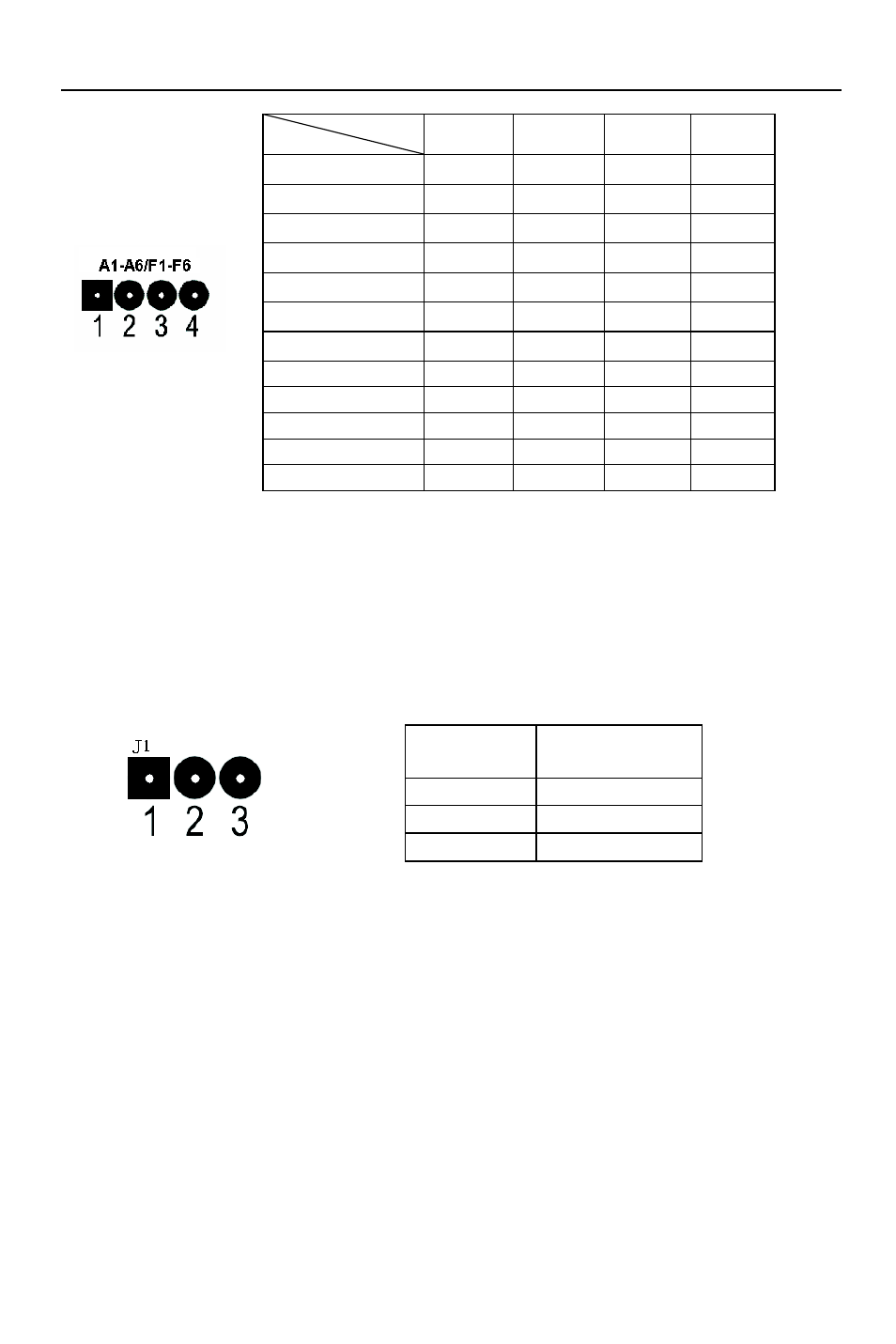

Pin Number
Pin 1
Pin 2
Pin3
Pin4
A1
Drive1
Drive2
Drive3
Drive4
A2
Drive5
Drive6
Drive7
Drive8
A3
Drive9
Drive10
Drive11
Drive12
A4
Drive13
Drive14
Drive15
Drive16
A5
Drive17
Drive18
Drive19
Drive20
A6
Drive21
Drive22
Drive23
Drive24
F1
Drive1
Drive2
Drive3
Drive4
F2
Drive5
Drive6
Drive7
Drive8
F3
Drive9
Drive10
Drive11
Drive12
F4
Drive13
Drive14
Drive15
Drive16
F5
Drive17
Drive18
Drive19
Drive20
F6
Drive21
Drive22
Drive23
Drive24
Pin
Number
PIN
description
Pin1
SCL
Pin2
GND
Pin3
SDA
