Hardware – Description and Installation

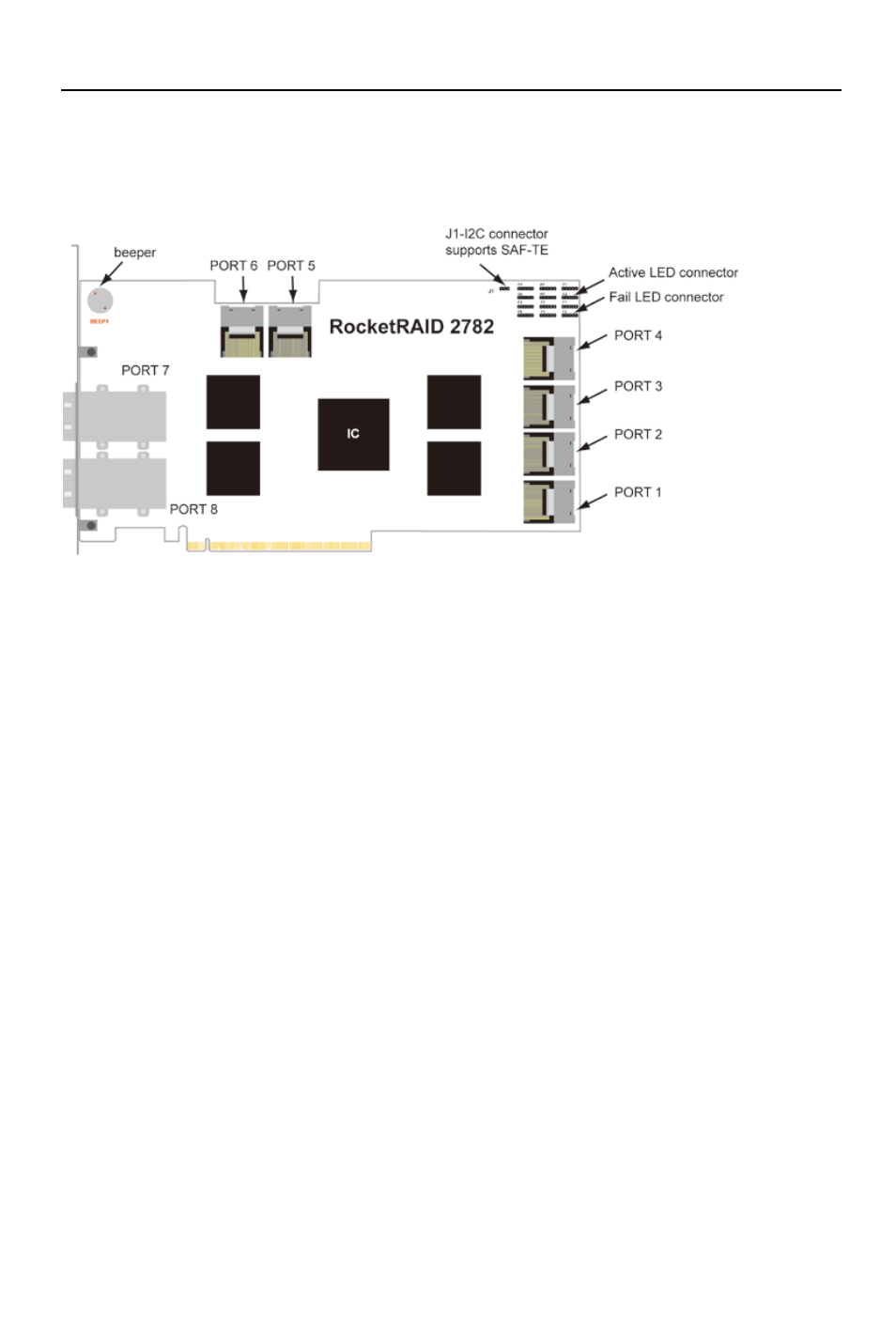

1-RocketRAID 2782 Host Adapter layout

Port1-Port6
These represent the RocketRAID 2782’s 6 Internal Mini-SAS ports.

Port7-Port8
These represent the RocketRAID 2782’s 2 External Mini-SAS ports

Each port can direct connect up to 4 SATA/SAS hard disks.

LED Connections
LED connectors (Drive-activity/Drive-failure): The RocketRAID 2782 host
adapter has 12

LED connectors that are used to indicate the activity and

failure status of hard drives attached to the card’s 6 SATA/SAS channels.

A1-A6, F1-F6
A1-A6 provides LEDs support for Drive Activity, while F1-F6 supports Drive
Failure.
