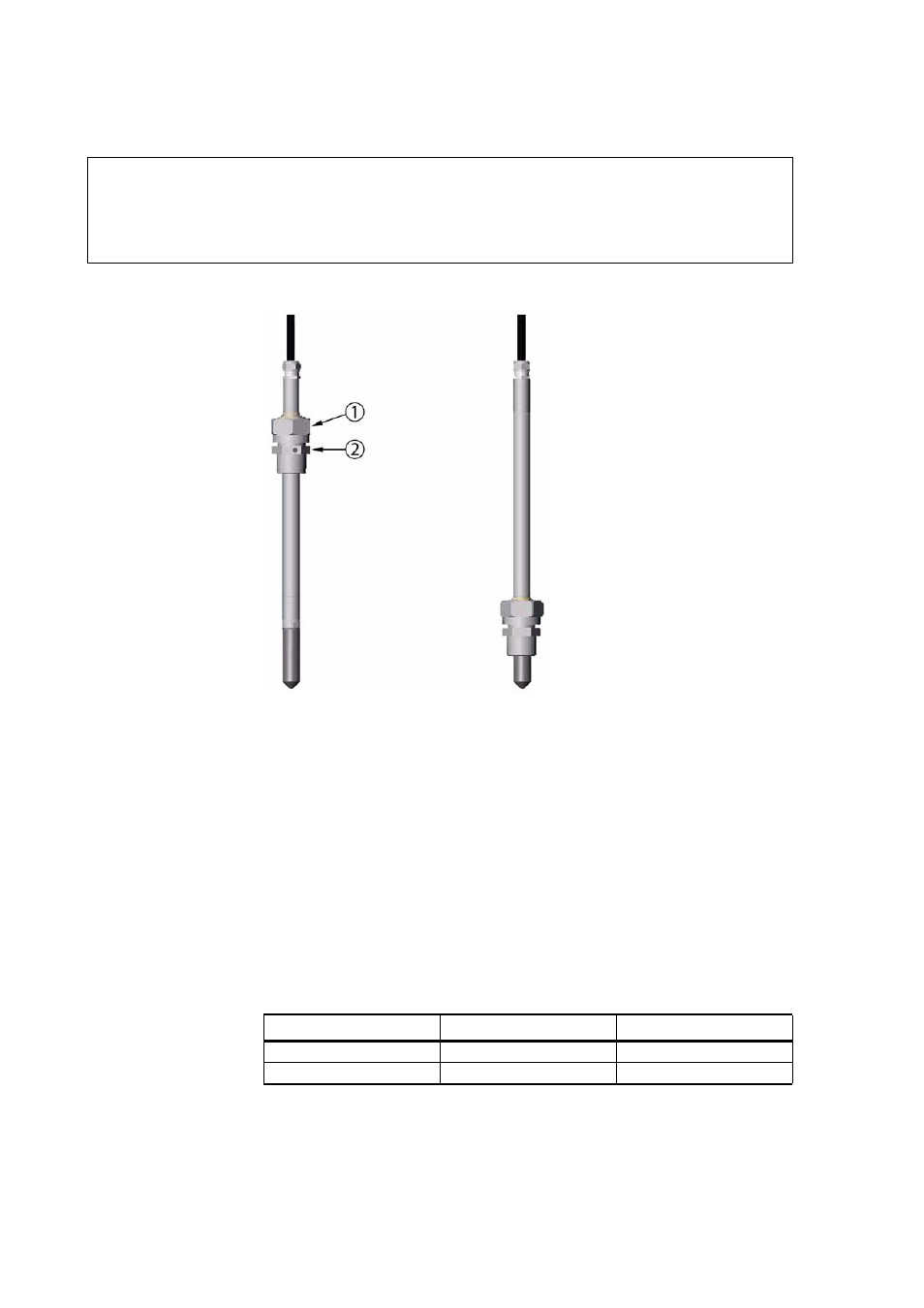

0606-156 Figure 12 HMP368 Probe
The following two fitting body options are available:
- Fitting Body ISO1/2 solid structure
- Fitting Body NPT1/2 solid structure
NOTE When HMP368 is installed in a process with a pressure differing from
normal atmospheric pressure, please enter the pressure value of the
process (in bar
a
) into the transmitter memory, see section Setting the
Pressure for Calculations on page 48 .
The following numbers refer to Figure 12 on page 30 :
1 = Clasp nut, 24 mm hex nut
2 = Fitting body, 27 mm hex nut
Table 4 HMP368 Probe Dimensions
Probe Type Probe Length Adjustment Range
Standard 178 mm 120 mm
Optional 400 mm 340 mm
