Installation and Owner’s Manual | TSAL B2B Series
2.4 System Overview

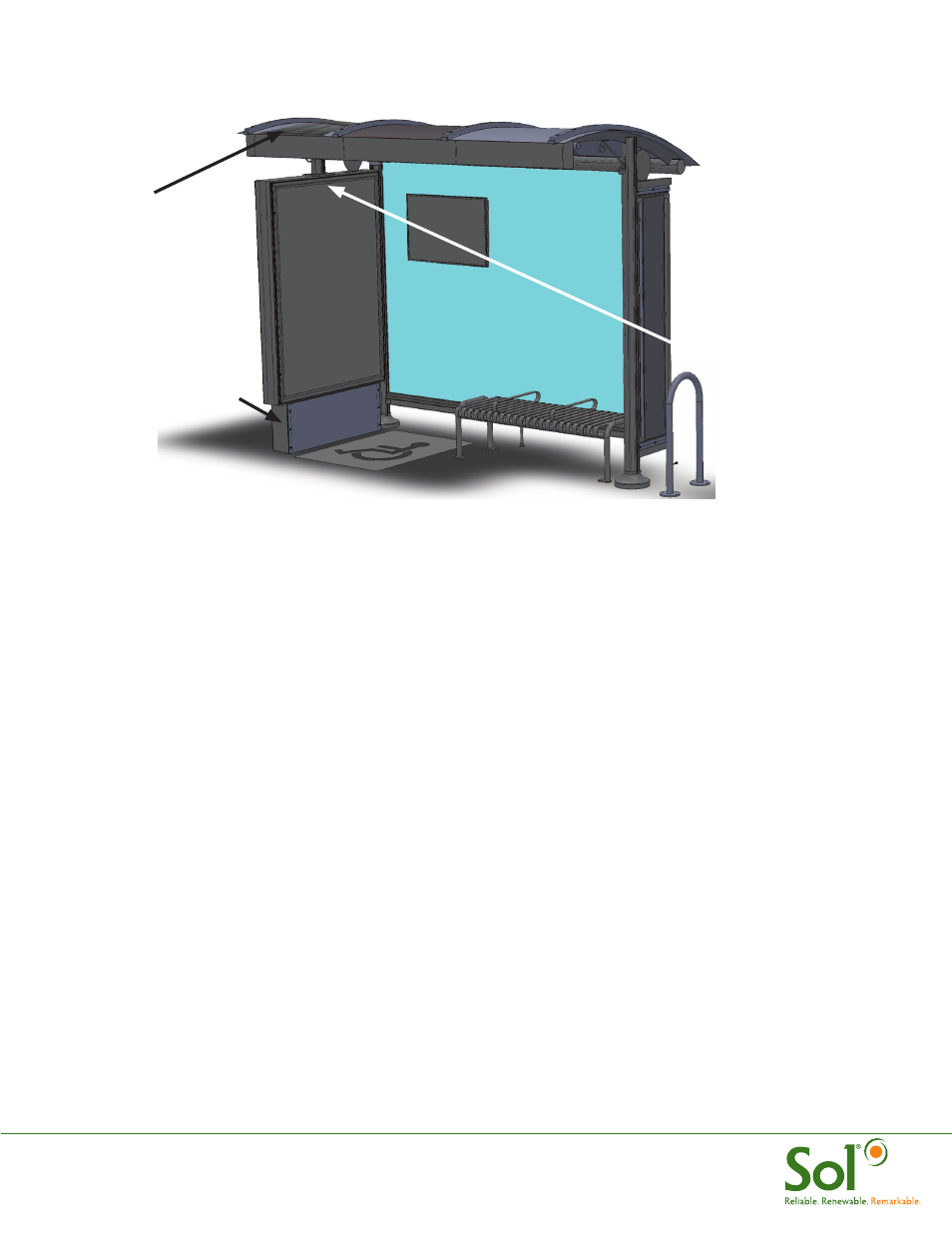

FIGURE 2 SYSTEM OVERVIEW
PV Module
(Panel or ThinFilm) - Always
facing EQUATOR (South in
Northern Hemisphere)
Ad Kiosk Base: holds 3
batteries and controller
(A separate Battery Enclosure
may be provided if shelter does
not have Ad Kiosk Base)
3 harness assemblies included:
• PV harness
• LED AdLight harnesses (2)
• Triple battery harness
AdLight Lightbars (mounted
inside top section of Ad Kiosk)
The following tools are recommended to install the Transit Shelter Solar Light System.
• Phillips screwdriver
• Flathead screwdriver
• Adjustable wrench
• Basic socket set
• 5/16” hex head driver
• Digital volt meter (optional)
2.5 Tools required
