Sol Transit Shelter Ad Light - Manual (Page 17)

17 rev. 0512 MKTG-IM-TOLAR-TSAL-BACK TO BACK-003
Installation and Owner’s Manual | TSAL B2B Series
Pre-mounted
controller unit
Battery #1/#2
Layout may vary
depending on type
of battery enclosure
provided
Battery #3
(if necessary)

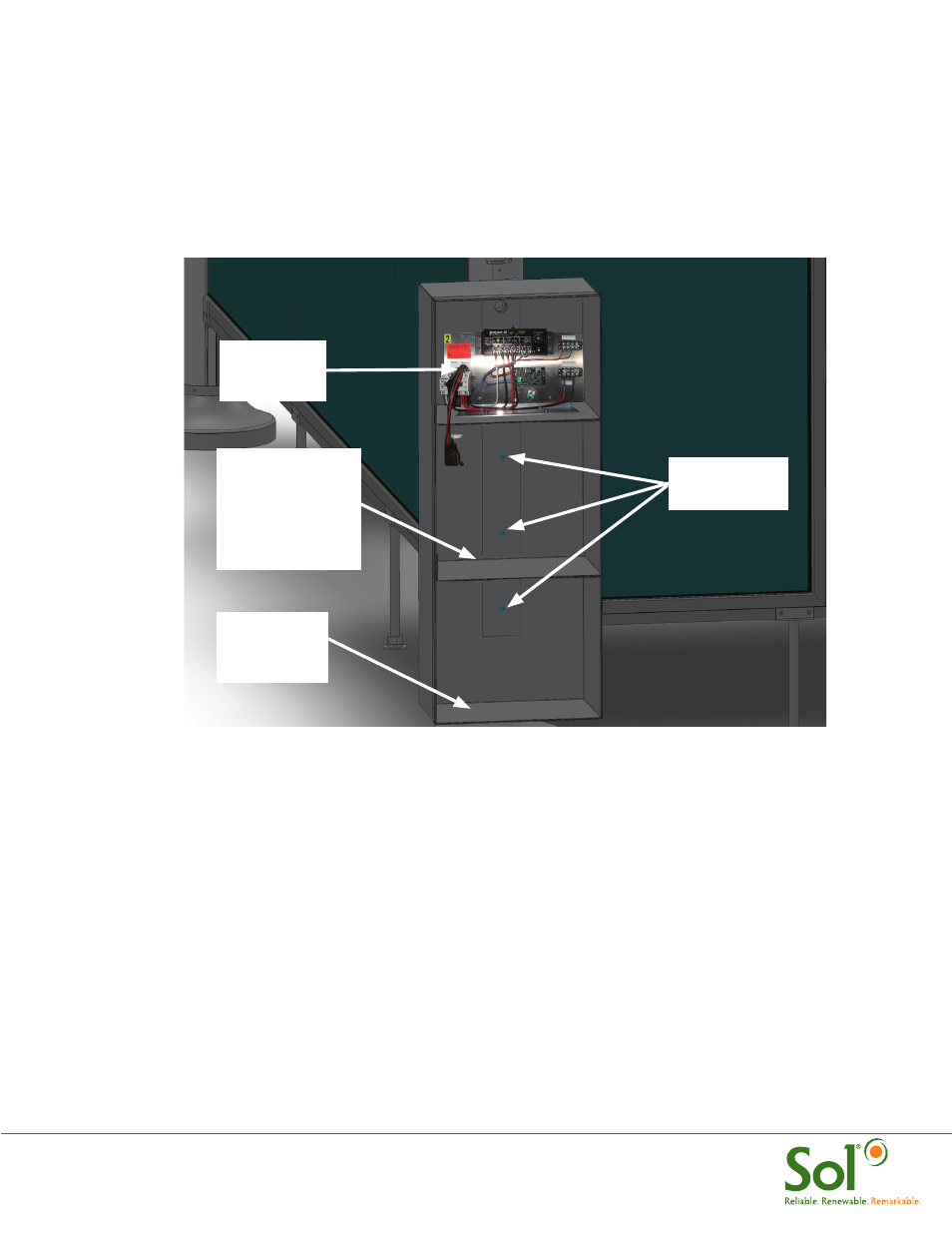

FIGURE 22 INSTALLING CONTROLLER, BATTERY ENCLOSURE AND BATTERIES
3.11 Mounting Battery Enclosure and Installing Batteries (with separate battery enclosure)
1. A battery enclosure mounting bar will be provided by Tolar and will need to be mounted prior to
installing the Battery Enclosure.
2. Remove Battery Enclosure screws from cover and place Battery Enclosure (pre-drilled) on mounting
bar and secure with Tolar provided security screws (Figure 22).
3. Place each battery on shelf.
Security Screws
