Installation and Owner’s Manual | TSAL B2B Series
3.5 Attaching the Solar Array Mounting Angles (for Peak or Flat Roof)
1. If mounting using existing captive hardware on shelter roof, then determine the best place to secure the
solar array(s) by centering the solar array mounting angles along the ribs of the shelter roof ensuring the
holes line up to match captive hardware already securing the roof (Figure 7) and that the solar arrays
will fit securely within the mounting angles. Ensure that the panel is mounted on the surface most
facing towards the equator or due South in the Northern hemisphere.
2. Loosen each of the captive hardware screws on the shelter roof and place mounting angles in
designated position and reattach the screws to secure the mounting angles to the shelter roof.
Tek screw

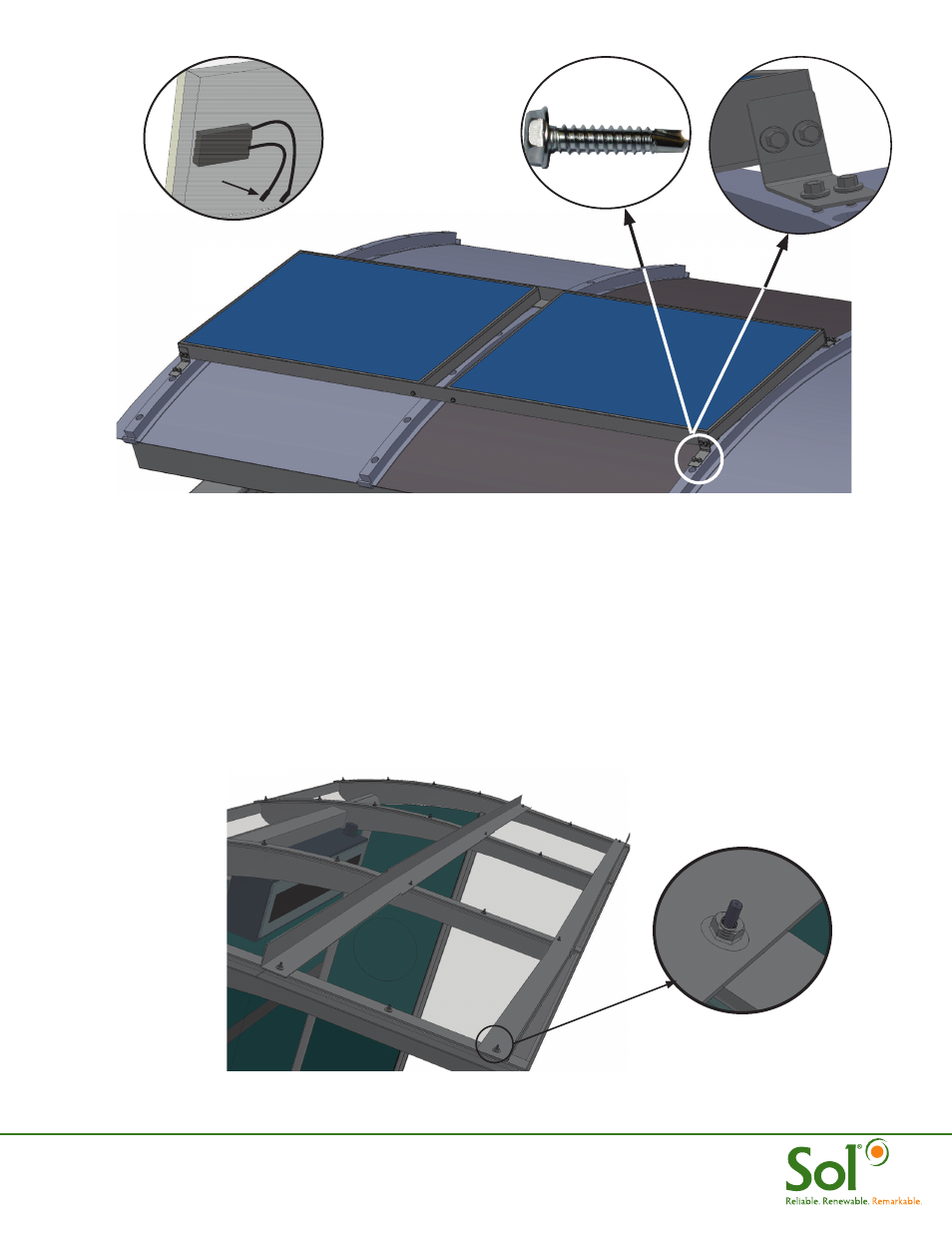

FIGURE 6 ATTACHING SOLAR ARRAY ASSEMBLY TO SHELTER
FIGURE 7 SECURING PV ANGLES TO ROOF RIBS
Roof hardware
MC Connectors
Underside view of PV Module
