Installation and Owner’s Manual | TSAL B2B Series
3.10 Installing Controller Plate and Batteries (inside Kiosk base)
1. The controller is shipped pre-wired and is secured to a mounting plate.
2. Open battery storage area by unscrewing the cover plate from the ad kiosk base inside the shelter.
3. Place batteries parallel inside storage area enclosure.
4. Bolt control plate to top or side of battery storage area with bolt sets provided.

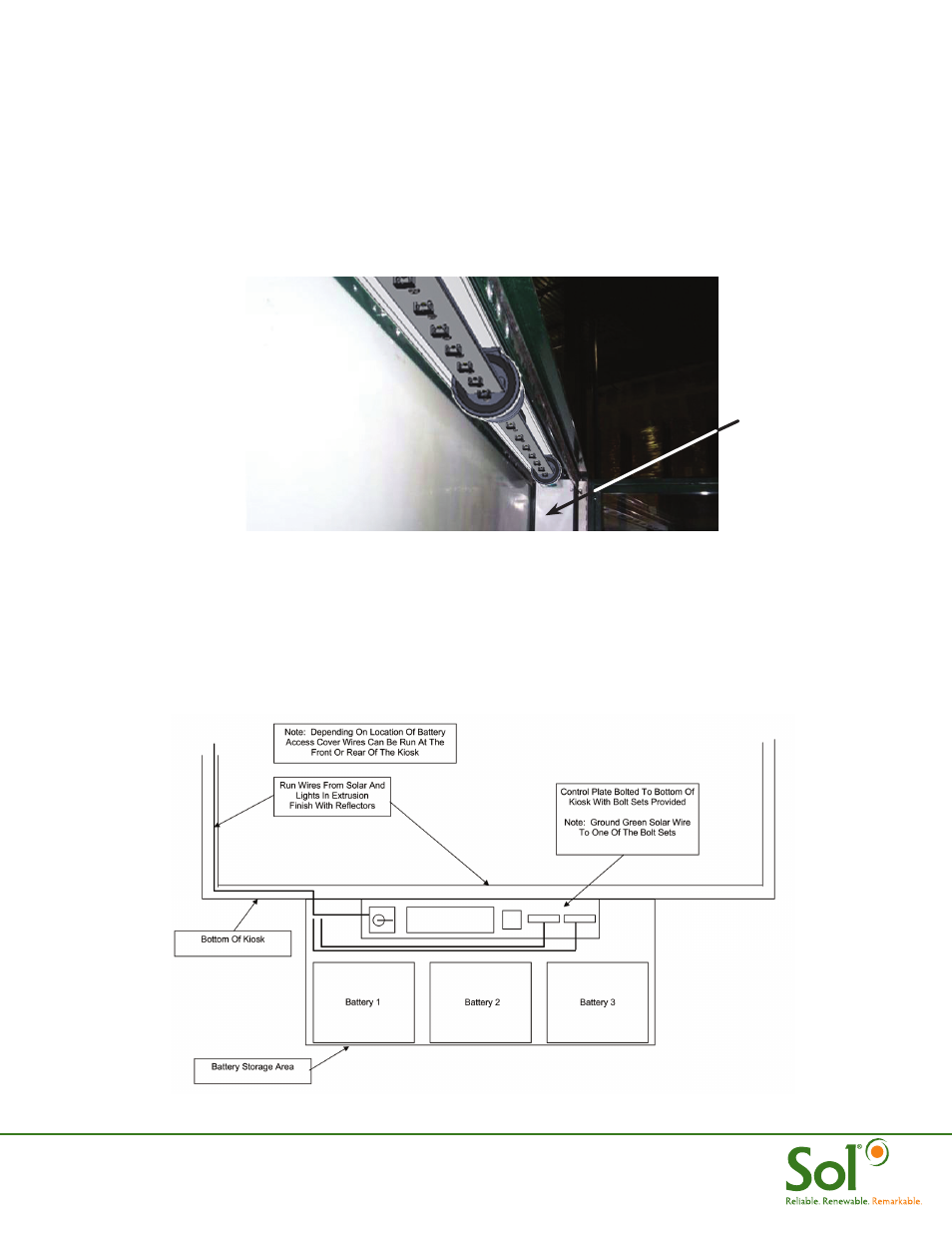

FIGURE 21 INSTALLING CONTROLLER AND BATTERIES
3.9 Installing LED Lightbar
1. Remove AdLights from box and mount side by side to top of Kiosk, left to right.
2. Line brackets up with extrusion tabs, secure with small #8 X 1/2’ TEK screws.
3. Connect AdLight harness and run excess harness to bottom of ad kiosk.
4. After all wires are run mount reflectors on Each vertical side of kiosk. Line holes up with extrusion tabs
and secure with small TEK screws.
5. Peel protective plastic coating off reflector after installation. Bottom reflector simple rests at bottom of
ad kiosk.
FIGURE 20 INSTALLING LED LIGHTBAR
Reflector
