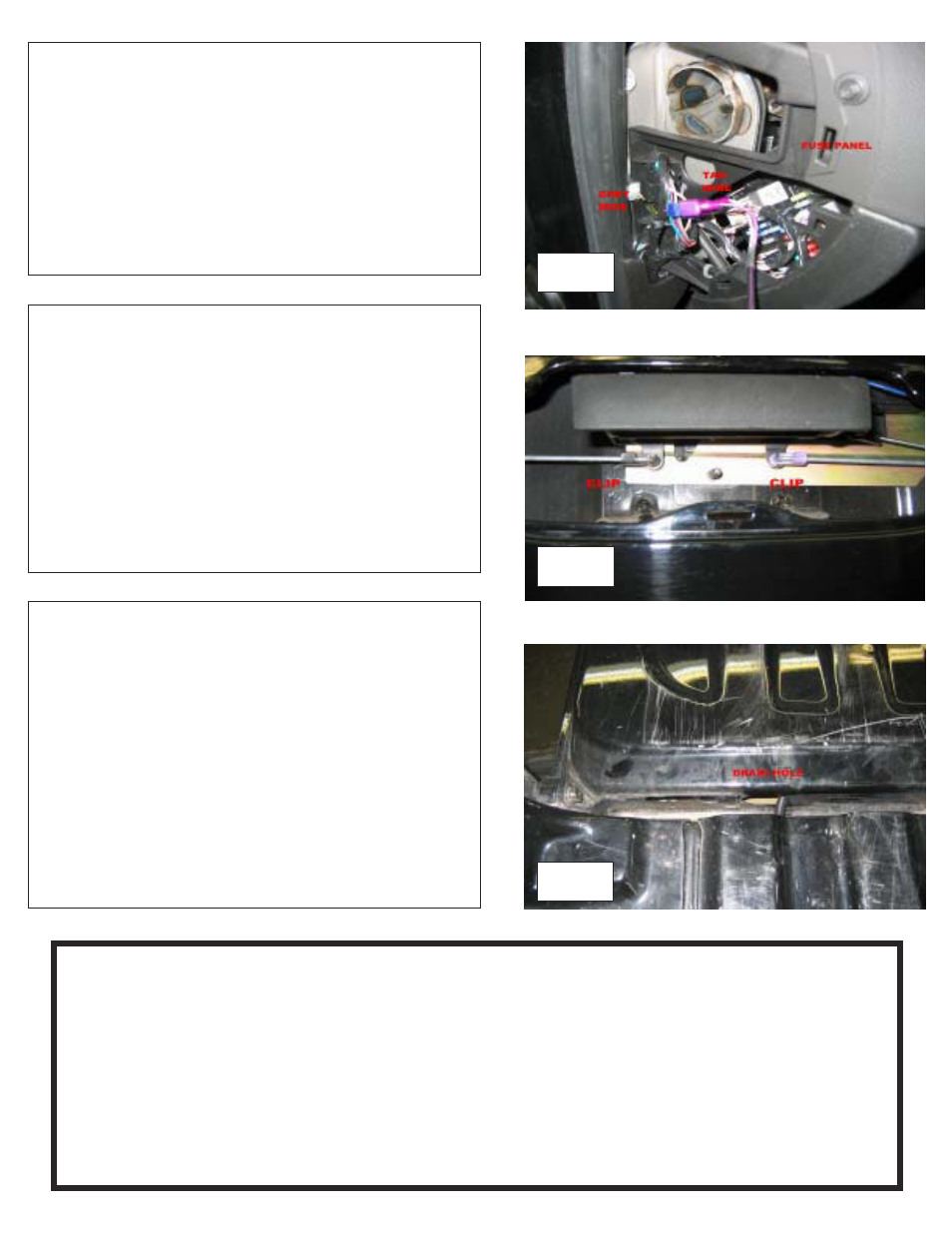

STEP 5: Finishing
Once the unit is in place in the tailgate, fish the
short harness through the drain hole along the
bottom of the tailgate on the passenger’s side.
(FIG 7)Connect the short harness to the long
harness. Connect the short harness to the Power
Lock. Test the system by toggling the remote. If
the door locks and Power Lock are out of phase,
switch the wires at the tailgate. Replace the
bezel.
STEP 4: Mechanical
PL8120 only.
For PL8130 see separate sheet.
Lower the tailgate and remove the three 14mm
bolts from the back. Close the tailgate and re-
move the bezel. Unclip the rods from the handle
and remove the handle from the tailgate. Mount
the Power Lock to the handle. Reinstall the
handle and the replace all bolts. Clip the rods in
place.(FIG 6) Leave the bezel off for now.
STEP 3: Wires - continued
Once you have the long relay harness lead into
the cab, fish it through into the fuse box area and
connect it to the blue wire taps. (FIG5) Run the
long extension harness along the frame of the
truck towards the back, using the tie wraps to
hold it away from exhaust parts and prevent it
from hanging. Angle towards the passenger side.
For Technical Assistance, please call us at:
800-342-5911
Monday to Friday 8am - 4:30pm CST
12/27/11
