Installation Tech Note Tailgate Lock PL2300
FORD F150/250-350: ‘87-’96/’98 , FORD Ranger: ‘93 and up
MAZDA B Series: ‘94 and up
BOLT
LINK

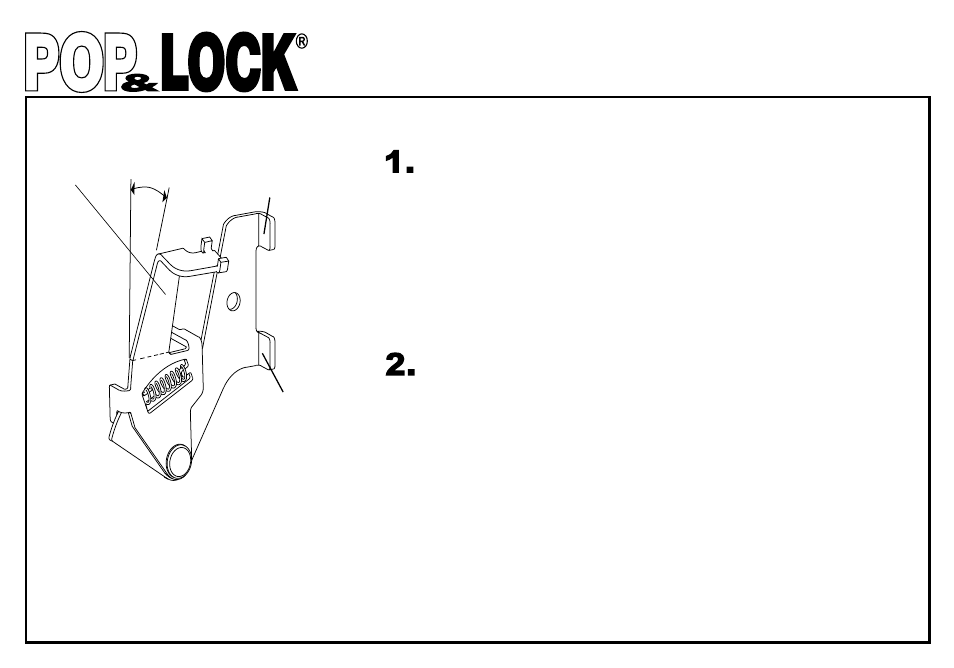

If the BOLT LINK doesn’t catch the SCISSOR LINK, then the 25 o
bend angle of the BOLT LINK may have to be adjusted.
Remove the spring from the BOLT ASSEMBLY,
hold the BOLT ASSEMBLY in a vise, and bend the BOLT
LINK along the dotted line to the desired angle.
The amount of engagement of the BOLT LINK with the SCIS-
SOR LINK can be adjusted by bending the TOP TAB out and
the BOTTOM TAB in to increase the clearance or the oppo-
site way to decrease the clearance.
TOP
TAB
BOTTOM
TAB
