GReddy TURBO KITS: Nissan 350Z 2003-04 / twin TD05-18G - Manual (Page 12)

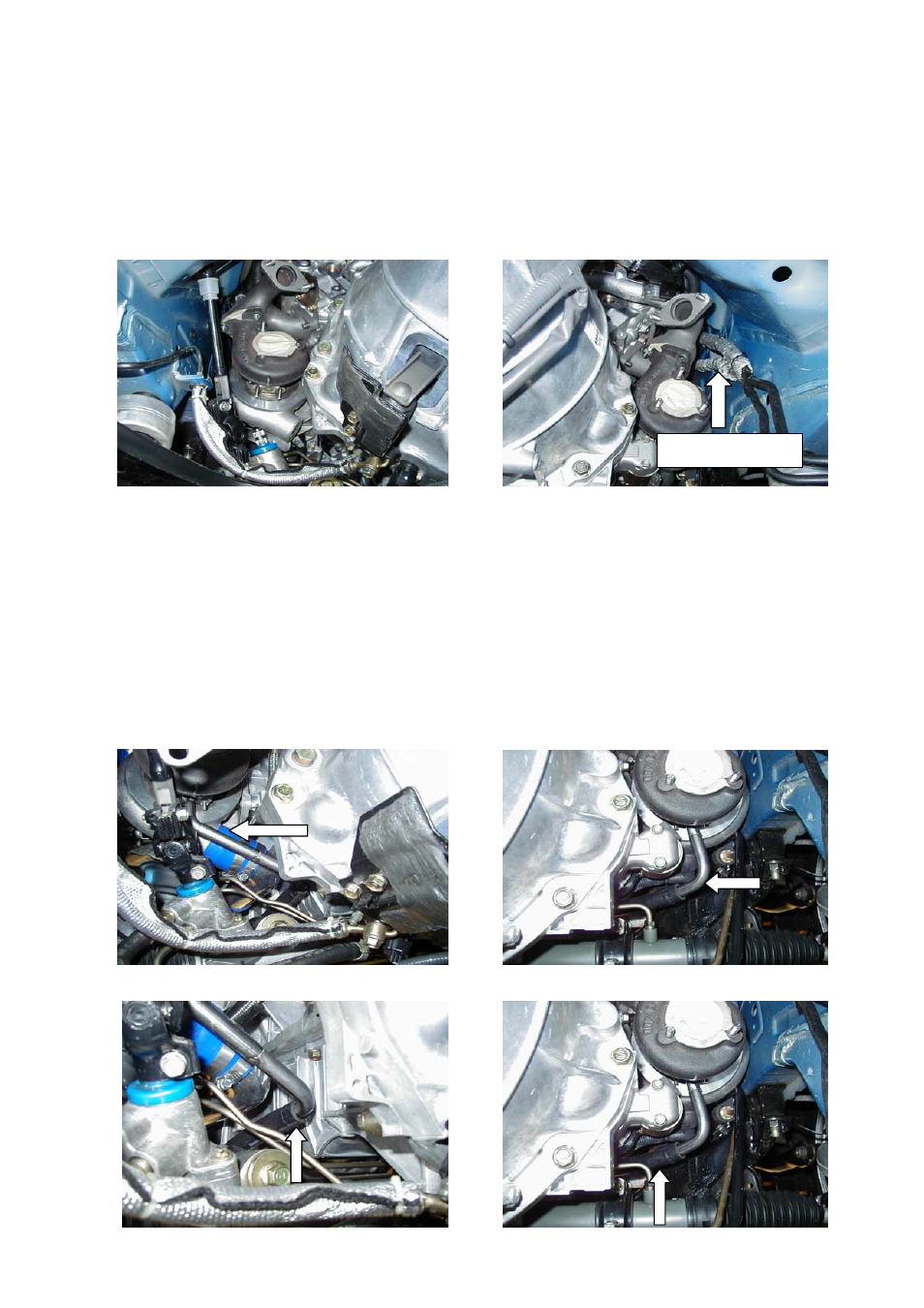

Turbocharger Installation
1. Install the turbocharger on to the exhaust manifold installed in the previous step.
* For the left side, remove the steering shaft joint before installing the turbo.
* For the right side, remove the bolts holding the starter, and lower the starter before
installing the turbo. (Part Used #1, 25, 26, 55, 71, 72,
73)
Check
• After the turbo installation, double check the fuel line clearance by the turbo and the
manifold on right side (passenger side).
2. Connect the Oil Pressure line to the turbo using the provided banjo fitting.
(Parts Used #25)
Oil Return Pipe Installation
Install the oil return pipe using provided gasket and hardware. Cut the provided 15
∅
hose to proper length and install them between the oil return pipe and the oil pan as
shown. (Part Used #27, 28,33,
40, 57, 67)
Left Side (Driver’s Side) Right Side (Passenger’s Side)
