GReddy INTERCOOLERS: Acura RSX 2002-06 / Type31V User Manual
Page 7

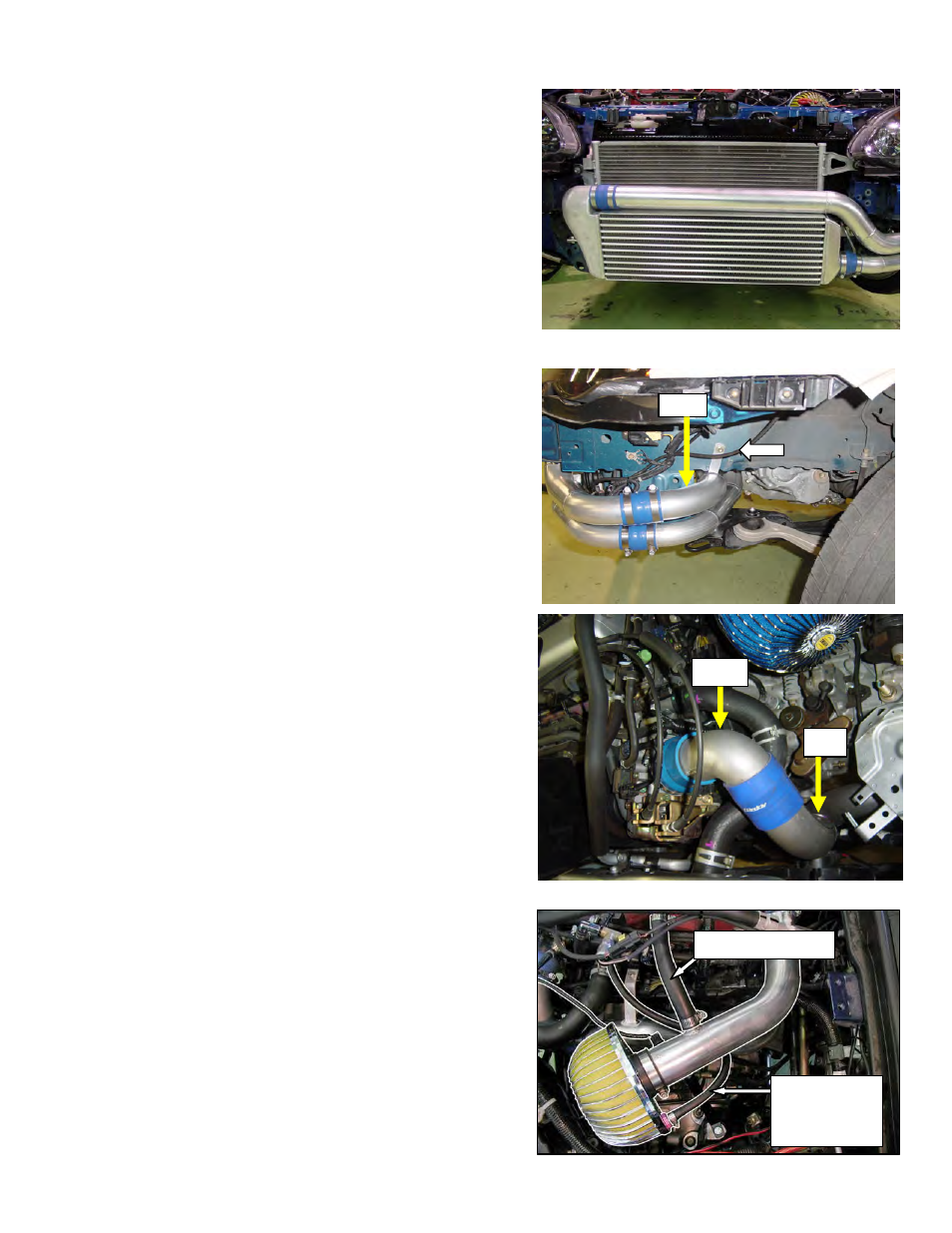

(4) Install the I3 to the intercooler outlet as
shown.
(Parts Used #: 4, 13,15)
(5) Install the Intercooler pipe I5 to the I4 as
shown. Secure the I5 to the body. Modify
the splash guard where it contacts these
pipes.
(Parts Used #: 5, 13,15)
(6) Install the Compression pipe C4 from the
turbo kit between the pipe I5 and the throttle
body as shown. Reuse the hoses and clamps
from the turbo kit.
34 Suction Pipe Installation
(1)Reinstall the Turbo Kit Suction Kit with out
the restrictor.
To air assist
Control valve
Blow by hose
C4
I5
I4
