―１１―
３ ３ ３ ３－ － － －３ ３ ３ ３ Intercooler Side Intake Tube Installation Intercooler Side Intake Tube Installation Intercooler Side Intake Tube Installation Intercooler Side Intake Tube Installation

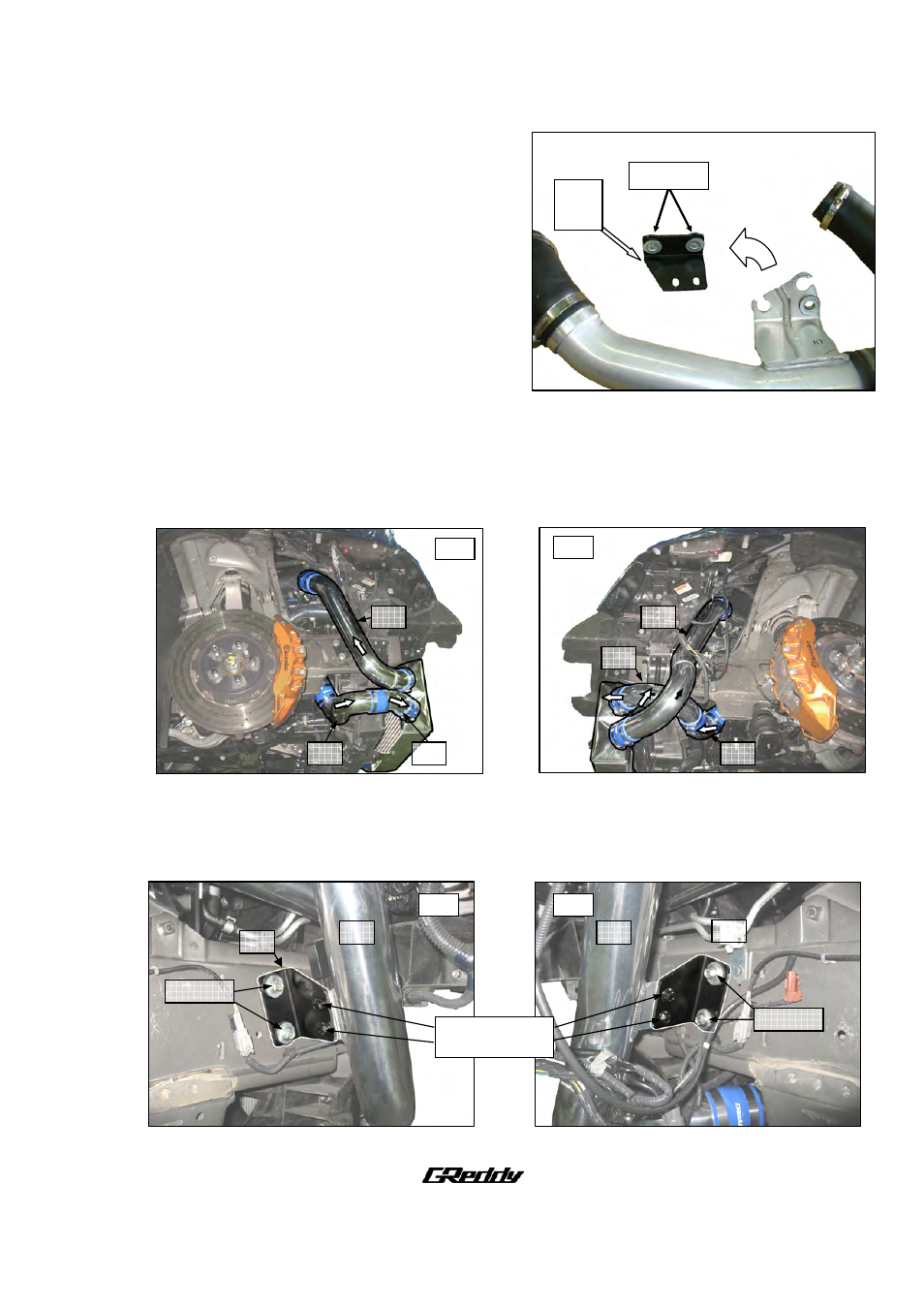

(1) Remove the rubber and steel insulated grommets from the
stock intake piping, and install them onto the intercooler
mounting brackets part # 12 & 13.
(2) Arrange the intercooler piping in the as shown in the diagram.
※ Follow the arrows on the intercooler piping for proper orientation.
※ Temporarily attach the piping loosely. Carefully make adjustments as needed.
Part №2，3，8，10，11 Part №4，5，6，10，11
(3) Temporarily tighten the Intercooler Piping Brackets to the chassis.
※ Tapered side of the bracket should be facing upwards.
Part №12，16，17 Part №13，16，17
No.12
No.13
Grommets
LH LH LH LH
IIII- -- -4 44 4
IIII- -- -3 33 3
IIII- -- -5 55 5
RH RH RH RH
IIII- -- -7 77 7
IIII- -- -1 11 1 IIII- -- -2 22 2
LH LH LH LH RH RH RH RH
IIII- -- -3 33 3 IIII- -- -7 77 7
OEM Bolts
OEM Bolts
№16 M8×20 ㎜ Bolt
№17 M8 Flange Nut
№12
№13
