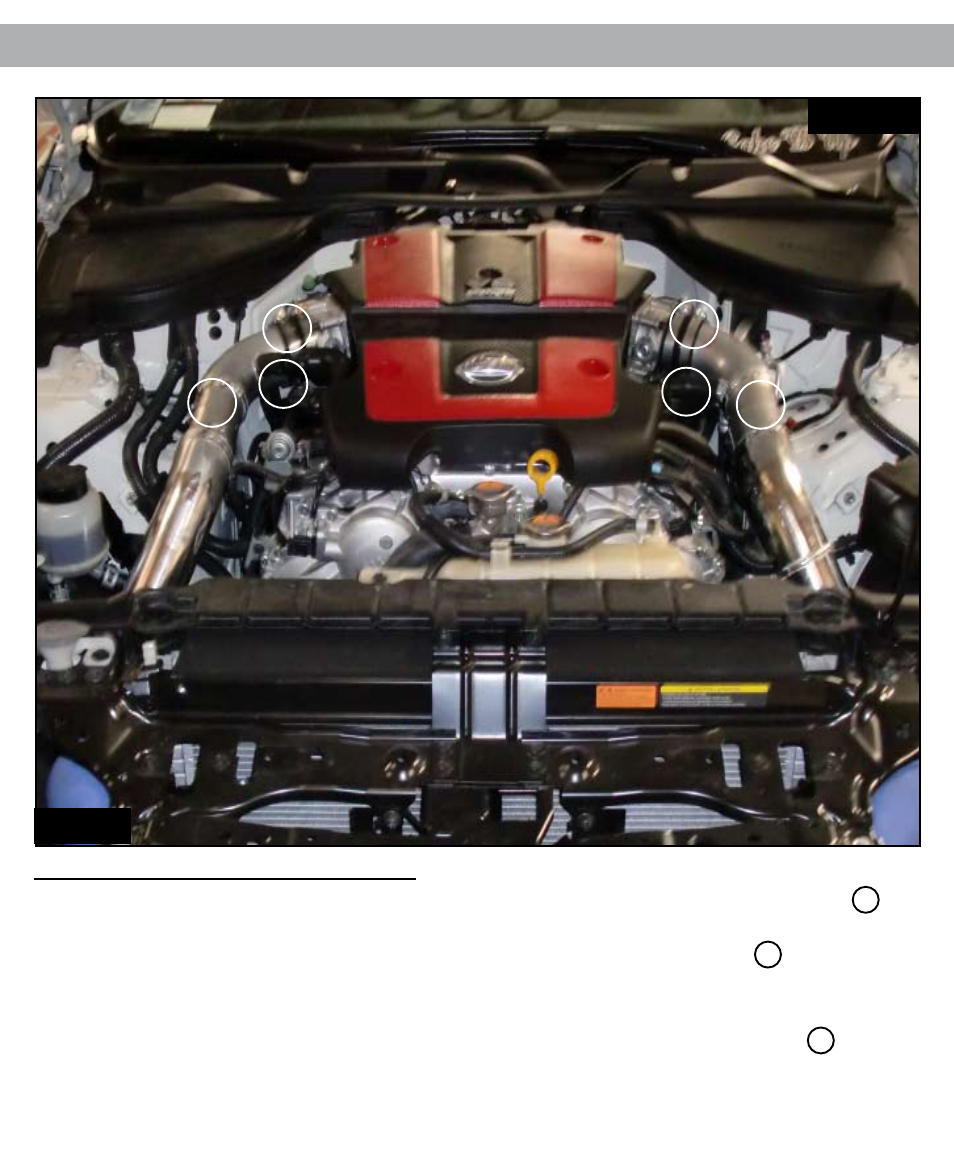

Refer to Figure F for steps 15-19
Step 15: Place the supplied straight couplings onto the throttle bodies with the clamps provided 10 .
Step 16: Install a clamp on each side of the elbow couplings going through the radiator support.
Step 17: Install the supplied crank case vent hoses on factory crank case chambers 11 .
Step 18: Remove both mass air flow sensors & gaskets from your factory intake tubes and install them
carefully onto your new upper intake tubes with the screws provided. (Do not mix up sensors)
Step 19: Install both upper intake tubes into position and attach the crank case vent hoses 12 .
Figure F
