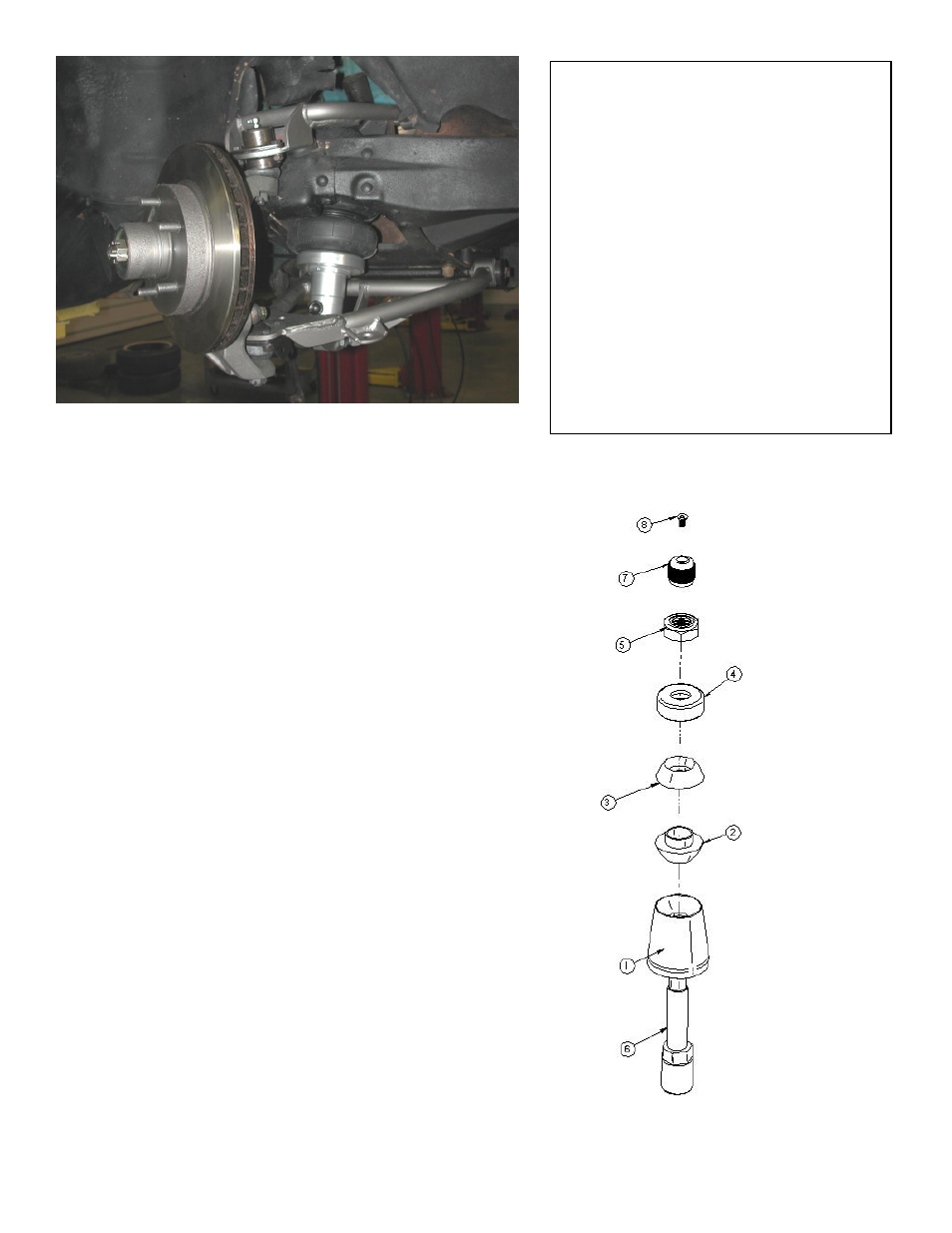

1. Stud top aluminum base

2. Delrin ball lower half

3. Delrin ball upper half

4. Aluminum cap

5. 9/16” SAE Nylok jam nut

6. Threaded stud (screwed onto shock shaft)

7. Rebound adjusting knob

8. Screw

8. Place the Shockwave up into the
coil spring pocket with the stud
protruding through the factory shock
hole. See diagram below. The
factory shock hole may need to be
drilled out to ¾”.

9. Fasten the Shockwave to the
factory lower control arm using two
3/8” x 1 ¼” bolt, flat washers and
nylok nuts. The T-bar will sit on top
of the lower arm. (This picture
shows the StrongArms)

10. Ride height will be around 90-100
psi, but will vary to driver preference.
