INSTALLATION INSTRUCTIONS

for Fiberglass Gliding Patio Doors with Applied Nailing Fin (JII104)

COMPLETE INSTALLATION - CONTINUED

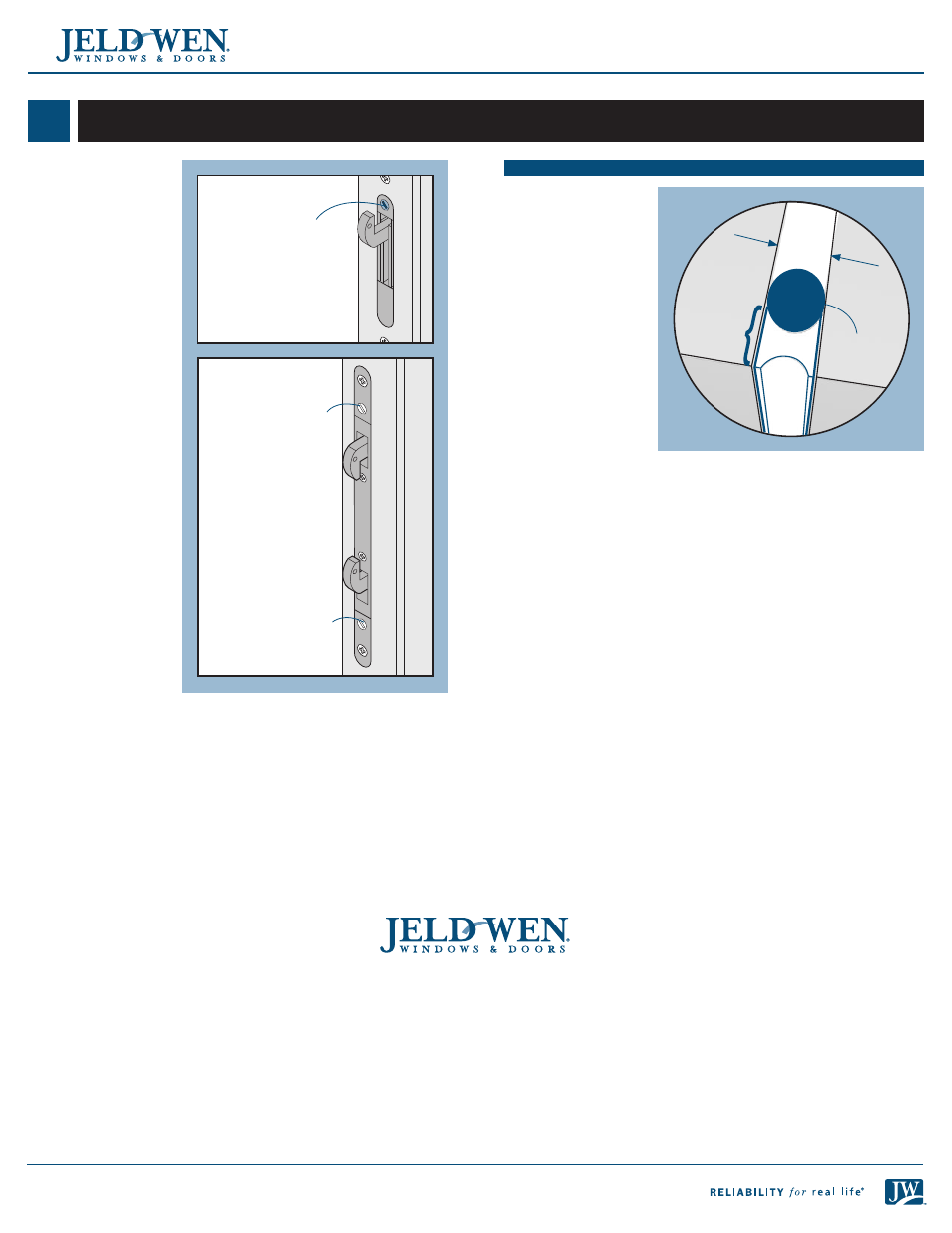

Lock Adjustment

Some locks will have a
single latch and some
will have a double
latch. Both adjust in the
same manner.
If the lock does not
properly engage the
strike plate:
• Loosen the strike

plate screws and
move up or down
until the latch
engages properly.

If the door does not
lock or is loose when
locked:
• Turn the latch

adjustment screw(s) in
1/2 turn increments:
clockwise to loosen or
counterclockwise to
tighten.

Lock hook adjustment

screw

Lock hook

adjustment

screw

Lock hook

adjustment

screw

Please visit www.jeld-wen.com for warranty, finishing instructions and care and maintenance information.

Thank you for choosing

AFTER INSTALLATION

• Install exterior wall

surface within seven
days of patio door
installation.

• Seal any gaps or

openings at end of
horizontal mull joints
with sealant.

• Insulate the void

between the rough
opening and the
frame with low
expansion foam.
Seal with backer rod
and sealant on the
exterior.

• Clean and finish all

exposed interior and
exterior parts of each panel with at least two topcoats of an exterior
grade finish. Primer alone is not a suitable barrier.

• Protect recently installed units from damage from plaster, paint, etc.

by covering the unit with plastic.

Backer rod

Gap

Sealant joint
