Sets the length of time DC brake current is “injected” into the motor.
Refer to A081 (DC Brake Level).

Defines the maximum DC brake current, in amps, applied to the
motor when Stop Mode (P037) is set to either DC Brake or Ramp.
See figure 9.5.

A080 DC Brake Time

Range:

0.0 to 90.0 sec

Default:

0.0 sec

See also:

A081

A081 DC Brake Level

Range:

0.0 to (Drive Amps x 1.8)

Default:

Amps x 0.5

See also:

P037, A080

ATTENTION: If a hazard of injury due to movement
of equipment or material exists, an auxiliary
mechanical braking device must be used.

ATTENTION: This feature should not be used with
synchronous or permanent magnet motors. Motors
may be demagnetized during braking.

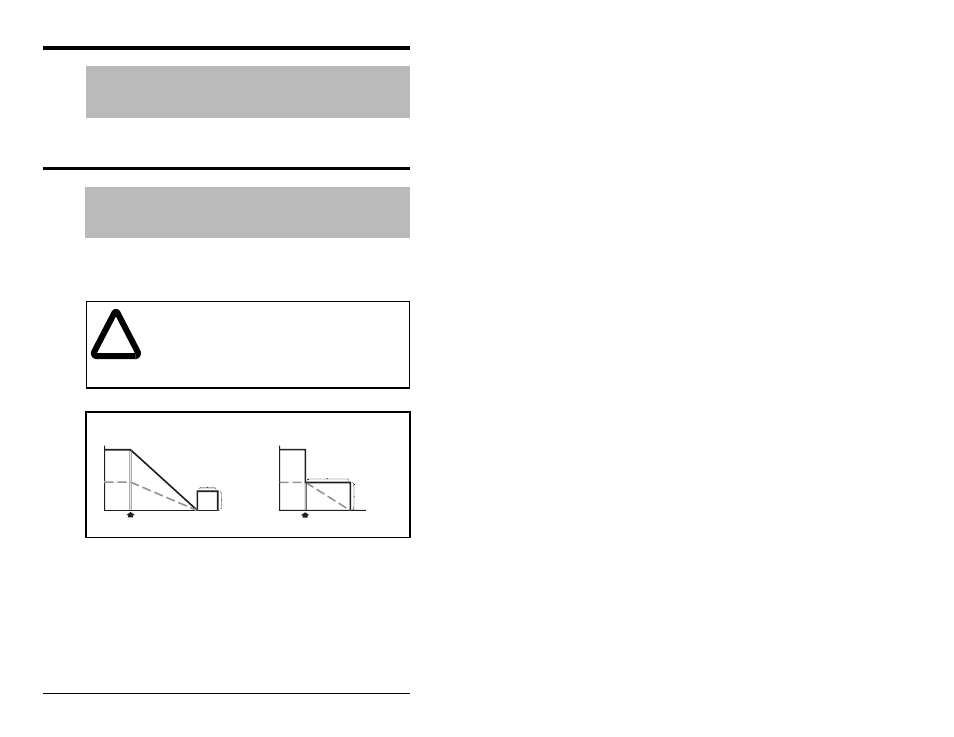

Figure 9.5 – DC Brake Level (A081)

DC Injection Braking Mode

olts/S

eed

Voltage

Time

Stop Command

Speed

[DC Brake Level]

[DC Brake Time]
