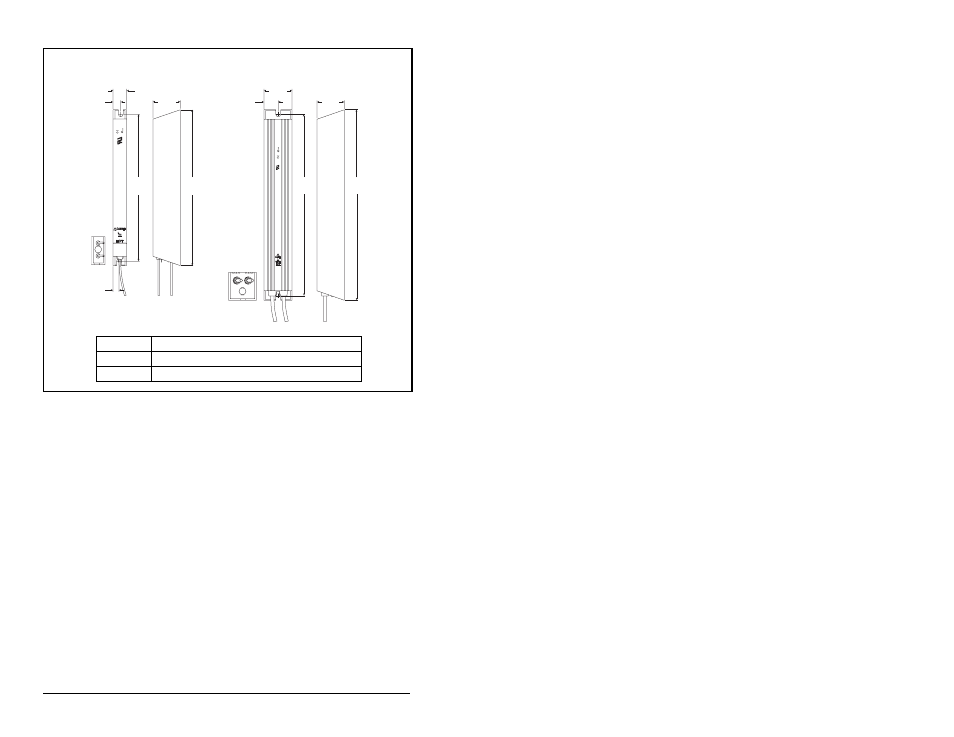

Figure E.1 – Dynamic Brake Modules: Dimensions
Frame Model Number
A AK-R2-091P500, AK-R2-047P500, AK-R2-360P500
B AK-R2-030P1K2, AK-R2-120P1K2
335.0
(13.19)
60.0
(2.36)
30.0
(1.18)
17.0
(0.67)
59.0
(2.32)
13.0
(0.51)
405.0
(15.94)
386.0
(15.20)
316.0
(12.44)
61.0
(2.40)
31.0
(1.22)
ROCKWELL AUTOMATION
C
U S
SURFACES MAY BE
ROCKWELL AUTOMATION
C
U S
Frame A Frame B
