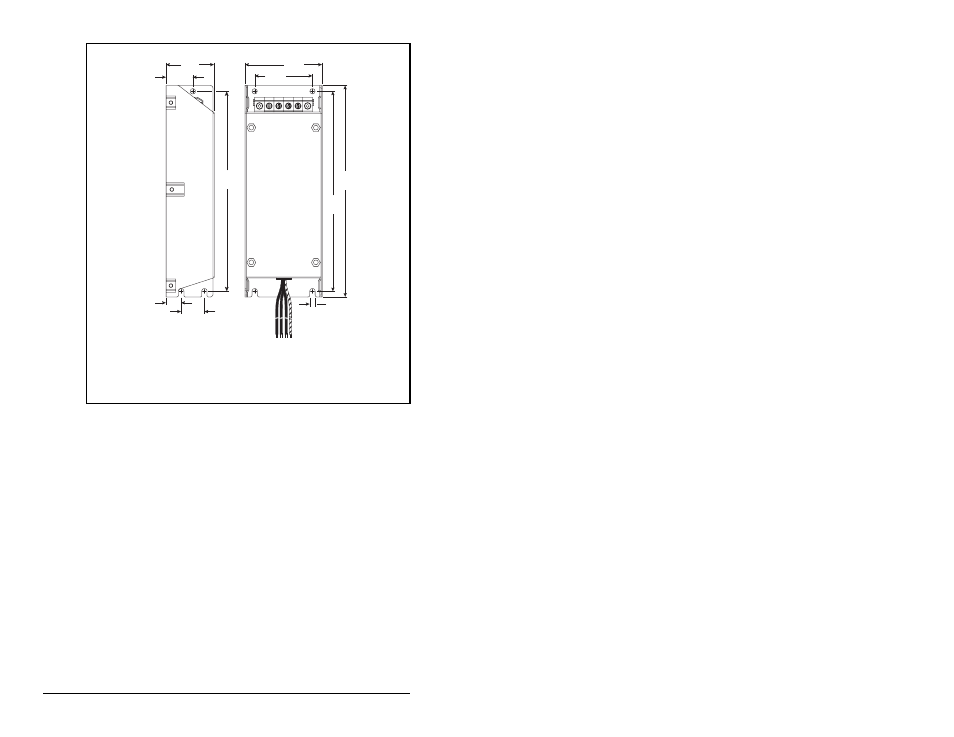

Figure E.2 – Frame A EMC Line Filters: Dimensions
Dimensions are in mm and (in).
Model Numbers: 6MDF-9P5AS, -AL; 6MDF-5P7AS, -AL;
5.5 (0.22)
17.8
(0.70)
24
(0.94)
60
(2.36)
80
(3.15)
50
(1.97)
29.8
(1.17)
220
(8.66)
208
(8.19)
208
(8.19)
