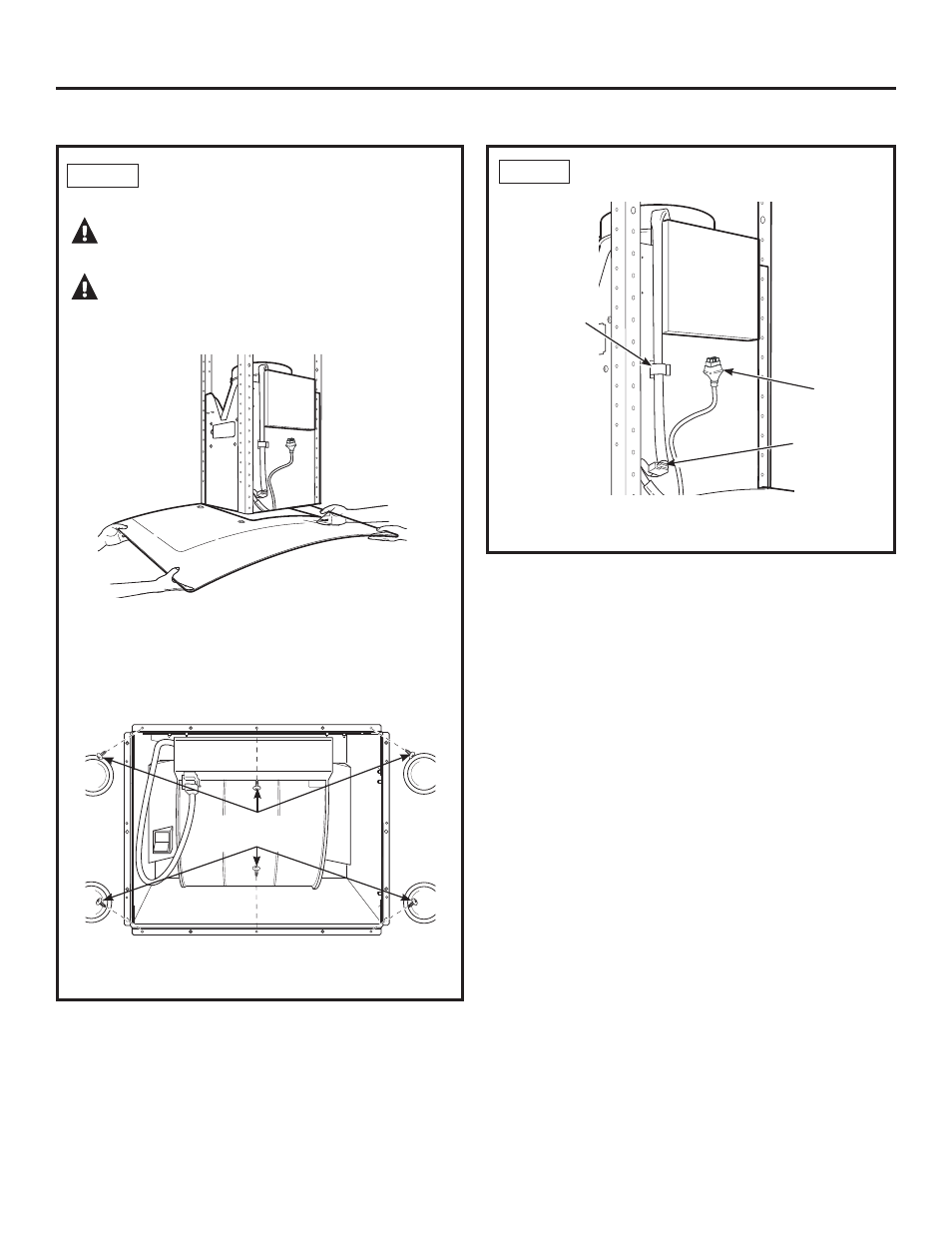

STEP 7 CONNECT CABLES
• Join the two cable connectors at the front of the
hood. Secure the cables behind the retainer clip.
Installation Instructions
STEP 6 MOUNT THE HOOD
ONTO THE SUPPORT
WARNING:
Two people are required to
lift and position the hood onto the support.
AVERTISSEMENT :
Il faut deux
personnes pour lever et mettre en place a hotte sur
le support de montage.
• Lift the hood to the bottom of the support,
engaging the keyhole slots to the 4 mounting
screws.
• Tighten the 4 mounting screws.
• Install 6 additional screws as shown.
Install
6 screws
Retainer
clip
To
lights
To control
panel
