10

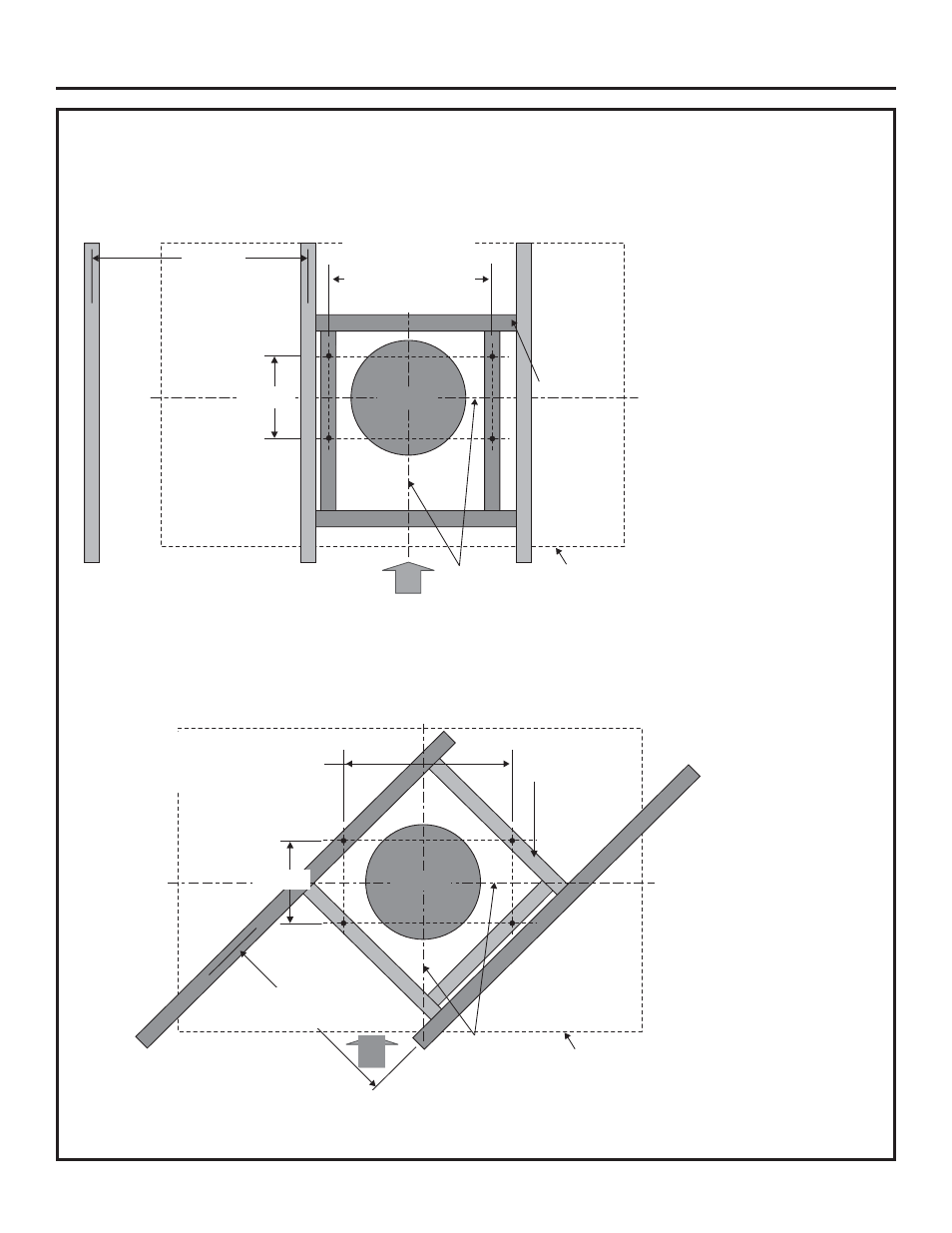

Top view – ceiling joists run perpendicular to front of hood
Top view – ceiling joists at angle to front of hood
Installation Preparation
CONSTRUCT CEILING SUPPORT
CONTINUED
10-1/16" install
cross-framing
symmetrically
over duct/cooktop
centerline
16" joist
spacing
7-1/16" 8" duct
Front
of
hood
2x4 cross
framing
Cooktop
outline
Align duct
to center
of cooktop
10-1/16" install cross-framing
symmetrically over duct/
cooktop centerline
16" joist
spacing
7-1/16" 8" duct
Front
of
hood
2x4 cross
framing
Cooktop
outline
Align duct
to center
of cooktop
EXAMPLE B
EXAMPLE C
