English 47
3 Replacing Hardware Components
Replacing the System Board

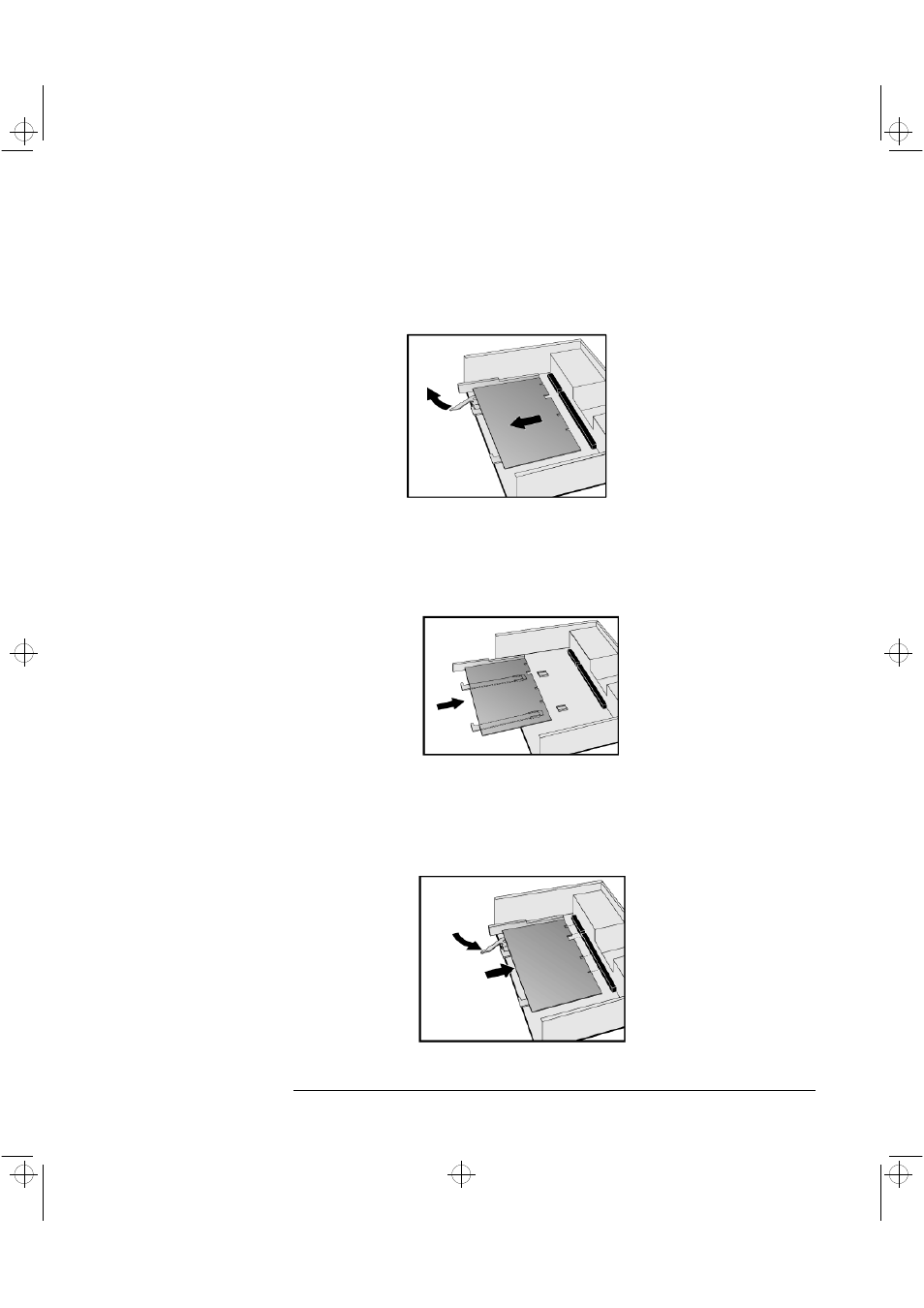

5 Remove the old system board. For the minitower, first lift the lever
to release it before pulling it open.
6 First ensure the lever is open, then carefully slide in the new system
board, aligning the rails and the rear connector bracket correctly.
7 Pushing on the lever and on the system board edge, slide the system
board firmly into place. Ensure the connectors are well aligned and
fully engaged.
