9 HP StorageWorks Disk System 2120
Eng
lish

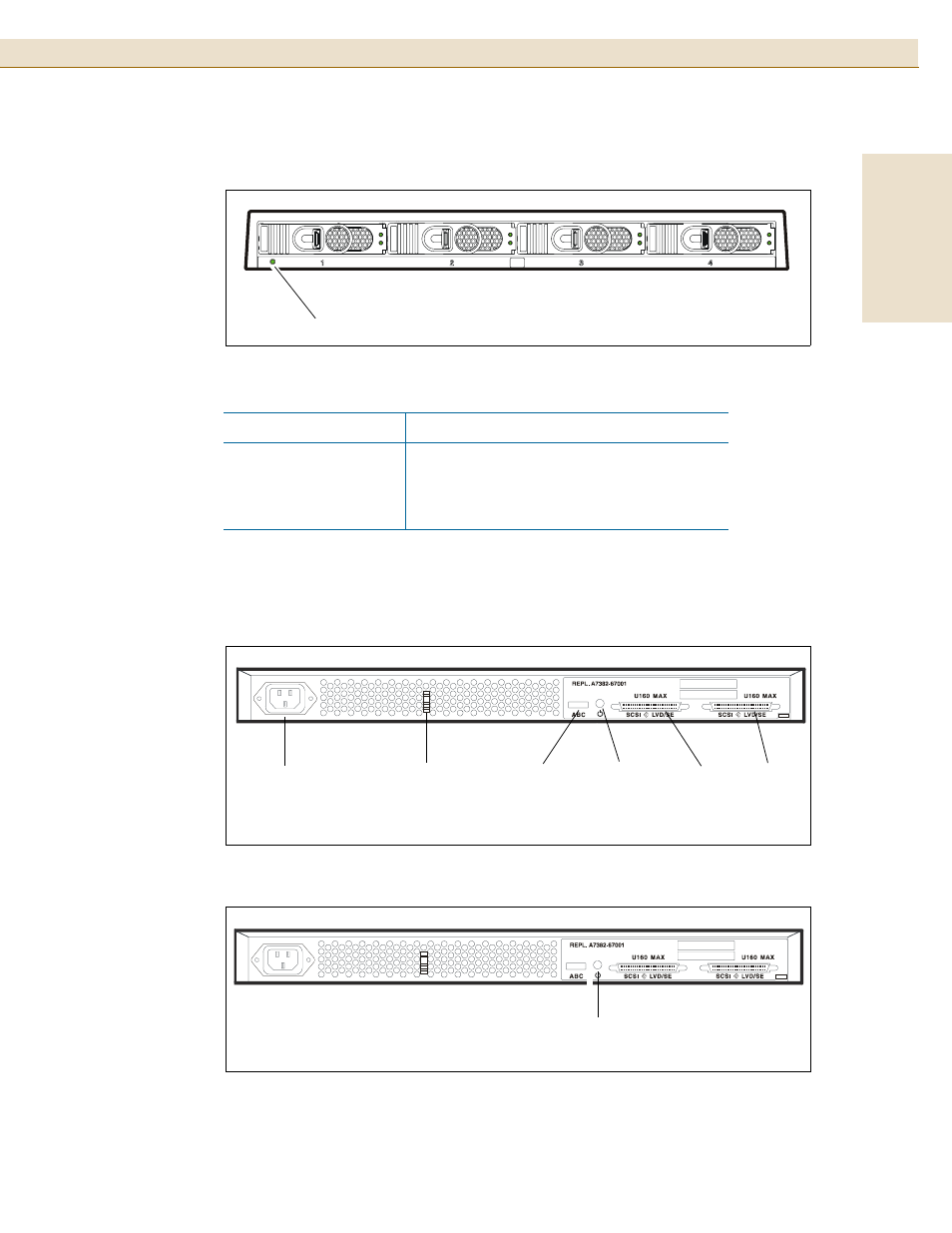

FIGURE 2 System Power LED
TABLE 2 System Power LED Activity Definitions
Rear Panel
FIGURE 3 Rear View of the Disk System
FIGURE 4 Power Button
With the power button in the “ON” position, power is supplied to the disk system.
LED Activity Indication
Blinking Malfunction - either a fan is not operating
properly or internal voltage is too low.
On solid Disk system is operating properly.
Off Disk system is off.
System
Power LED
Power
Button
AC
Power
Connector
LVD/SE
SCSI
Port
SCSI
Address
Switch
LVD/SE
SCSI
Port
Power
Cord
Clip
Power
Button
